ELTRA CS-800 User Manual

97
Fig. 51: Furnace
• You should ensure that the shaft (1) is securely fastened to the base (2).
– If not, hold the base (2) securely and tighten the shaft (1)
(engineers wrench size 17).
In order to adjust the cone, the screws (4) should be loosened so that the cone (3)
moves horizontally on the base (2).
• Close the furnace (with the lift upwards).
• Tighten the screws (4).
– The cone is now positioned correctly.
• The screws (7), (5), (6), must now be well tightened in this order.
• The screws (8) should be properly fastened (with a wrench).
• The screws (9) should only be tightened by hand.
Pos: 7.23 /0 020 Über sc hrif ten /ELT RA 1.1 Über sc hri ften /11 Lin ear isati on ELTR A @ 6 \mod_1369382276949_9.docx @ 42052 @ 322332 @ 1
4.7 49BLinearisation
Pos: 7.24 /0 010 ELTR A/ 0015 s ervic e_ins tr ucti ons/C S-8 00_ Ser vic e/00 20 Eins tell ung en, Tes ts u nd F un ktio ns besc hrei bu ng/0 270 M o dul Line ari sati on @ 6 \mod_1377688631703_9.docx @ 47011 @ 42244 @ 1
See software helps.
Pos: 7.25 /0 020 Über sc hrif ten /ELT RA 1.1 Über sc hri ften /11 Bal anc e pr ogra mming ELT RA @ 6\ mod_1369384797393_9.docx @ 42074 @ 2422242 @ 1
4.8 50BBalance programming
Pos: 7.26 /0 010 ELTR A/ 0015 s ervic e_i nstr uc tio ns/C S-800 _S ervic e/ 002 0 Ei nst ell unge n, T ests u nd F unk tio nsbe schr eib ung /0 275 M odul B ala nce pr ogramming @ 6\mod_1377688631889_9.docx @ 47023 @ 4 @ 1
Basic settings for all types of balances:
– 9600 Baud
– No parity
– Send continuously
Pos: 7.27 /0 020 Über sc hrif ten /ELT RA 1.1 Über sc hri ften /11 I n ducti on g en era tor c ontr ol ELTR A @ 6\mod_1369387490836_9.docx @ 42096 @ 322222 @ 1
4.9 51BInduction generator control
Pos: 7.28 /0 010 ELTR A/ 0015 s ervic e_i nstr uc tio ns/C S-800 _S ervic e/ 002 0 Ei nst ell unge n, T ests u nd F unk tio nsbe schr eib ung /0 280 M odul In duc ti on g ener ator co ntr ol @ 6\mod_1377688632109_9.docx @ 47035 @ 14 @ 1

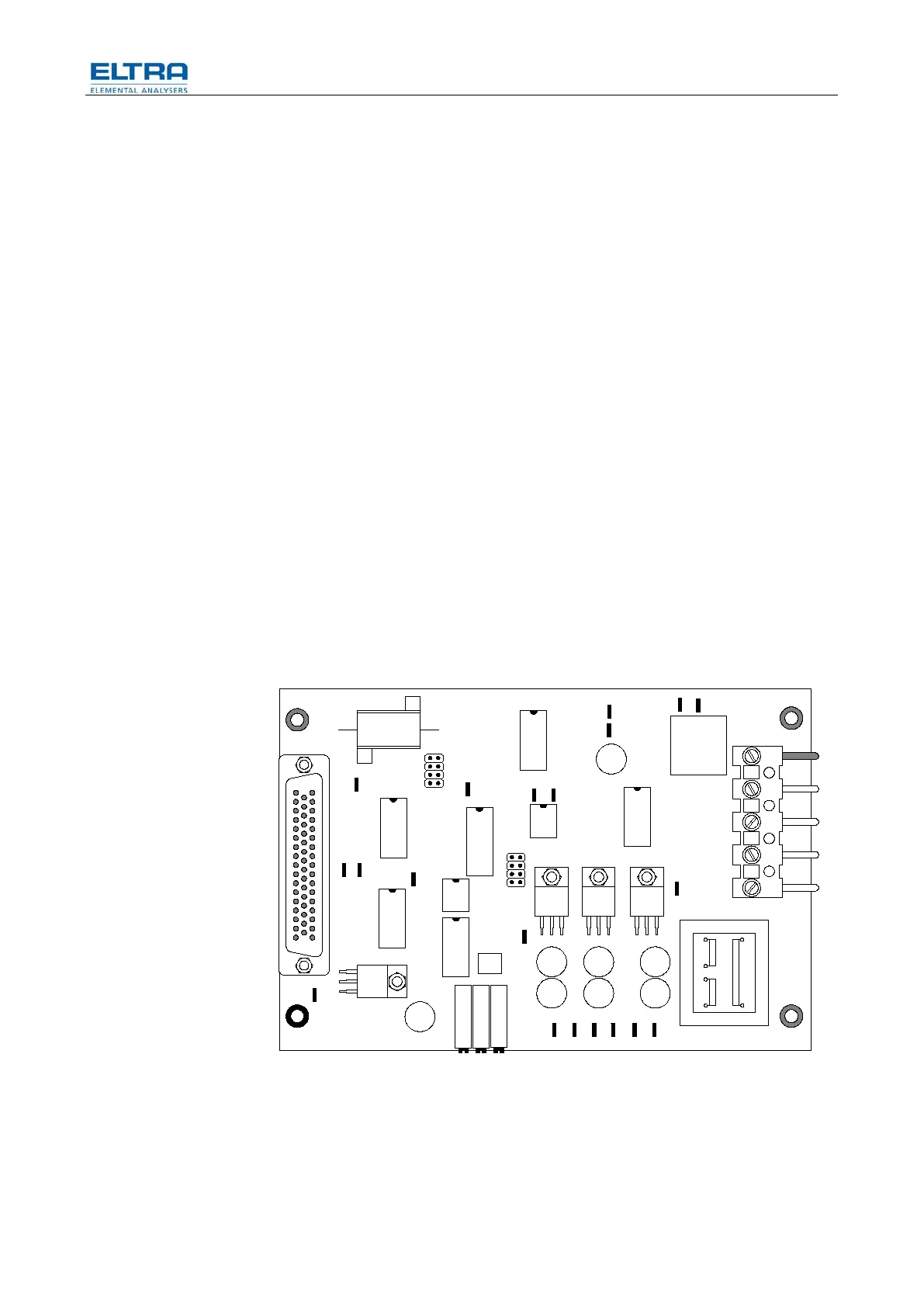

Fig. 52: HF42
TP15 TP16 TP17 TP18
TP19
+24V
-12V
+5V
+12V
+20V
GND
TP20
HF42
12016
P1
P3
P2
TP1
TP2
TP10
TP11
TP13
TP14
TP8
TP7
TP9
TP12
TP6
TP3
J3
J2
TP5
TP4
