ELTRA CS-800 User Manual

Service
103
Pos: 9.6 / 00 20 Ü bers chr ift en/E LTR A 1.1 Ü bers chr ift en/ 11 G en eral tes t poi nts ELT R A @ 6 \mod_1373448456679_9.docx @ 43494 @ 4222 @ 1
5.3 54BGeneral test points
Pos: 9.7 / 00 10 ELTR A/0 015 s er vice _i nstr ucti ons /CS- 800_Service/0025 Service/039515 Modul General Te st Poi nts @ 7\mod_1381924872474_9.docx @ 49938 @ 33221223 @ 1

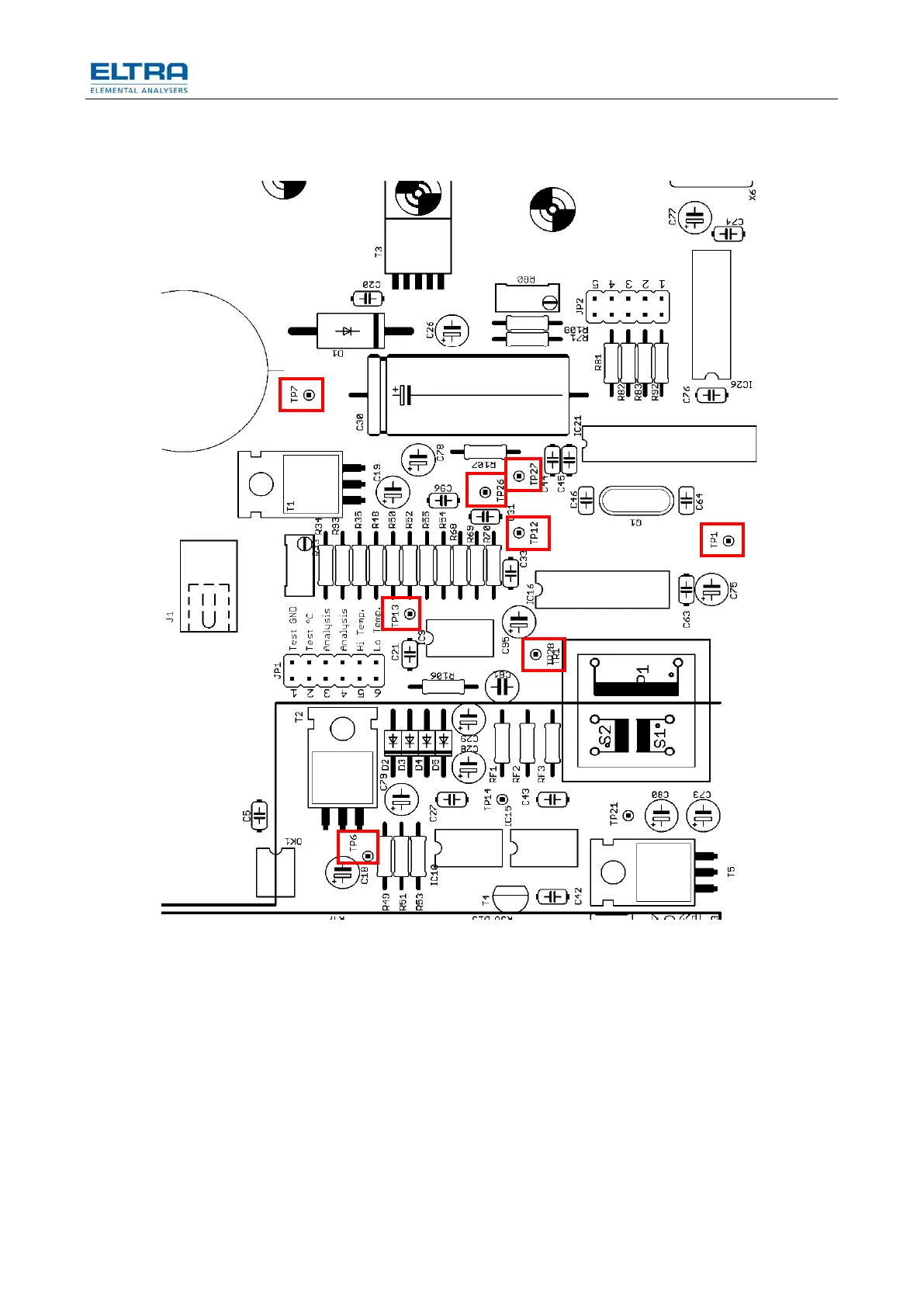

Fig. 35: Mainboard (Cut-out) IR-cell – general test points)
5.3.1
114BSupply voltages and thermostatic control circuit
TP 1: GND
TP 7: IR source voltage
TP 12: + 5V supply
TP 13: Heating transistors control voltage
TP 26: IR temperature actual value
TP 27: +24V supply
TP 28: IR temperature set point
5.3.2
115BSupply voltages for IR signal processing circuit
TP 6: +12V
