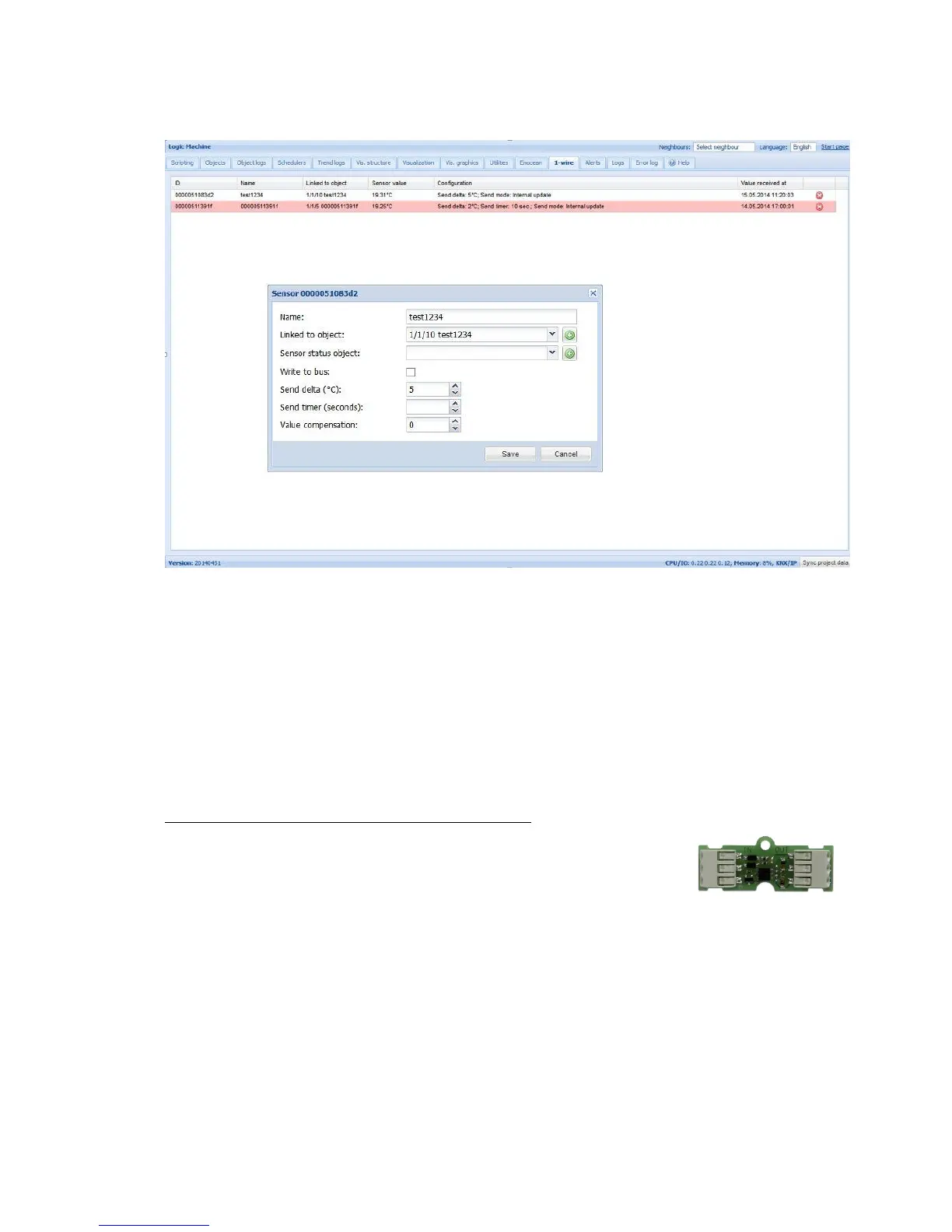

Once 1-wire sensors are connected to the 1-wire interface of LogicMachine5
 Name  name of the 1wire device
 Linked to object  mapped KNX object
 Sensor status object  mapped KNX status object
 Write to bus  define either to write telegram in KNX bus on read value
 Send delta – define either to send delta of temperature sensor
 Send timer (seconds)  define interval in which send the measurement
 Value compensation  compensate value of the reading of temperature
1-wire PUZZLE - 2 Universal Digital Inputs / Outputs
With PUZZLE you can interconnect regular binary sensors with 1-wire
fieldbus or use the device as digital output to control relays/contactors.
By pairing the PUZZLE with LogicMachine Ambient, you can finish the installation in very cost-
effective way. Up to 64 PUZZLE can be connected to one 1-wire port of LogicMachine and all
objects can be then managed from any of KNX, Modbus, BACnet etc. devices.
