EMC VNX Series Installation Guide

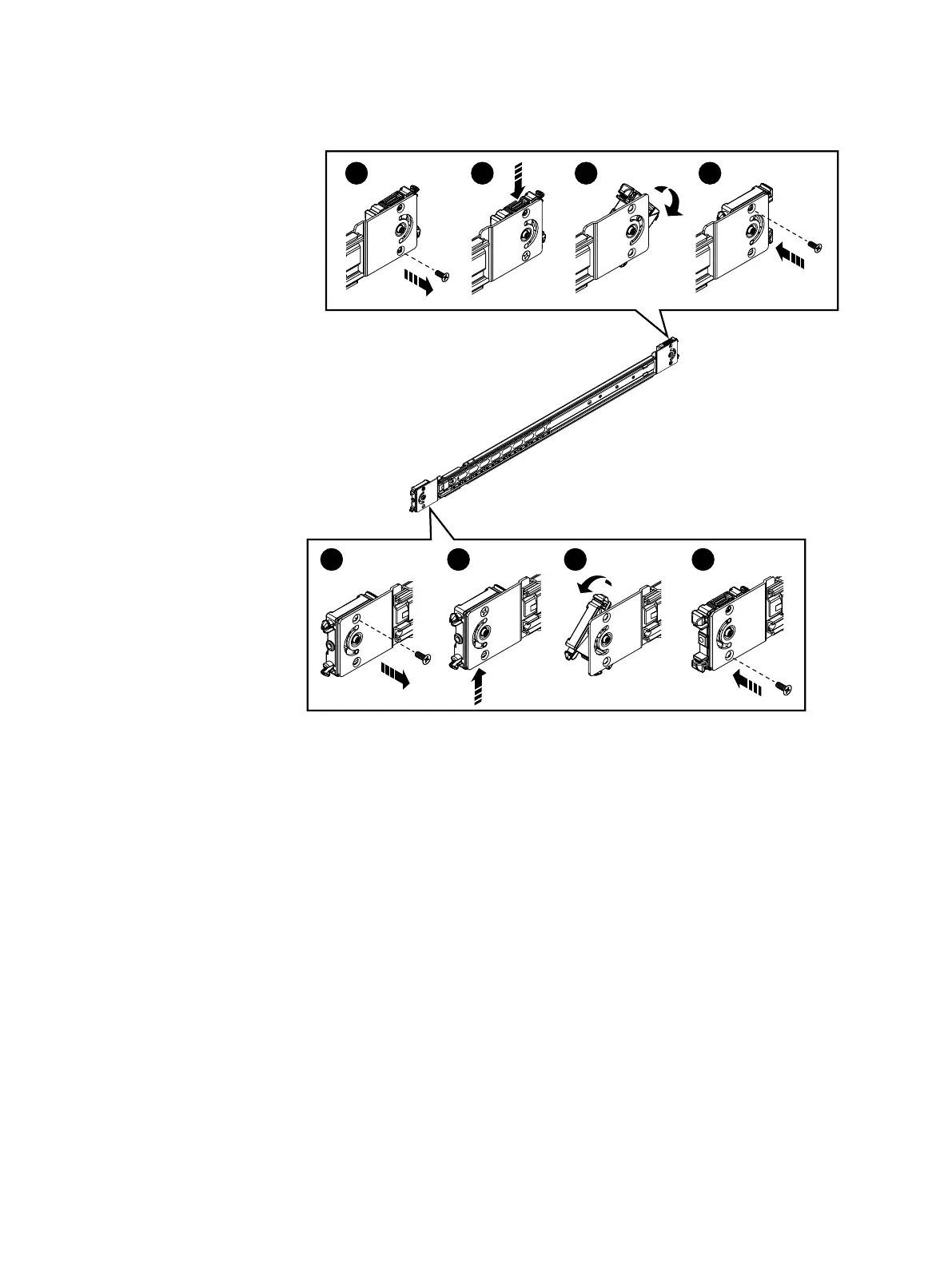

Figure 8 Switching from round rail alignment posts to square alignment posts
CL4951
1 32 4
1 32 4
Installing the slide rails in the cabinet
The universal rail assemblies for this server support cabinets in which the front and rear
mounting channels are 24 inches to 34 inches apart. Each assembly contains a right and
a left slide rail.
Install each slide rail in the cabinet using the procedure that follows.
Procedure
1. From the front of the cabinet, align rail alignment posts with the rear channel holes for
the selected 1 U (1.75 in) cabinet space for the server, and insert the alignment posts
securely into the holes (Figure 9 on page 27).
An audible click indicates that the connection is secure.
Assemble components in your cabinet
26 EMC VNX Series VNX5600 Unified Installation Guide

EMC VNX Series Specifications

General

Management Interface	Unisphere
Drive Support	SAS, NL-SAS, Flash (SSD)
RAID Levels	RAID 0, 1, 3, 5, 6
Protocols Supported	Fibre Channel, iSCSI, NFS, CIFS
Data Services	Deduplication, Compression, Snapshots, Replication
Processor	Intel Xeon
Operating System	VNX Operating Environment (block), VNX File Operating Environment (file)
