For size 1 to 6 standard drives, size 1 to 3 E12/54 drives, and size 1 to 3 E12/E66 drives, the continuous current ratings given are for maximum 40°C
(104°F),1000m altitude and 3.0kHz switching. For size 4 to 6 E12/54 drives, the continuous current ratings given are for maximum 35°C
(95°F),1000m altitude and 3.0kHz switching. For further information refer to section 12.1.1 Power and current ratings (Derating for switching
frequency and temperature) on page 228.

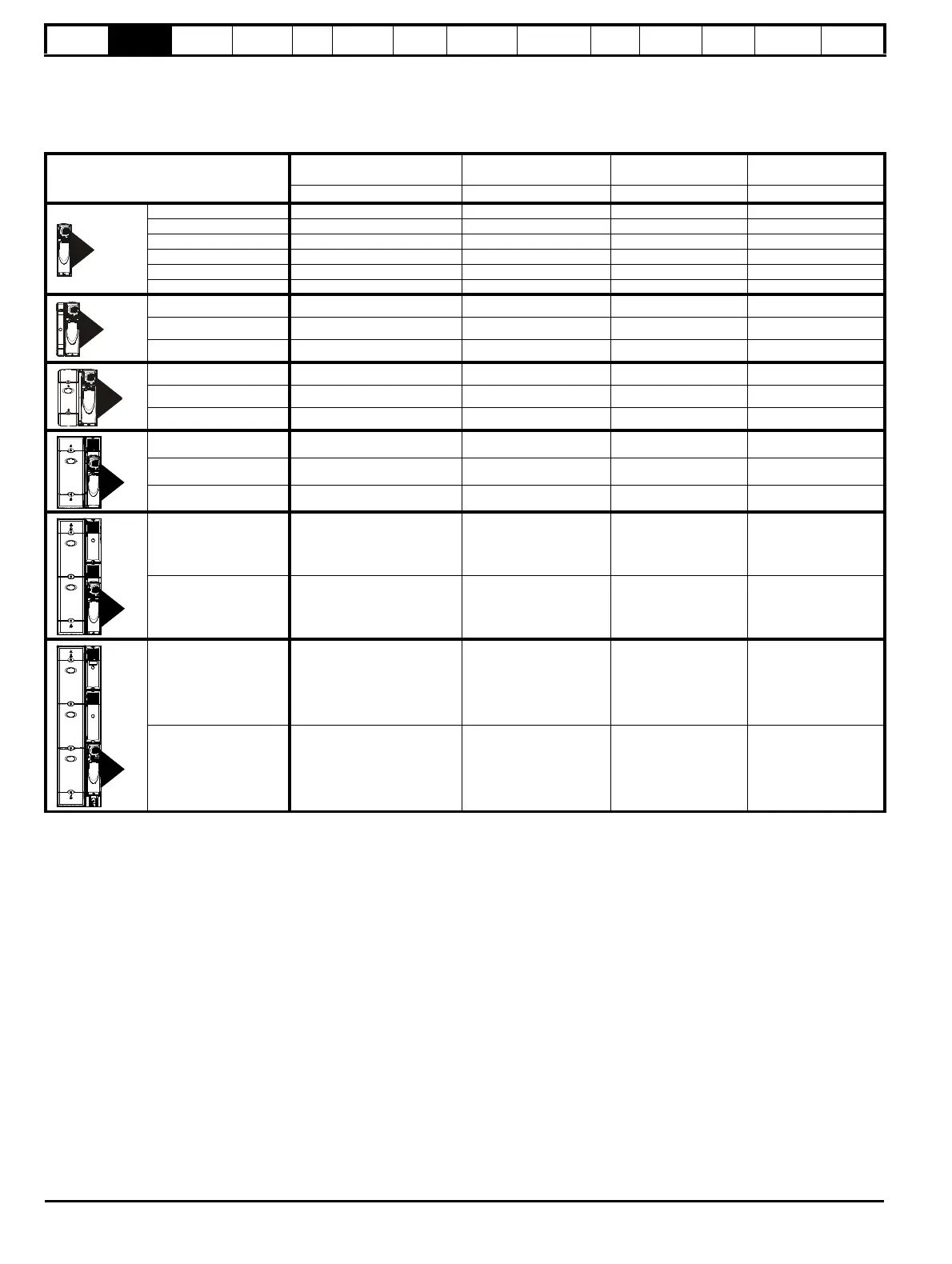

Table 2-2 400V Drive ratings (380V to 480V ±10%)
Model
Maximum continuous
output current
Nominal power
at 400V
Motor power
at 460V
Peak current
AkWhpA
1401 2.8 1.1 1.5 3.0
1402 3.8 1.5 2.0 4.1
1403 5.0 2.2 3.0 5.5
1404 6.9 3.0 5.0 7.5
1405 8.8 4.0 5.0 9.6
1406 11 5.5 7.5 12.1
2401 15.3 7.5 10 16.8
2402 21 11 15 23
2403 29 15 20 31
3401 35 18.5 25 38
3402 43 22 30 47
3403 56 30 40 61
4401 68 37 50 74
4402 83 45 60 91
4403 104 55 75 114
5401 138 75 100 151
5402 168 90 125 184
6401 205 110 150 225
6402 236 132 200 259
1
2
3
4
55
56
