Safety
Information
Product
Information
Mechanical
Installation
Electrical
Installation
Getting
Started
Basic
parameters
Running
the motor
Optimization
SMARTCARD
operation
PC tools
Advanced
parameters
Technical
Data
Diagnostics
UL Listing
Information
Affinity User Guide 209
Issue Number: 5 www.controltechniques.com

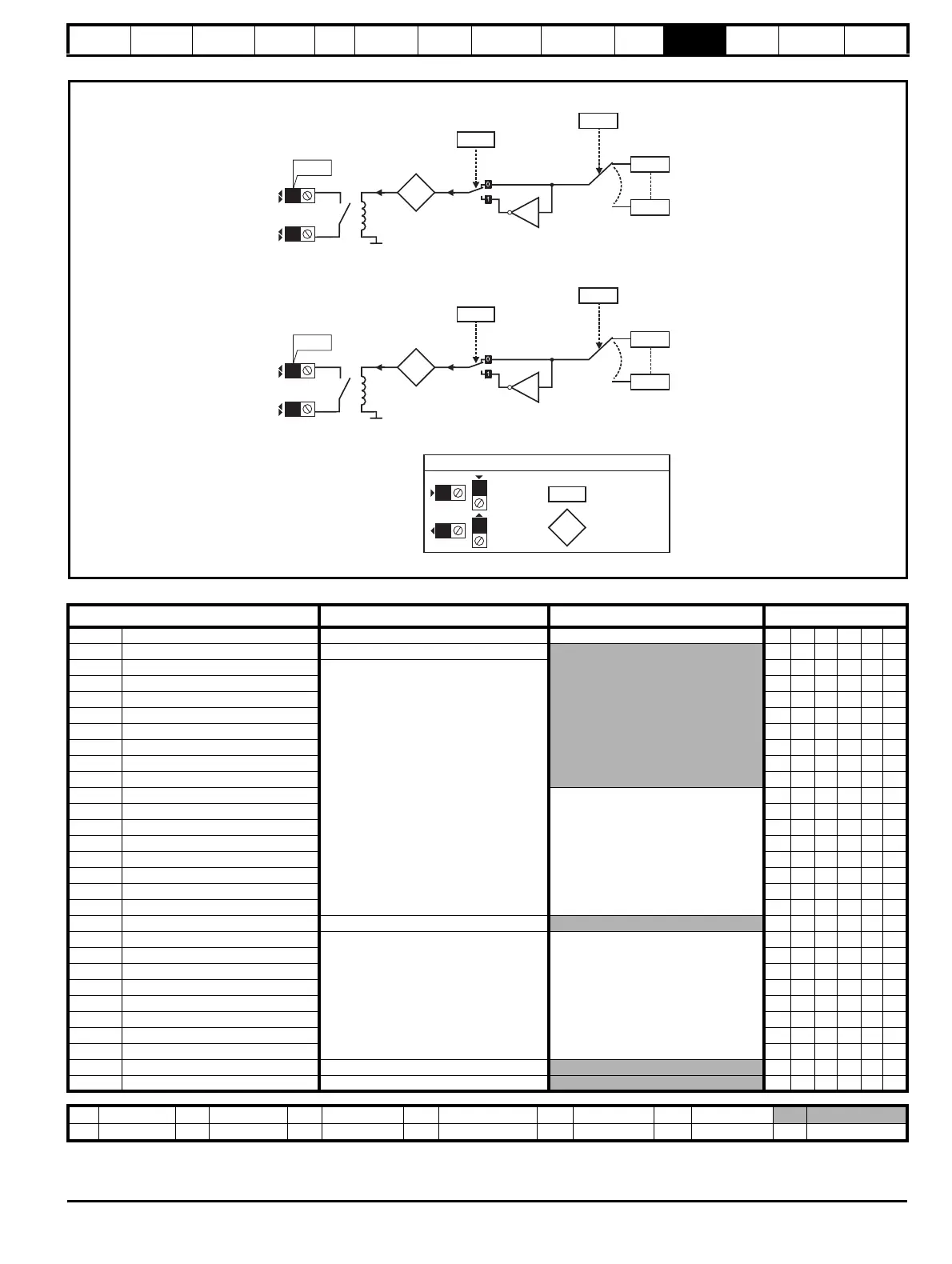

Figure 11-40 SM-I/O 120V relay diagram
SM-I/O 120V parameters
*See trip SLX.Er,
Automation (I/O Expansion) module category on page 257
.
Relay 2
x.28
??.??
x.18
Relay 2
invert
??.??
0V
x.08
Relay 2
state
Relay 2
source
11
0.XX
0.XX
Key
Read-write (RW)
parameter
Read-only (RO)
parameter
Input
terminals
Output
terminals
X
X
X
X
The parameters are all shown at their default settings
x(-1)
Relay 1
x.27
??.??
x.17
Relay 1
invert
??.??
0V
x.07
Relay 1
state
Relay 1
source
11
x(-1)
Any
parameter
Any
parameter
10
12
Parameter
Range(
Ú) Default(Ö)
Type
x.01 Solutions Module ID 0 to 599 206 RO Uni PT US
x.02 Solutions Module software version 0.00 to 99.99
RO Uni NC PT
x.03 T4 digital input 3 state
OFF (0) or On (1)
RO Bit NC PT
x.04 T5 digital input 4 state RO Bit NC PT
x.05 T7 digital input 5 state RO Bit NC PT
x.06 T8 digital input 6 state RO Bit NC PT
x.07 Relay 1 state RO Bit NC PT
x.08 Relay 2 state RO Bit NC PT
x.09 T1 digital input 1 state RO Bit NC PT
x.10 T2 digital input 2 state RO Bit NC PT
x.11 T1 digital input 1 invert
OFF (0)
RW Bit US
x.12 T2 digital input 2 invert RW Bit US
x.13 T4 digital input 3 invert RW Bit US
x.14 T5 digital input 4 invert RW Bit US
x.15 T7 digital input 5 invert RW Bit US
x.16 T8 digital input 6 invert RW Bit US
x.17 Relay 1 invert RW Bit US
x.18 Relay 2 invert RW Bit US
x.20 Digital I/O read word 0 to 255
RO Uni NC PT
x.21 T1 digital input 1 destination
Pr 0.00 to Pr 50.99 Pr 0.00
RW Uni DE PT US
x.22 T2 digital input 2 destination RW Uni DE PT US
x.23 T4 digital input 3 destination RW Uni DE PT US
x.24 T5 digital input 4 destination RW Uni DE PT US
x.25 T7 digital input 5 destination RW Uni DE PT US
x.26 T8 digital input 6 destination RW Uni DE PT US
x.27 Relay 1 source RW Uni PT US
x.28 Relay 2 source RW Uni PT US
x.50 Solutions Module error status* 0 to 255
RO Uni NC PT
x.51
Solutions Module software sub-version
0 to 99 RO Uni NC PT
RW Read / Write RO Read only Uni Unipolar Bi Bi-polar Bit Bit parameter Txt Text string
FI Filtered DE Destination NC Not copied RA Rating dependent PT Protected US User save PS Power down save
