3.9 External EMC filter for standard drives
Table 3-9 Drive EMC filter details (size 1 to 6)
The external EMC filters for sizes 1 to 3 can be footprint or bookcase mounted, see Figure 3-50 and Figure 3-51. The external EMC filters for sizes 4
to 6 are designed to be mounted above the drive, as shown in Figure 3-52.
Mount the external EMC filter following the guidelines in section 4.11.5 Compliance with generic emission standards on page 84.
The EMC filter cannot be footprint mounted when the conduit box is used.
In order to provide our customers with a degree of flexibility, external EMC filters have been sourced from two manufacturers: Schaffner & Epcos.
Filter details for each drive rating are provided in the tables below. Both the Schaffner and Epcos filters meet the same specifications.
Drive
Schaffner IP20 Epcos IP20 Schaffner IP54
CT part no. Weight CT part no. Weight CT part no. Weight
BA1201 to BA1202 4200-6118
1.4 kg (3.1 lb)
4200-6121
2.1 kg (4.6 lb)
4200-6125 2.25 kg (5.0lb)
BA1203 to BA1204 4200-6119 4200-6120 4200-6124 2.3 kg (5.1lb)
BA1401 to BA1404 4200-6118
1.4 kg (3.1 lb)
4200-6121
2.1 kg (4.6 lb)
4200-6125 2.25 kg (5.0 lb)
BA1405 to BA1406 4200-6119 4200-6120 4200-6124 2.3 kg (5.1 lb)
BA2201 to BA2203 4200-6210 2.0 kg (4.4 lb) 4200-6211 3.3 kg (7.3 lb) 4200-6218 4.5 kg (9.9 lb)
BA2401 to BA2403 4200-6210 2.0 kg (4.4 lb) 4200-6211 3.3 kg (7.3 lb) 4200-6218 4.5 kg (9.9 lb)
BA3201 to BA3202 4200-6307 3.5 kg (7.7 lb) 4200-6306 5.1 kg (11.2 lb) 4200-6319 9.4 kg (20.7 lb)
BA4201 to BA4203 4200-6406 4.0 kg (8.8 lb) 4200-6405 7.8 kg (17.2 lb)
BA3401 to BA3403 4200-6305
3.5 kg (7.7 lb)
4200-6306
5.1 kg (11.2 lb)
4200-6318 8.75 kg (19.3 lb)
BA3501 to BA3507 4200-6309 4200-6308 4200-6320 8.75 kg (19.3 lb)
BA4401 to BA4403 4200-6406 4.0 kg (8.8 lb) 4200-6405 7.8 kg (17.2 lb)
BA4601 to BA4606 4200-6408 3.8 kg (8.4 lb) 4200-6407 8.0 kg (17.6 lb)
BA5401 to BA5402 4200-6503 6.8 kg (15.0 lb) 4200-6501 12.0 kg (26.5 lb)
BA5601 to BA5602 4200-6504 4.4 kg (9.7 lb) 4200-6502 10.0 kg (22.0 lb)
BA6401 to BA6402 4200-6603
5.25 kg (11.6 lb)
4200-6601
8.6 kg (19.0 lb)
BA6601 to BA6602 4200-6604 4200-6602

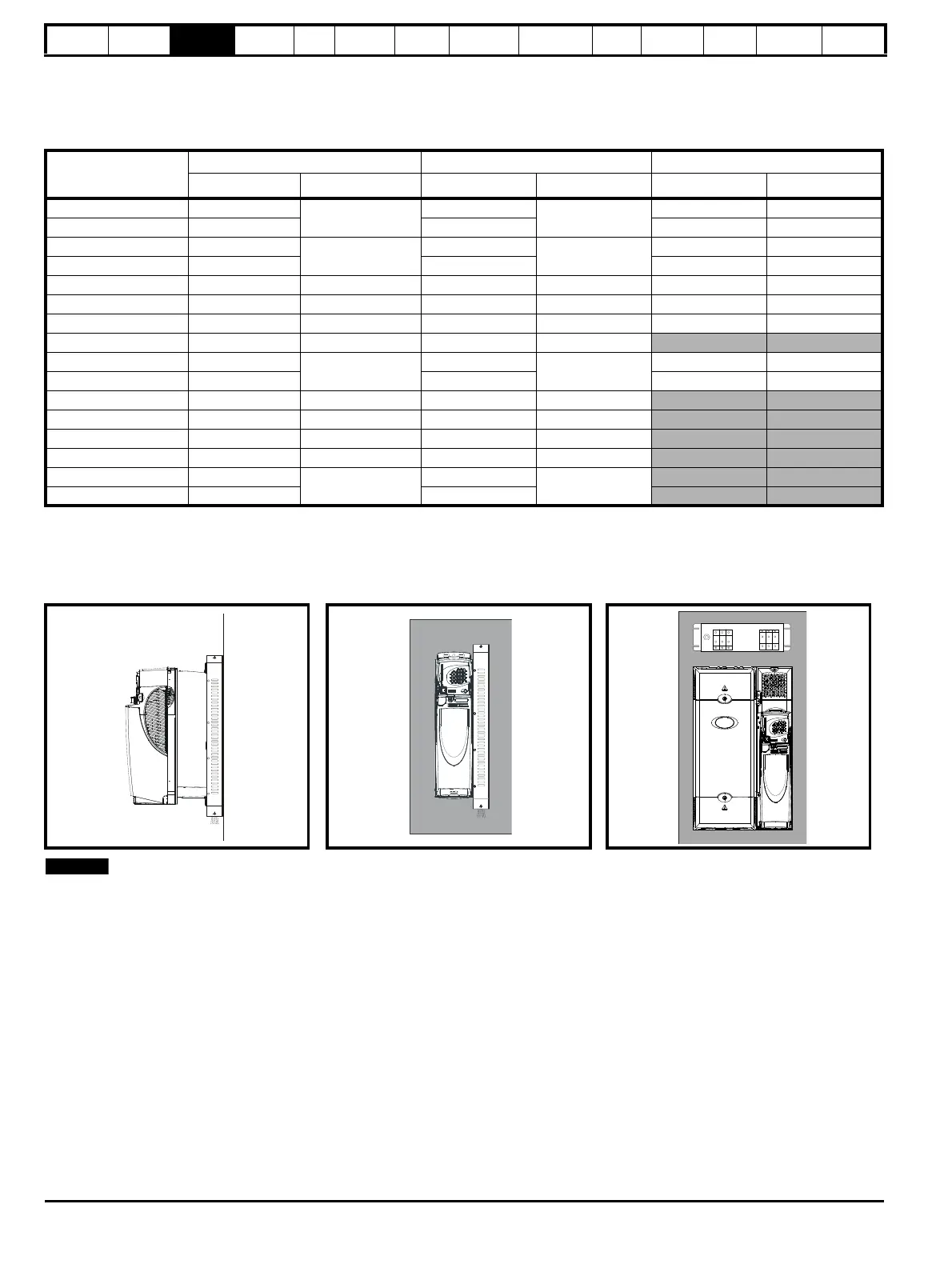

Figure 3-50 Footprint mounting the EMC
filter
Figure 3-51 Bookcase mounting the EMC
filter
Figure 3-52 Size 4 to 6 mounting of EMC
filter
