38 Affinity User Guide
www.controltechniques.com Issue Number: 5

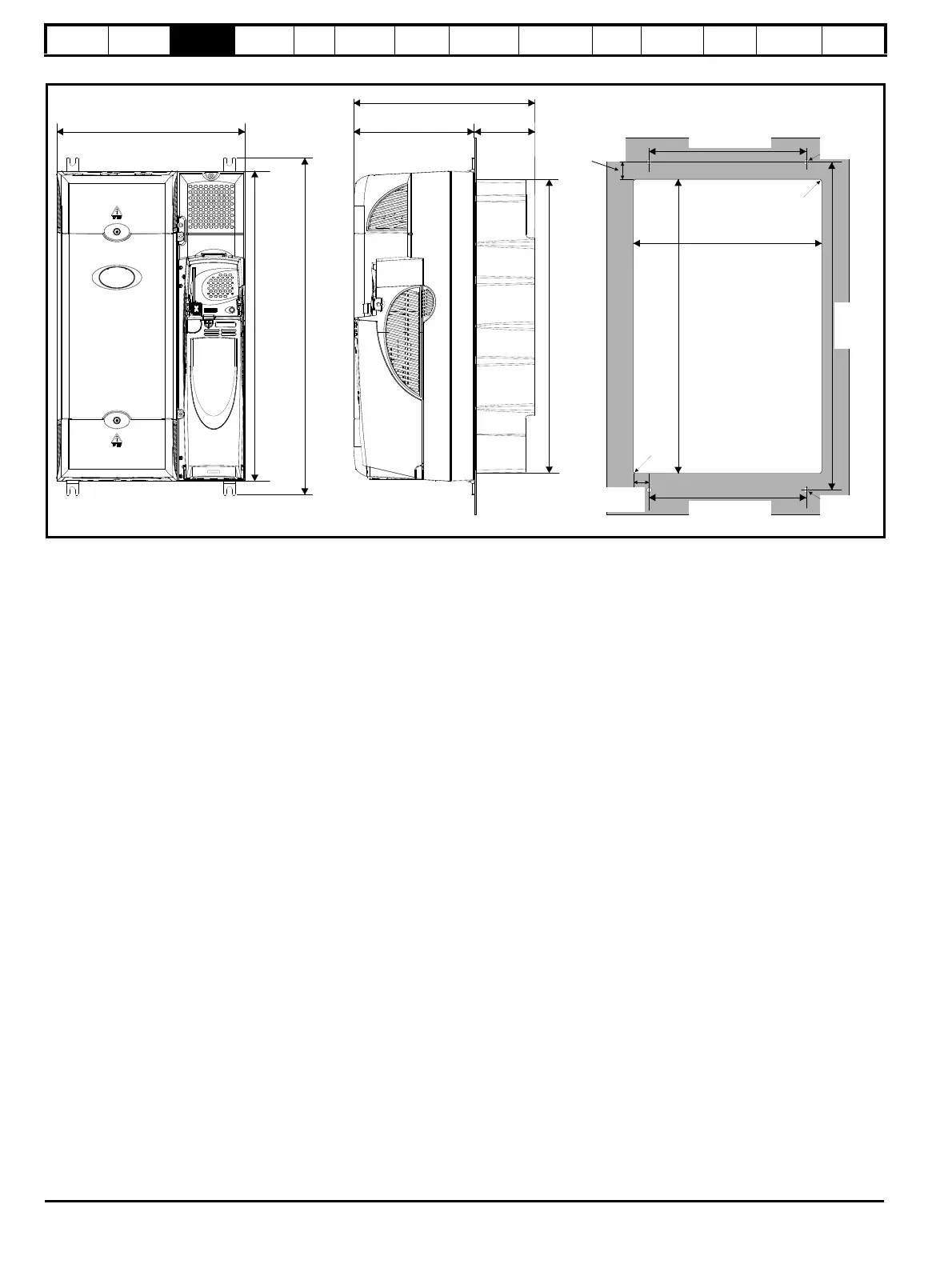

Figure 3-28 Through-panel mounting the standard size 4 drive
When a size 4 is through-panel mounted, the grounding link bracket
must be folded upwards. This is required to provide a grounding point for
the grounding bracket. See section 4.11.1 Grounding hardware on
page 79 for more information.
310mm (12.205in)
510mm
(20.079in)
298mm (11.732in)
200mm (7.874in)
98mm
(3.858in)
540.3
0.5mm
(21.272
0.020in)
±
±
258.6 0.5mm
(10.181 0.020in)
±
±
286.0 0.5mm
(11.260 0.020in)
±
±
487.0 0.5mm
(19.173 0.020in)
±
±
484mm
(19.055in)
258.6 0.5mm
(10.181 0.020in)
±
±
14.2
0.5mm
0.559 0.020in)
±
±
26.65
0.5mm
1.049 0.020in)
±
±
558mm
(21.969in)
∅
8.5mm
(0.335in)
∅
8.5mm
(0.335in)
R6.5mm
(0.256in)
R6.5mm
(0.256in)
