User Instructions
MAN-02-04-60-0350-EN Rev. 3 February 2019
16
Section 4: Installation Instructions
Installation Instructions
4.5.1 Power Supply Connection
RTS Compact Linear CL actuators feature an integrated motor controller, i.e. only a
connection to the power supply is required. In non explosion-proof actuators, the
wiring uses a connector independent from control signals
(see Figure 9).

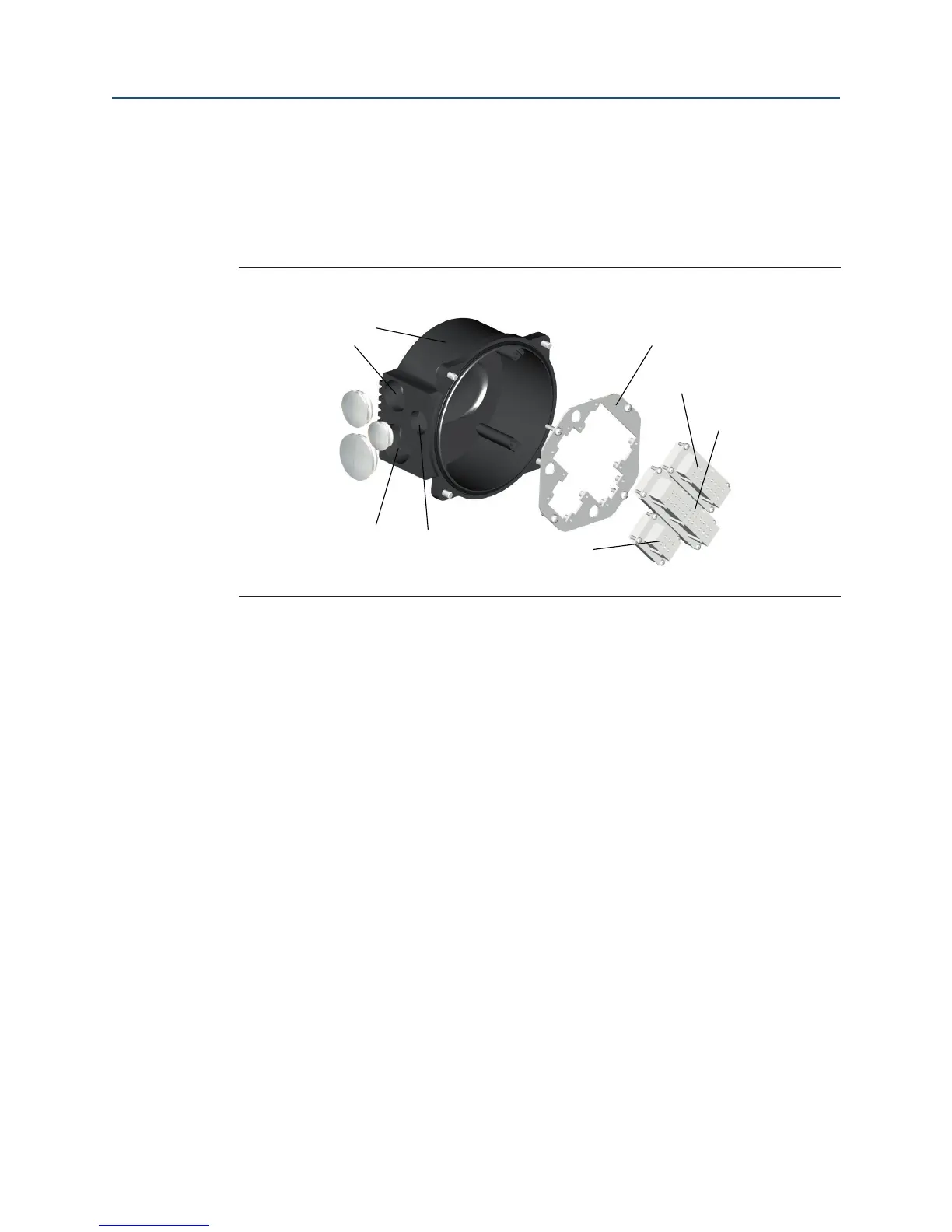

Figure 9 Enclosure Parts
1
8
2
3
7
6
5
4
Parts Overview:
1. Metric screw M32x1,5
2. M40x1,5, 3 - M25x1,5
3. M25x1,5
4. Plug insert Han6E (for power supply)
5. Plug insert Han24E (for control cables)
6. Connector for options
7. Connector Plate
8. Connecting Housing
Explosion-proof actuators or on special request the connection will be made via terminals
(see Figure 10).
