February 2019
User Instructions
MAN-02-04-60-0350-EN Rev. 3
21
Section 5: Commissioning
Commissioning
Step 4 - This changes the bottom line of the display from "EDIT?" to "SAVE?"

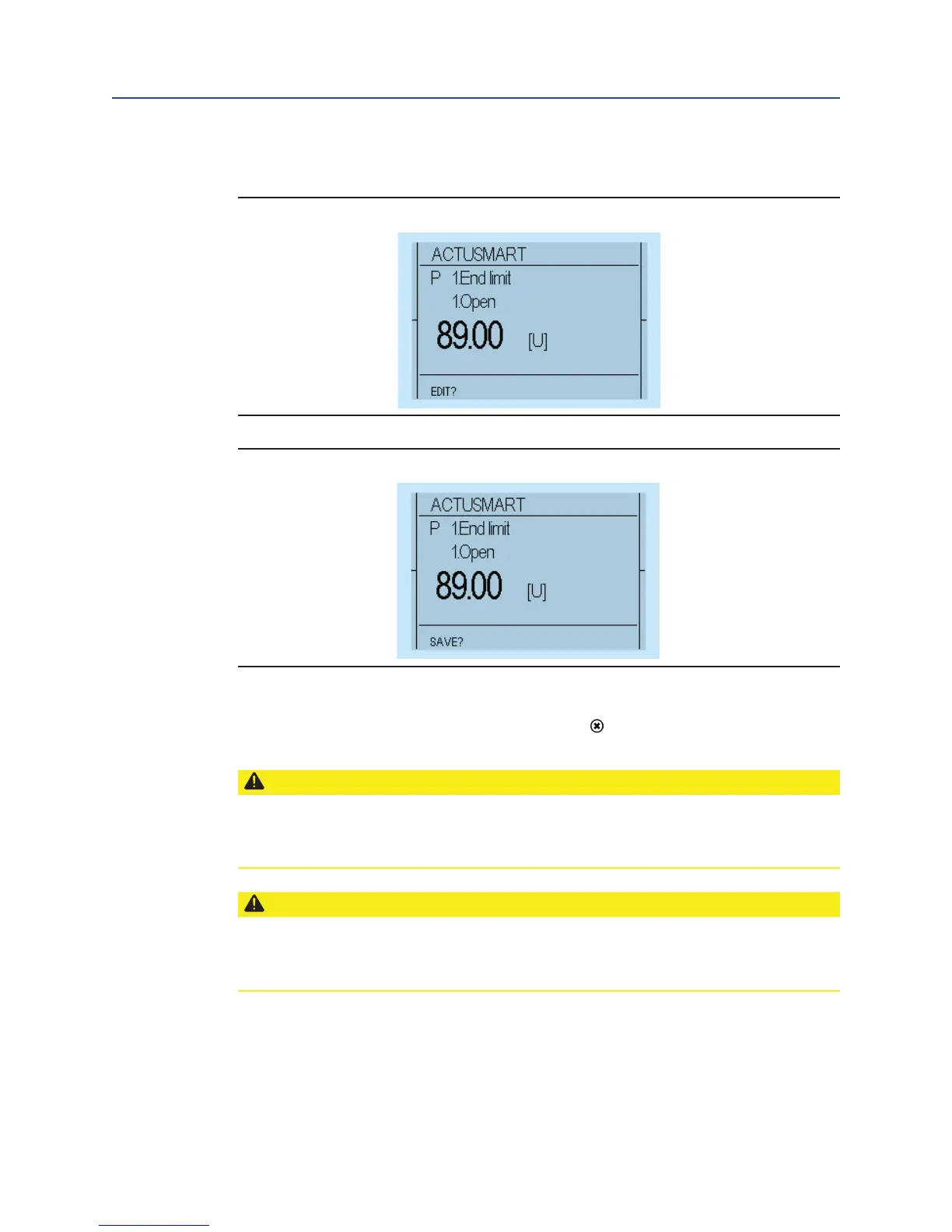

Figure 17 Edit and Save
Figure 18 Save Settings
Step 5 - Then, push down the selector switch until it snaps into place. In doing so, the
bottom right now on the display will show "TEACHIN" .
CAUTION: USE OPERATING SWITCH
Once the display shows "TEACHIN", use the operating switch (black switch) to start the
motorised operation of the actuator. In this mode, no travel-dependent switch off occurs in
the end position.
CAUTION: CHECK MAXIMUM PARAMETERIZED TORQUE
Please note that, during motor operation, only torque monitoring remains active, as travel
ad justment will happen subsequently. Therefore, please check beforehand whether the
maximum torque has been already parameterised
