Section 5: Commissioning
Commissioning
Step 6 - Absolute and relative values on the display will change continuously along with
position changes.

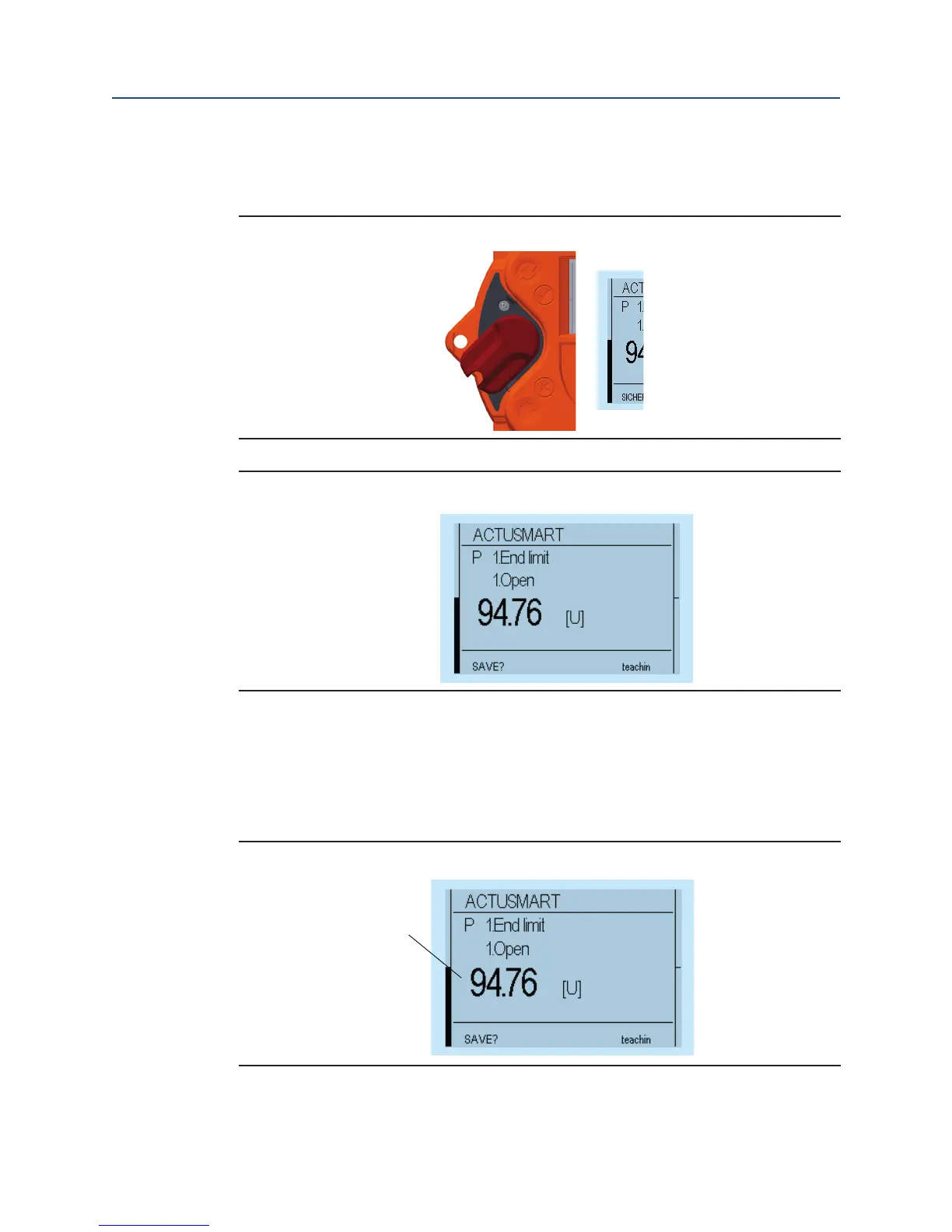

Figure 19 Position Change Selector Setting
Figure 20 Position Change Display
Step 7 - Manually move the actuator with the handwheel (see Section 2.1, or 2.6) or by
motor via the operating switch (black button) to the end position OPEN of the valve.
• Absolute value: Absolute value of the position feedback
• Relative value: the value to the other end postion
Figure 21 Absolute Value
1
