12 EZMotion User/Programming Guide
www.controltechniques.com Revision: A8
4.3 How PowerTools Pro is Organized
The PowerTools Pro software is made up of six major components. These components are the Menu Bar, Tool Bar, Hierarchy Tree,
View, View Tab, and Status Bar. Note that some of these components and sub-components are only available under certain
conditions (i.e., while online, while on a certain view, etc.).

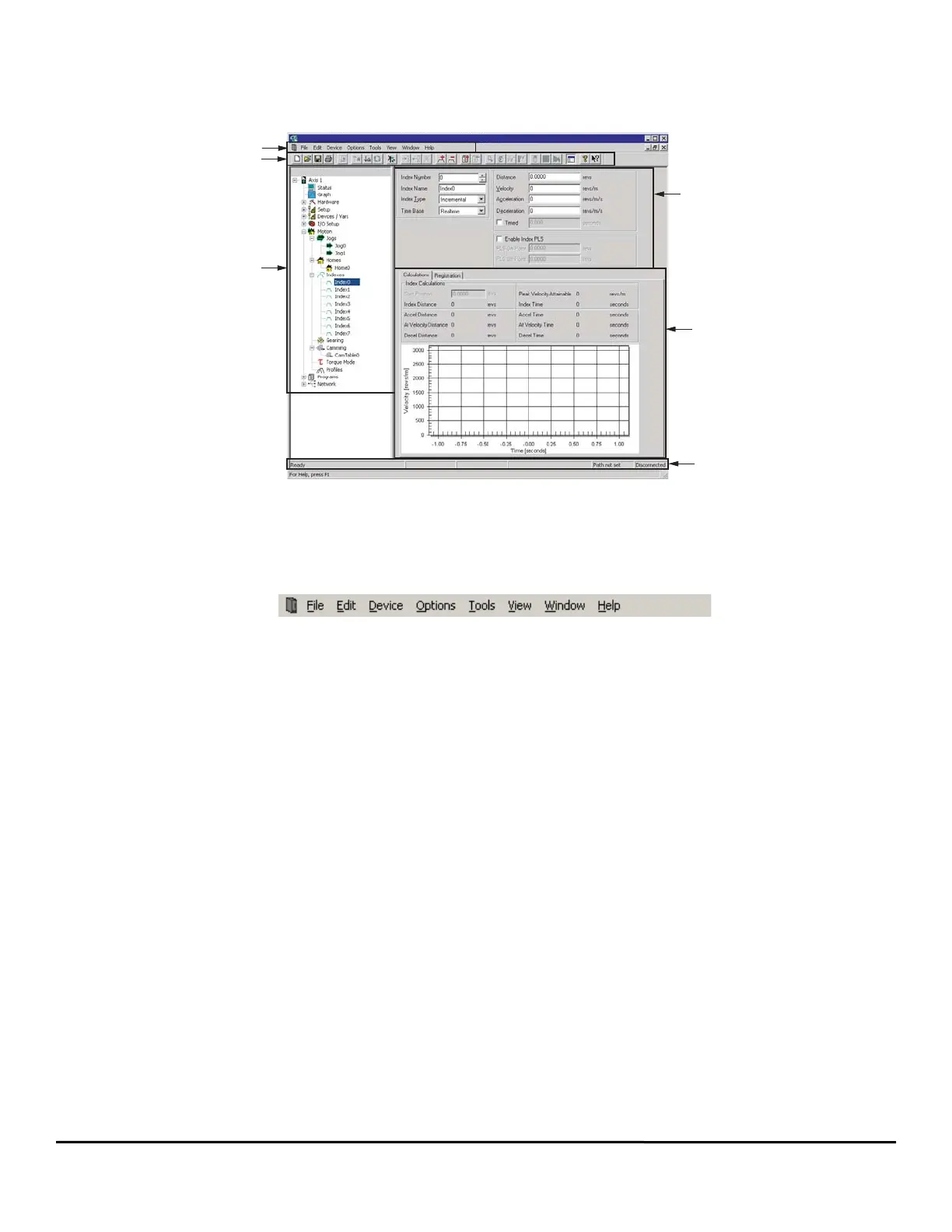

Figure 8: PowerTools Pro Organization
4.4 Menu Bar
Figure 9 shows the Menu Bar as found in PowerTools Pro. The items available on the Menu Bar may change under certain
conditions (i.e., online, configuration open, etc.).
Figure 9: Menu Bar
To use a menu choose one of the following methods:
• On the menu bar, click a menu name to display a list of commands. On the menu, either click a command or use the DOWN
ARROW to move down the list, and then press ENTER.
• Press ALT and press the underlined letter in the menu name. Then press the underlined letter in the option name. For example,
to open a new configuration file, press ALT and press F to open the File menu. Then press N for New, see Figure 10.
4.4.1 File
The File menu on the menu bar contains many different options for file handling (i.e., saving files, importing files, etc.). Figure 10
below shows the File menu expanded.
View
View Tab
Status Ba
Menu Bar
Tool Bar
Hierarchy
Tree
To Next Page
