6.2.2 Home to Sensor
The Home to Sensor profile acts much like the Home to Marker profile, but instead of using the Encoder Marker as a
reference, an external sensor mounted to the machine is used as the reference. In a Home to Sensor routine, the motor
accelerates to the Home Velocity. The motor continues at the Home Velocity until the external sensor activates. Once this
sensor activates, the motor immediately decelerates to a stop, or continues for a specified offset distance before stopping.

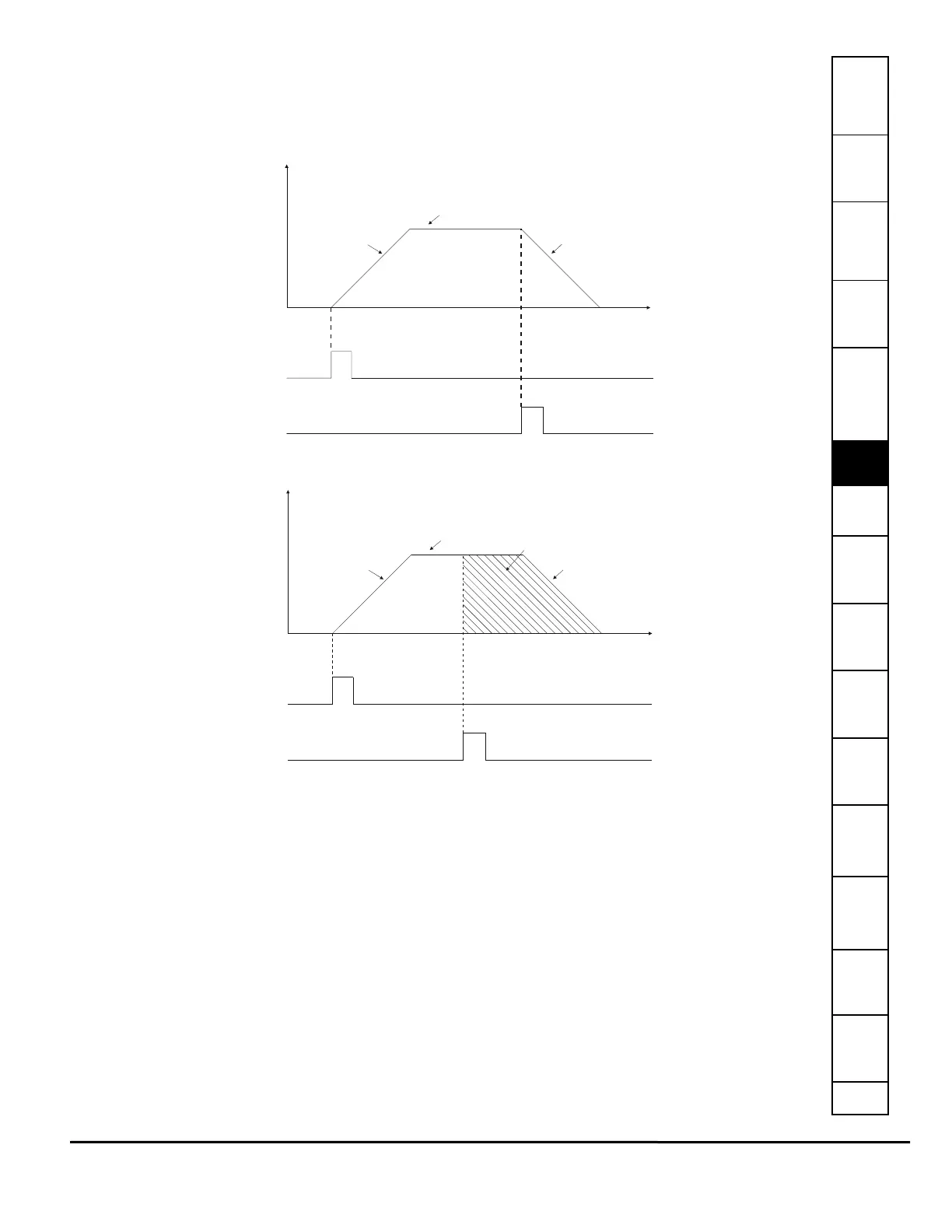

Figures 38 and 39 show examples of the Home to Sensor profile, with calculated offset and specified offset respectively.
Figure 38: Home to Sensor Profile (Calculated Offset)
Figure 39: Home to Sensor Profile (Specified Offset)
Velocity
Home Accel
Home Velocity
Home Decel
Time
Home Initiate
External Sensor
Velocity
Home Accel
Home Velocity
Home Decel
Time
Home Initiate
External Sensor
Home Offset
