has already selected a communication connection (Com port) and then wishes to change communication connection (Ethernet).
To change communication path, click the Change Connection Path button on the PowerTools Pro toolbar or on the Device menu,
click Path Change.

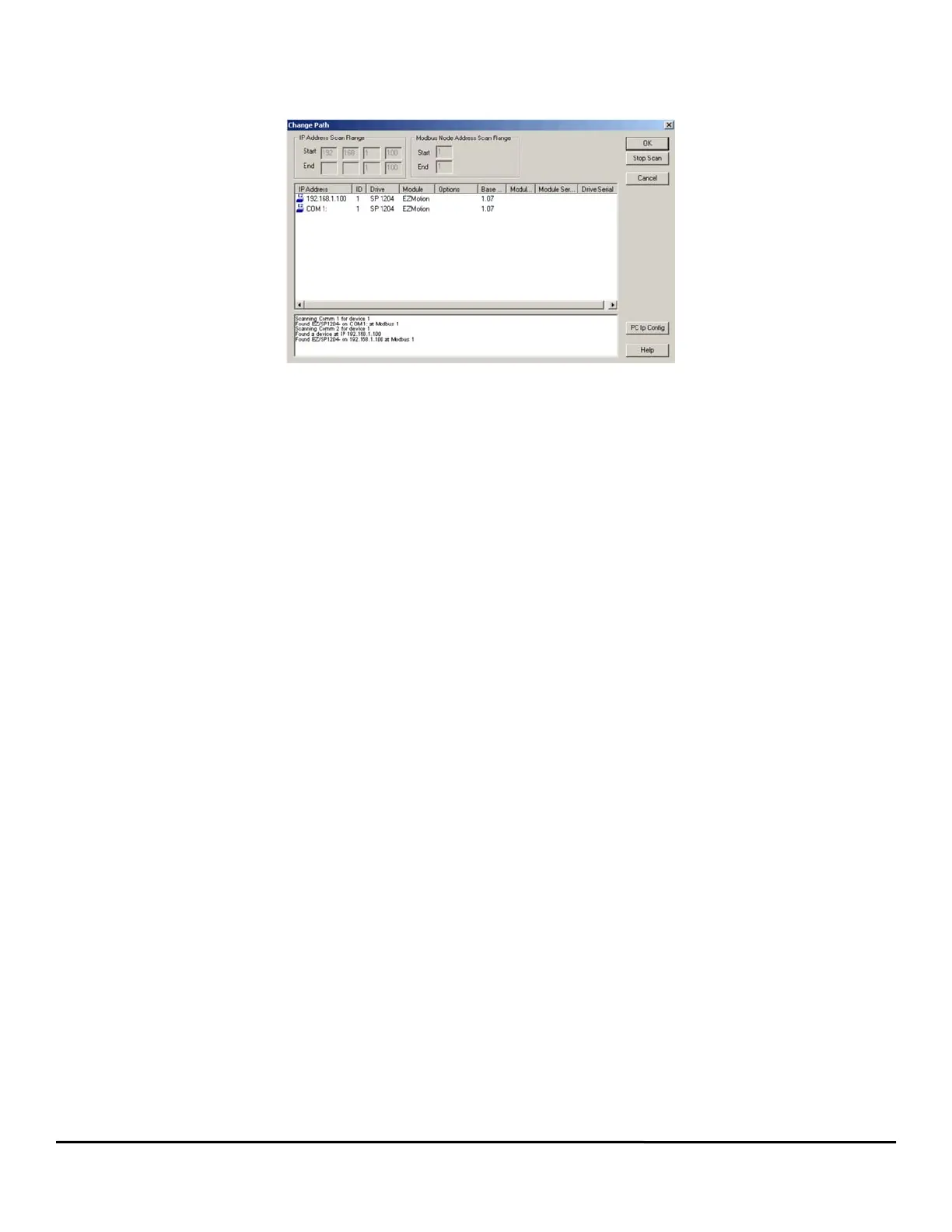

Figure 35: Change Path Dialog Box
The Change Path dialog box will open, all communication connections are scanned and the results appear. The Change Path dialog
box contains the following information for every device found:
• IP Address/COM
• Modbus Address ID
•Drive Type
• Module Type
• Communication Options
• Base/Drive Revision
• Module Revision
• Module Serial Number
•Drive Serial Number
Select the devices communication connection you wish to change to and click OK.
