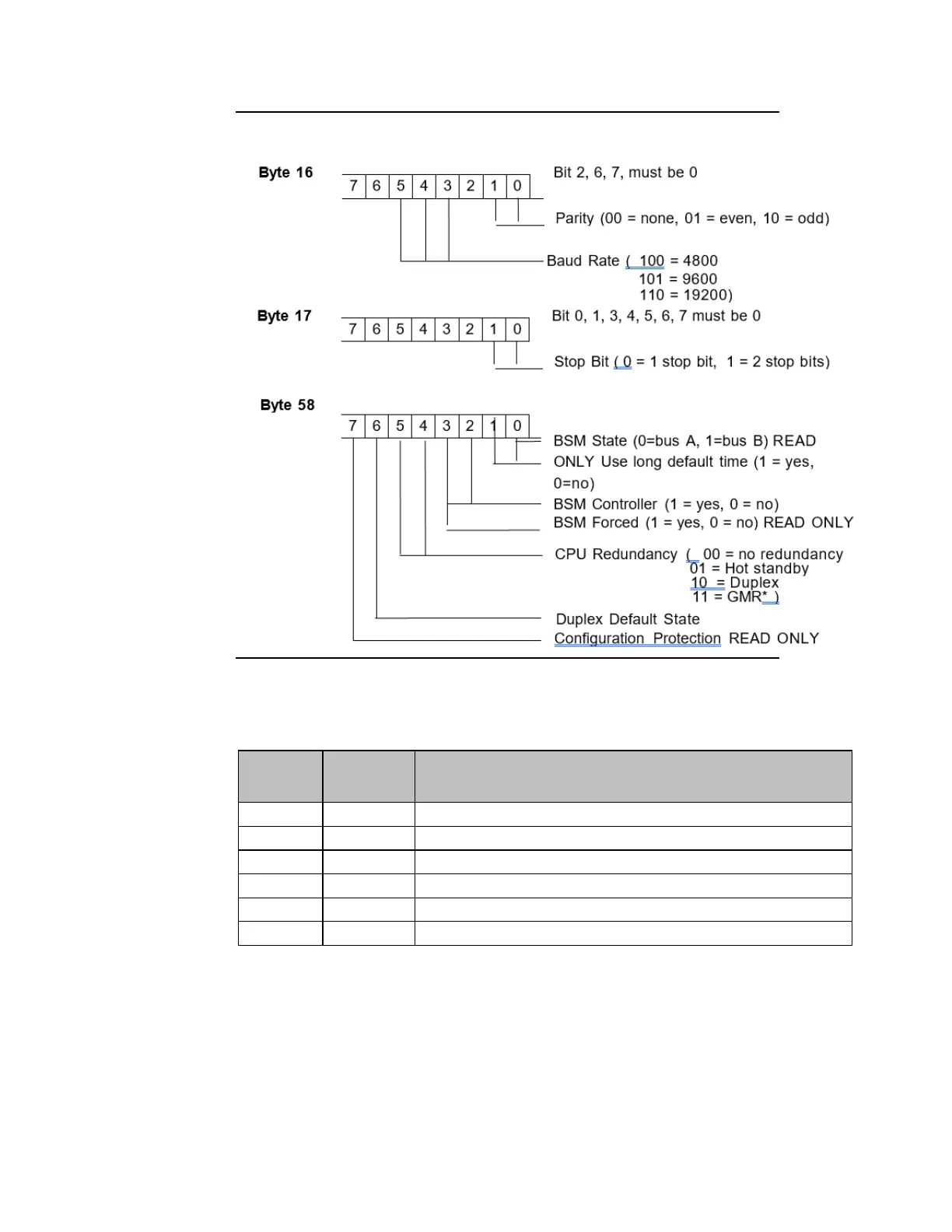

Figure 64: Bytes 16, 17, and 58
* GMR mode cannot be enabled via a Write Configuration datagram.
Expansion Receiver Module Format (Rack 1-7, slot 1)
(Byte in
Message)
(Byte in
Record)
Byte Description
6, 7
0, 1
not used (must be 0)
8
2
major type (05=Expansion Module
9
3
Type of Expansion Receiver (02=Isolated, 03=Non-isolated)
10,…, 13
4,…, 7
not used (must be 0)
14,…, 29
8,…, 23
not used (must be 0)
30, 31
24, 25
Length of additional data (0)
