Cerabar S/Deltabar S Description of parameters (FF configuration program)
Endress+Hauser 59
TOTALIZER_1_
MODE/NEG. FLOW
TOT. 1
Selection
Index: 15
Data type: Unsigned8
Access: Auto, OOS
Specify way of counting negative flows for totalizer 1.
P01-xMD7xxxx-16-xx-xx-xx-003
Factory setting:
Positive
TOTALIZER_1_FAIL_
SAFE_MODE/
FAIL_SAFE_MODE
Selection
Index: 16
Data type: Unsigned8
Access: Auto, OOS
Select the mode for totalizer 1 in the event of an error.
Only the "Actual" mode can be selected at present which means that totalizer 1 continues
totalising in the event of an error.
TOTALIZER_1_RESET/
RESET TOTALIZER1
Selection
Index: 17
Data type: Unsigned8
Access: Auto, OOS
You reset totalizer 1 to zero with this parameter.
Options:
• Abort (do not reset)
•Reset
Factory setting:
Abort
TOTALIZER_1_UNIT_
TEXT/TOT. 1 USER
UNIT
Entry
Index: 18
Data type: Visible String
Access: Auto, OOS
Enter text (unit) for customer-specific unit for totalizer 1.
You can enter a maximum of eight alphanumeric characters here. → See also
TOTALIZER_1_UNIT_SCALE/FACT. U. U. TOTAL. 1
Prerequisite:
• TOTALIZER_1_UNIT/TOTAL. 1 ENG. UNIT = user unit
!
Note!
Only the first five characters are shown on the on-site display. For example, if "crates" is
specified as the customer-specific unit, "crate" is displayed.
If the unit contains a slash, up to eight characters can be shown on the on-site display. The
maximum number of characters in the counter is again limited to five. For example, if
"crates/m2" is specified as the customer-specific unit, "crate/m2" is displayed. In the FF
configuration program, the slash counts as a character, i.e. "crates/m2" would be displayed as
"crates/m".
Factory setting:
_ _ _ _ _ _ _ _
TOTALIZER_1_UNIT_
SCALE/
FACT. U. U. TOTAL. 1
Entry
Index: 19
Data type: Float
Access: Auto, OOS
Enter conversion factor for a customer-specific unit for totalizer 1.
The conversion factor must be entered in relation to an appropriate SI unit, e.g. m
3
for the
"Volume p. cond." FLOW_TYPE/ FLOW-MEAS. TYPE. → See also
TOTALIZER_1_UNIT_TEXT/TOT. 1 USER UNIT.
Prerequisite:
• TOTALIZER_1_UNIT/TOTAL. 1 ENG. UNIT = user unit
Example: You want the measured value to be displayed in "buckets".
– PRIMARY_VALUE =1 m3 i 100 bucket
– Entry TOTALIZER_1_UNIT_TEXT/TOT. 1 USER UNIT: bucket
– Entry TOTALIZER_1_UNIT_SCALE/FACT. U. U. TOTAL. 1: 100
– Result: PRIMARY_VALUE = 100 bucket
Factory setting:
1.0

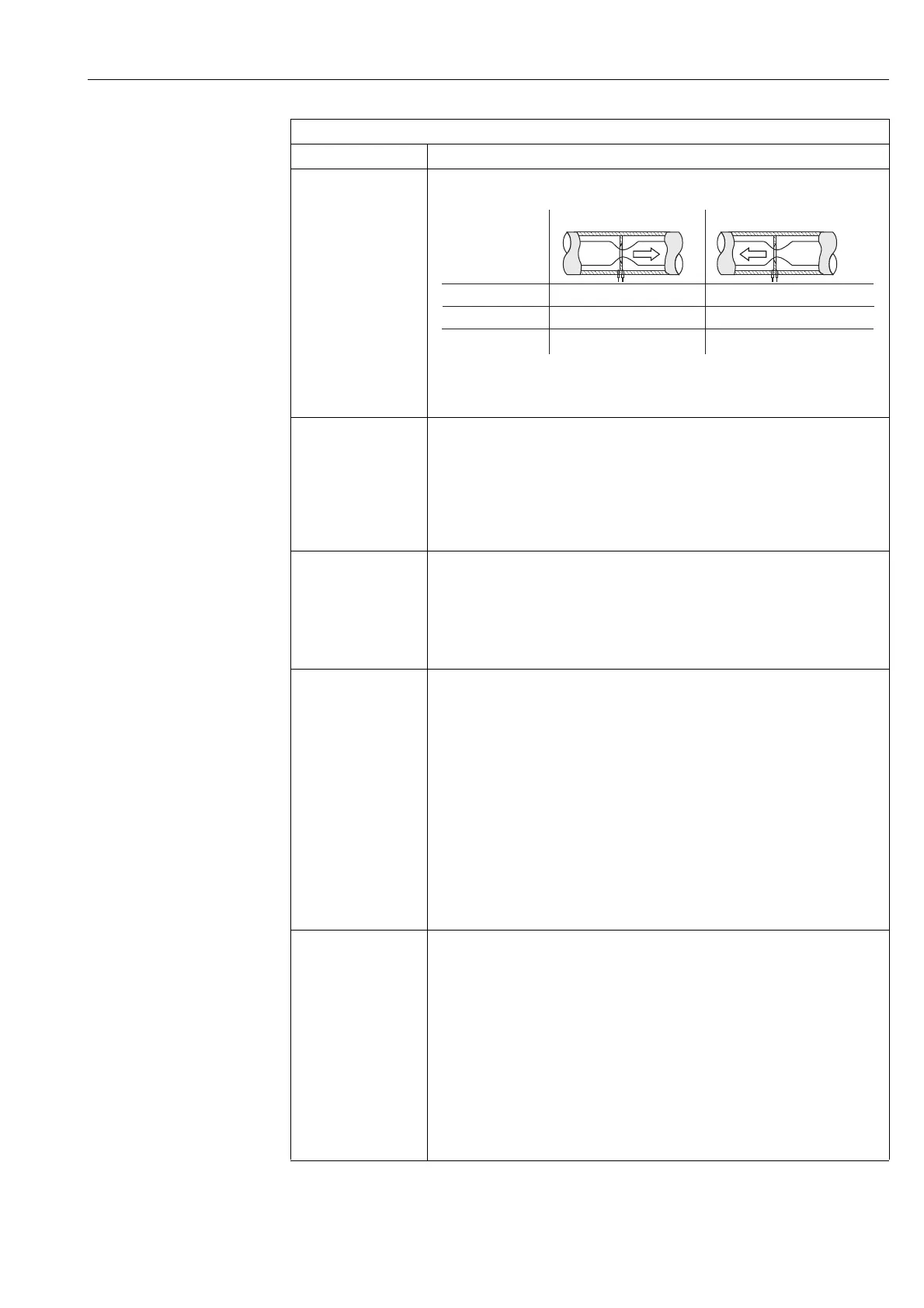

Totalizer Transducer Block
Parameter Description
Options
Stop on neg. flow
Dec. on neg. flow
Inc. on. neg. flow
negative flow
Total remains constant
Total decreases
Total increases
Total increases
Total increases
Total increases
positive flow
