Cerabar S/Deltabar S Description of parameters (FF configuration program)
Endress+Hauser 71
OUT_SCALE
Entry, Display
Index: 11
Data type: DS-68
Access: Auto, Man, OOS
The OUT_SCALE parameter is a structured parameter consisting of four elements.
EU_100:
• Enter the upper limit for the output value of the AI Block OUT (→ Page 70).
• Factory setting: 100
EU_0:
• Enter the lower limit for the output value of the AI Block OUT.
•Factory setting: 0
UNITS_INDEX:
•Select unit.
•Factory setting: %
DECIMAL:
• Displays the number of places after the decimal point for the output value OUT
•Factory setting: 2
!
Note!
• The output value OUT is also transmitted if it is outside the scaling range. The status
changes to BAD.
• If the "Direct" option was selected by means of the L_TYPE parameter, the settings for the
XD_SCALE and OUT_SCALE parameters must be identical. If this is not the case, the
block changes to the OOS mode and the "Block Config Error" error is displayed in the
BLOCK_ERROR parameter.
PV
Display
Index: 7
Data type: DS-65
Access: Read only
The PV parameter is a structured parameter consisting of two elements.
VALUE
• Displays the process variable used for block execution.
STATUS
• Displays the status of the process variable.
!
Note!
The unit used by the OUT_SCALE parameter is accepted.
PV_FTIME
Entry
Index: 18
Data type: Float
Access: Auto, Man, OOS

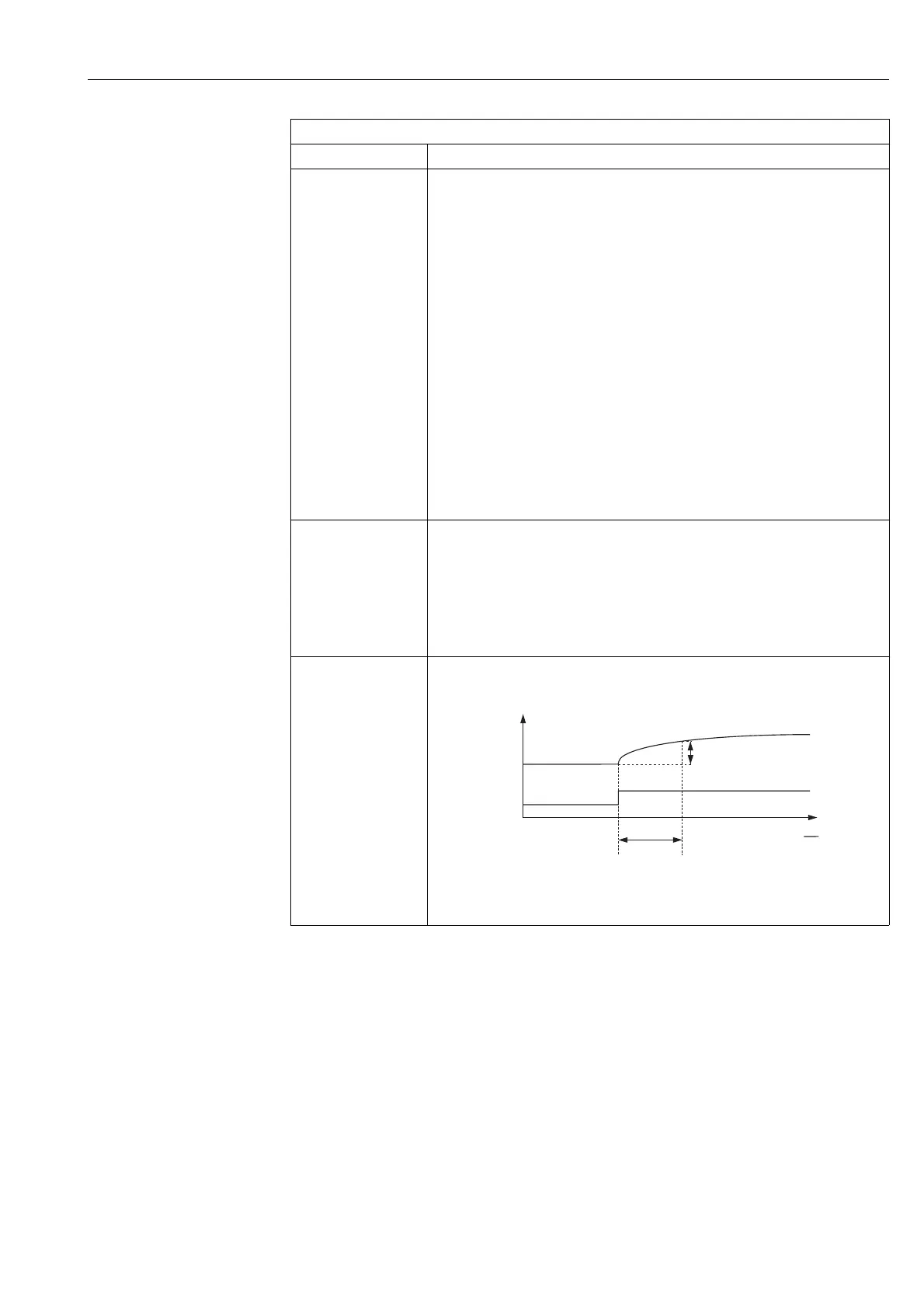

Enter the filter time constant for the 1st order digital filter. This time is needed for 63 % of a
change of the controlled variable IN to take effect in the value of PV.
P01-xxxxxxxx-05-xx-xx-xx-021
Factory setting:
0 s
Analog Input Block
Parameter Description
[s]
t
PV
IN
PV_FTIME
63 %
