Proline Promass E 300 PROFINET Electrical connection
Endress+Hauser 41
7.4 Special connection instructions
7.4.1 Connection examples
PROFINET
1
2
4
3
5
5
A0028767

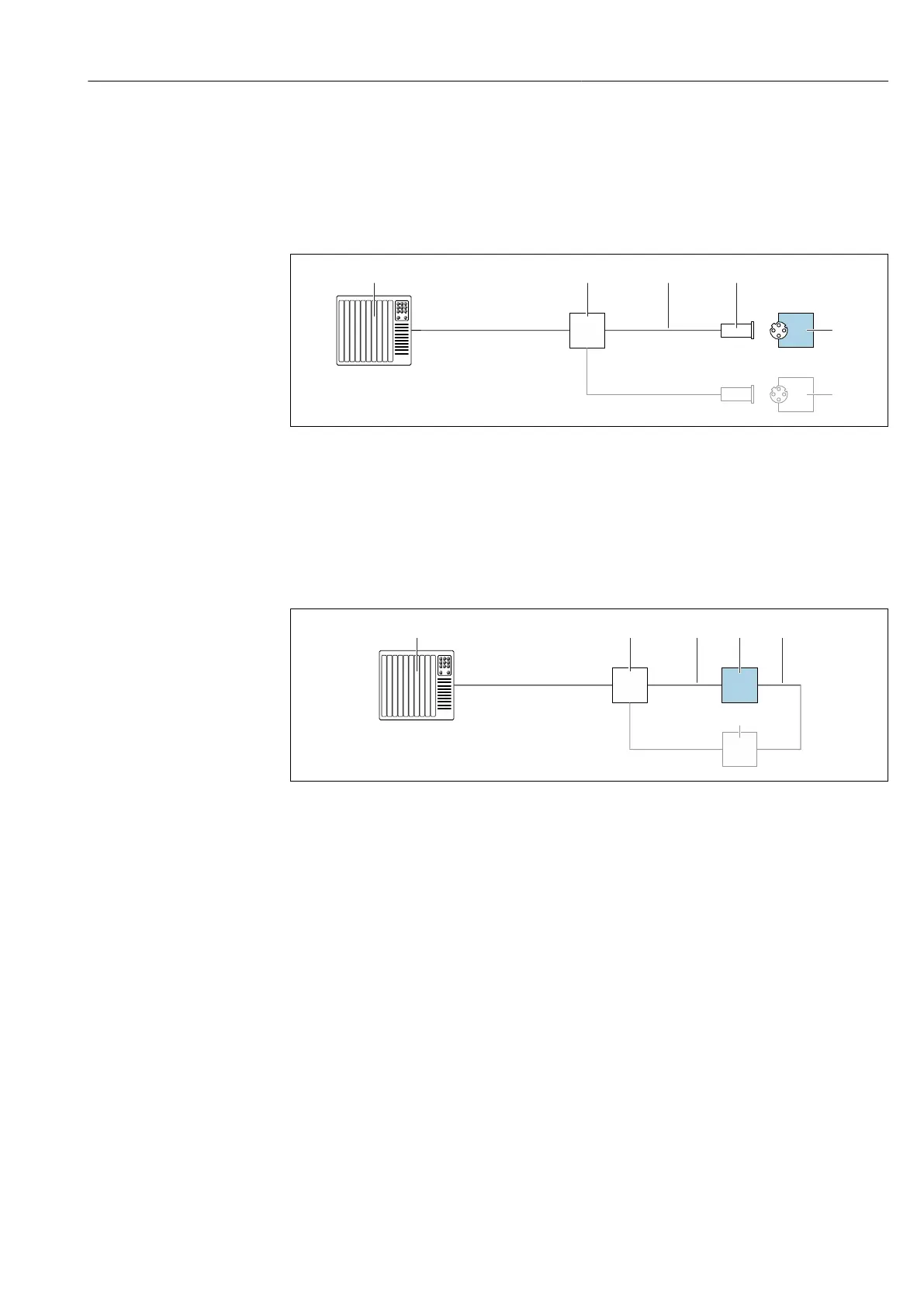

 10 Connection example for PROFINET
1 Control system (e.g. PLC)
2 Ethernet switch
3 Observe cable specifications
4 Device plug
5 Transmitter
PROFINET: MRP (Media Redundancy Protocol)
1
2
5
3
4
4
A0027544
1 Control system (e.g. PLC)
2 Ethernet switch
3 Observe cable specifications →  30
4 Transmitter
5 Connecting cable between the two transmitters
