Proline Promass E 300 PROFINET Electrical connection
Endress+Hauser 43
Pulse/frequency output
1
2
3
12345
A0028761

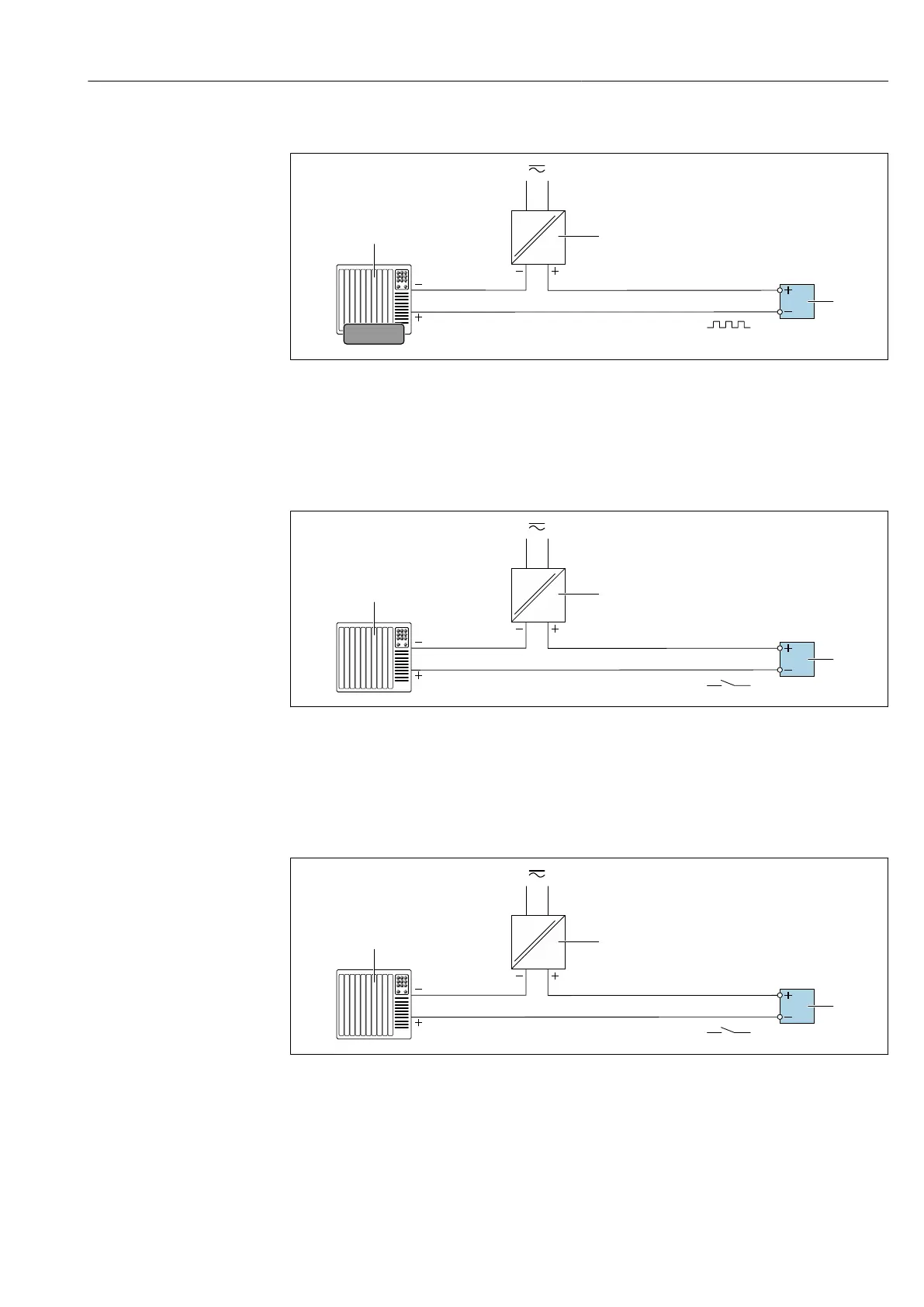

 14 Connection example for pulse/frequency output (passive)
1 Automation system with pulse/frequency input (e.g. PLC)
2 Power supply
3 Transmitter: Observe input values →  232
Switch output
1
2
3
A0028760
 15 Connection example for switch output (passive)
1 Automation system with switch input (e.g. PLC)
2 Power supply
3 Transmitter: Observe input values →  232
Relay output
1
2
3
A0028760
 16 Connection example for relay output (passive)
1 Automation system with relay input (e.g. PLC)
2 Power supply
3 Transmitter: Observe input values →  234
