Enertech EAV060 - EAV Series Outdoor Unit Refrigerant Circuit

Enertech Global 
EAV - EME/EMD Rev. A Models
Installaon and Operaons Manual
LEK
Compressor
(GQ10)

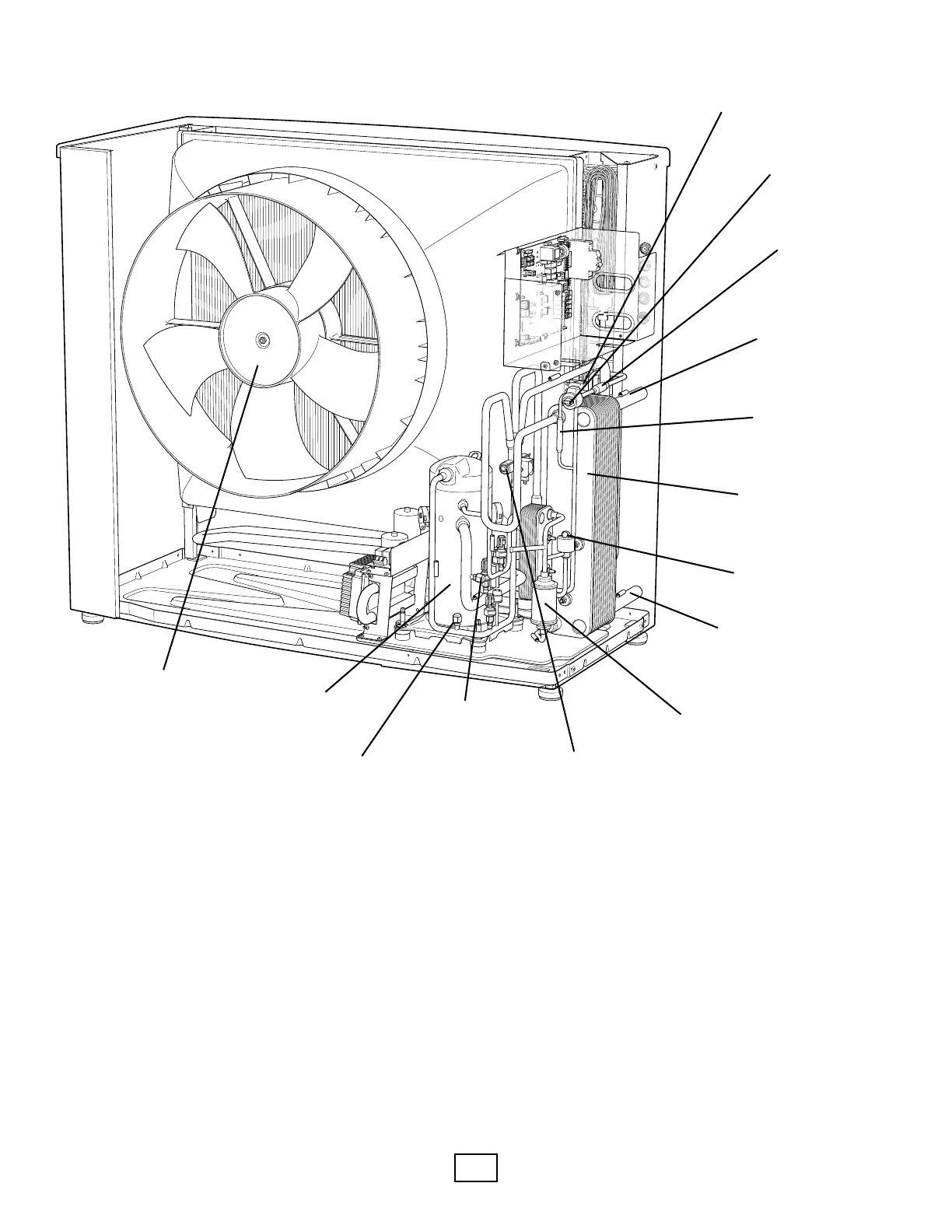

Refrigerant Circuit Labels
Solenoid Valve
EEV
Refrigeraon
Strainer
Connecon, Fluid
to Indoor Unit
Check Valve
Brazed Plate
Heat Exchanger
Reversing Valve
EEV, Subcooler
Connecon, Fluid from
Indoor Unit
Filter Drier
Fan
Compressor
Service Port,
Discharge Pressure
Service Port,
Sucon Pressure


