Enertech EAV060 - Troubleshooting

Enertech Global 
EAV - EME/EMD Rev. A Models
Installaon and Operaons Manual

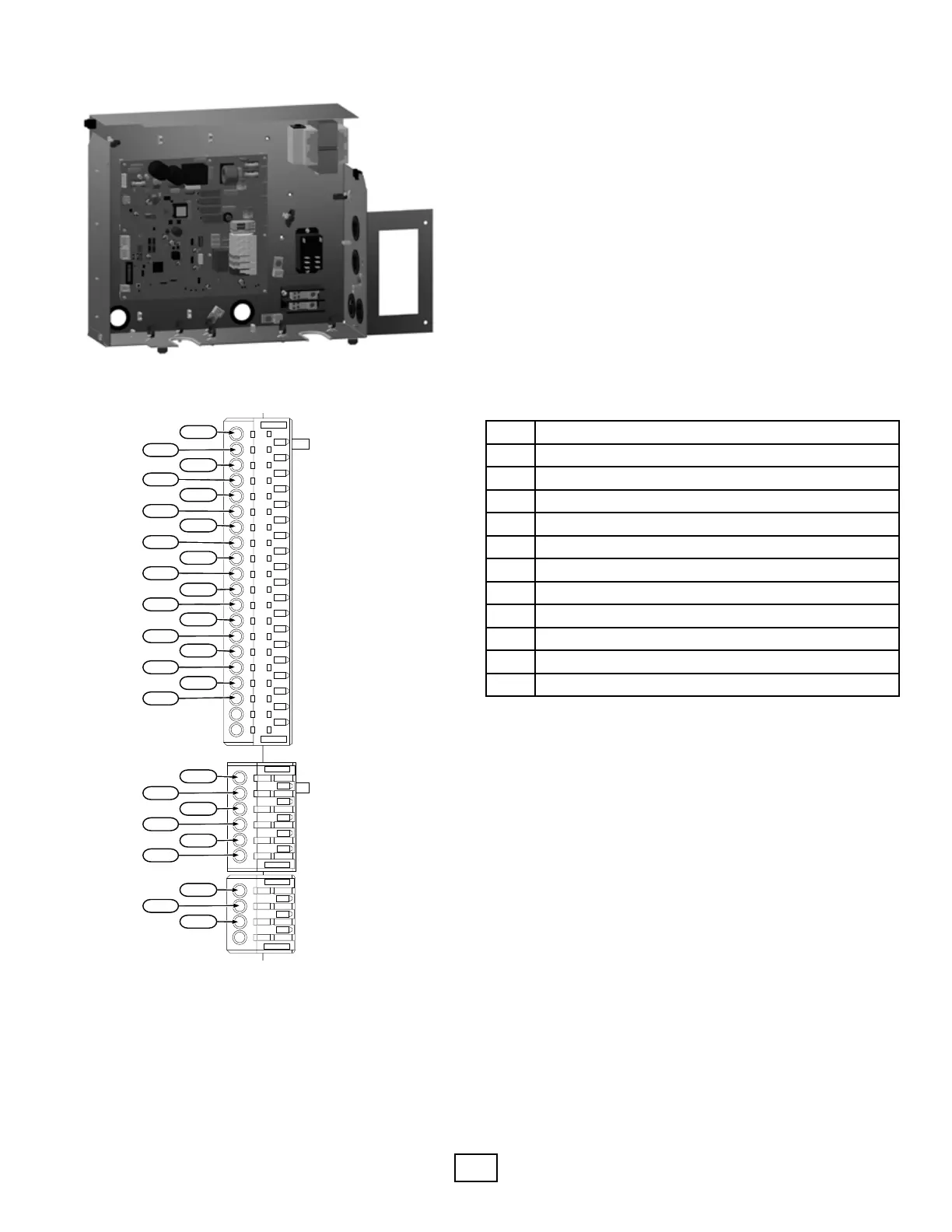

Sensor placement
LEK
Sensors
1
1
2
1234 1234
2 3 4 1 2 3 4
BT28
BT3
BT12
BT16
BT14
BT15
BT17
BT81
BT84
BP8
BP8
BP11
BP9
BP11
BT3
BT28
BT16
BT12
BT14
BT15
BT17
BT81
BT84
BP8
BP9
BP9
BP11
Low pressure transmitterBP8
High pressure sensorBP9
Pressure sensor, injectionBP11
Temperature sensor, returnBT3
Temperature sensor, condenser supply lineBT12
Temperature sensor, hot gasBT14
Temperature sensor, fluid pipeBT15
Temperature sensor, evaporatorBT16
Temperature sensor, suction gasBT17
Temperature sensor, ambientBT28
Temperature sensor, injection, EVI compressorBT81
Temperature sensor, suction gas, evaporatorBT84
Data for temperature sensor return line (BT3),
condenser supply (BT12), fluid pipe (BT15)
injection (BT81) Black (10k)
Voltage (VDC)Resistance
(kOhm)
Temperature
(°C)
3.256351.0-40
3.240251.6-35
3.218182.5-30
3.189133.8-25
3.15099.22-20
3.10574.32-15
3.04756.20-10
2.97642.89-5
2.88933.020
2.78925.615
2.67320.0210
2.54115.7715
2.39912.5120
2.24510.0025
2.0838.04530
1.9166.51435
1.7525.30640
1.5874.34845
1.4263.58350
1.2782.96855
1.1362.46760
1.0072.06865
0.8911.73970
0.7851.46975
0.6911.24680
0.6071.06185
0.5330.90890
0.4690.77995
0.4140.672100
NIBE F2120Chapter 8 | Disturbances in comfort40
BP8 Low Pressure Transducer
BP9 High Pressure Transducer
BP11 Injecon Transducer
BT3 Temperature Sensor, Load In, Black (10k)
BT12 Temperature Sensor, Load Out, Black (10K)
BT14 Temperature Sensor, Discharge, Red (5.374K)
BT15 Temperature Sensor, Liquid line (Heang), Black (10K)
BT16 Temperature Sensor, Liquid line (Cooling), Blue (6K)
BT17 Temperature Sensor, Sucon Line, Blue (6K)
BT28 Temperature Sensor, Outdoor Air, Blue (6K)
BT81 Temperature Sensor, Vapor Injecon Black (10K)
BT84 Temperature Sensor, Sucon Evap, Heang, Blue (6K)



