Enertech EAV060 - Refrigerant Circuit - Heating Mode

Enertech Global 
EAV - EME/EMD Rev. A Models
Installaon and Operaons Manual


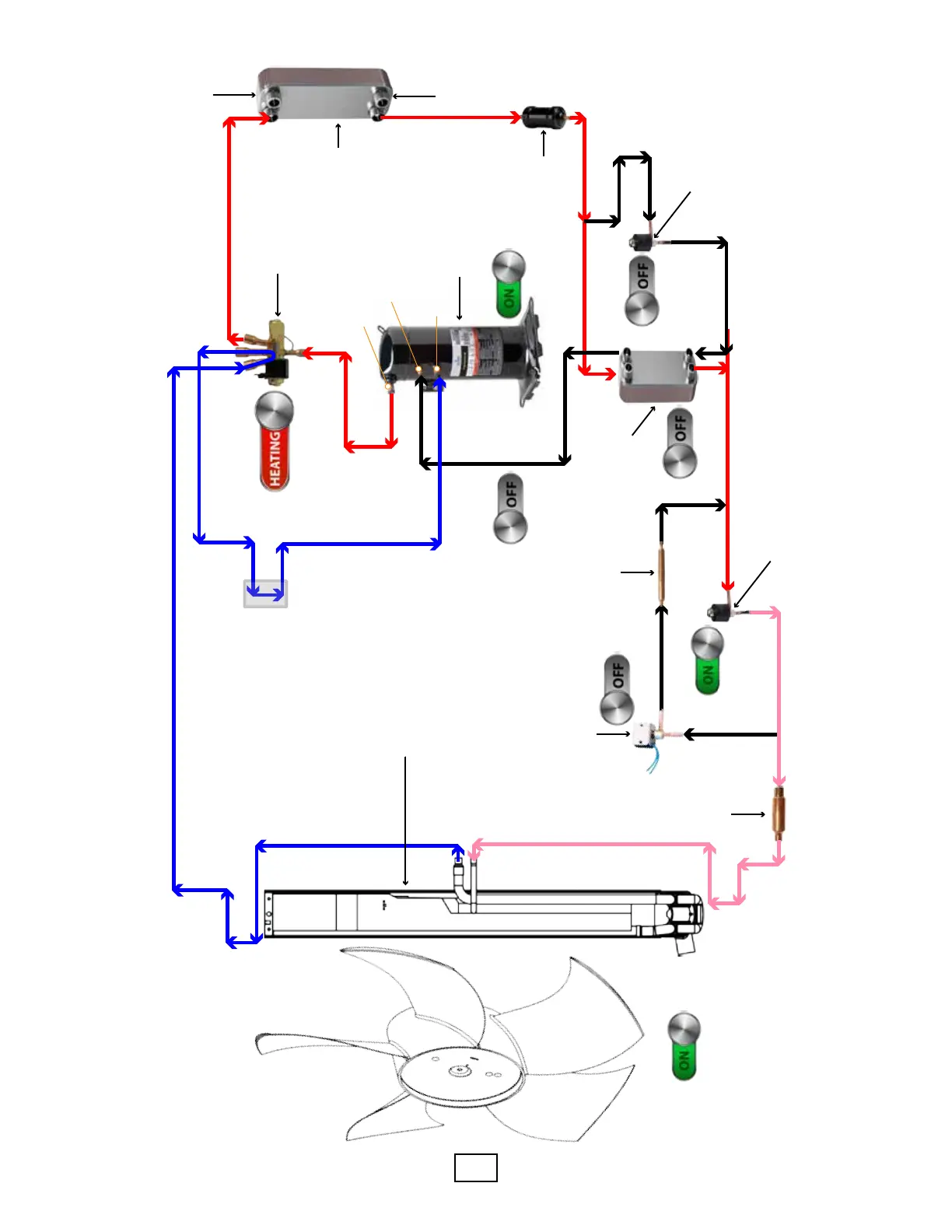

Refrigerant Circuit - Heang Mode
Reversing Valve
Water Out
Water In
Bi-fow Filter Drier
Electronic
Expansion Vlave
Electronic
Expansion Valve
Subcooler
Check Valve
Solenoid Valve
Strainer
Air Coil
Condenser
Water Heater
Inverter Cooler
Compressor
Discharge Line
Injecon Line
Sucon Line
Brazed Plate Heat
Exchanger (BPHE)
Water Pumps Are Acve
Vapor
Injecon

