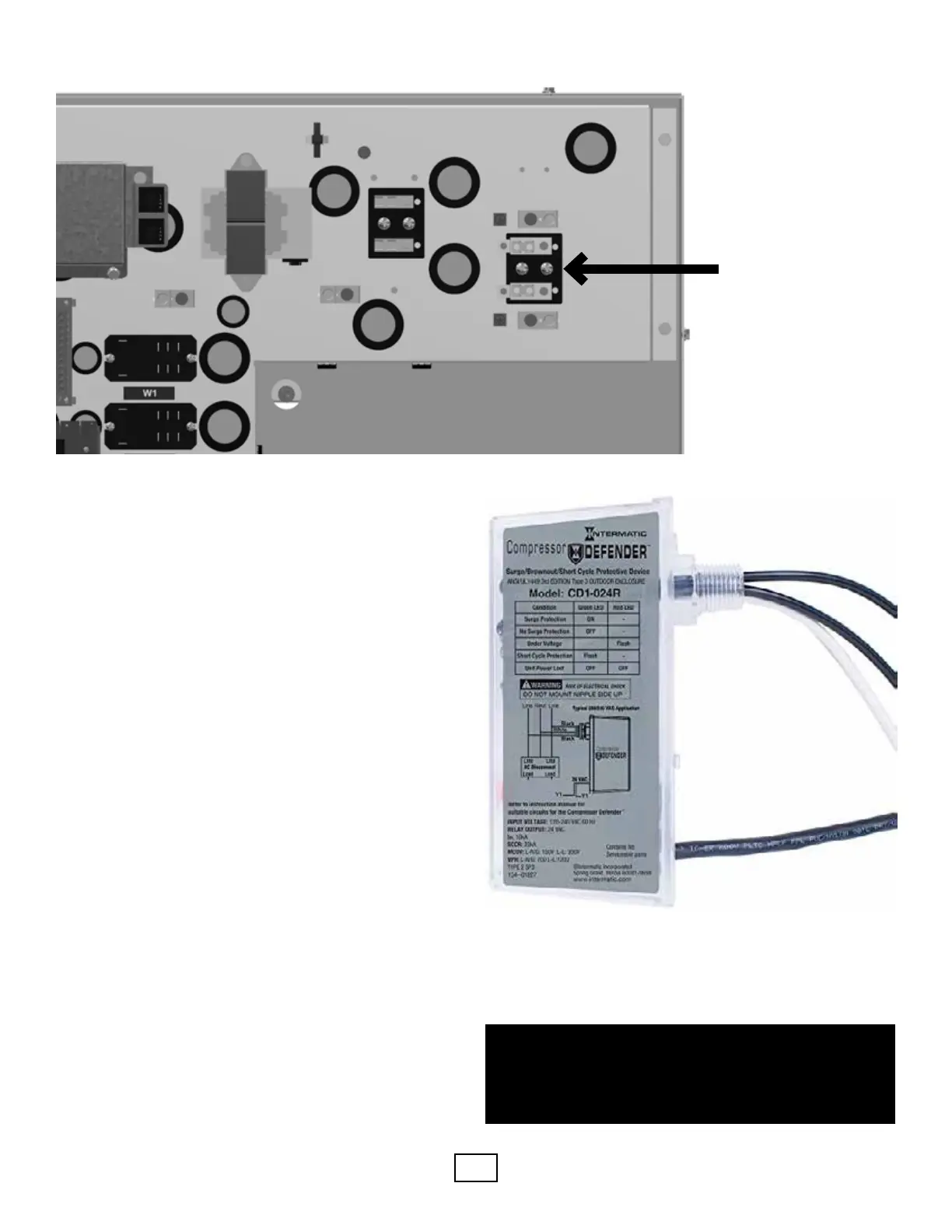

A power block is provided for incoming power to the EME/EMD.
This circuit supplies power to all of the controls, internal pump,
and immersion heater (if equipped).
Reference the electrical data for circuit sizing.
Due to the extensive use of digital controls within the EME/EMD,
Enertech recommends the use of Type 1 or Type 2 surge
protecve devices (SPD). The system may be protected as part
of a whole house surge protector or the branch circuit can be
protected using an SPD such as the Compressor Defender
. Please check the NEC Arcle 285 and
your local codes regarding the use of SPDs.
The EME/EMD eld wiring provides dry contact inputs to
interface directly with industry standard zone controllers and
aquastats. These are indicated with the following input pairs:
: Radiant heang demand input
: Air handler heang demand input (120°F outlet
temperature)
Air handler cooling demand input (low temperature water)
Domesc hot water thermistor (connect to thermistor
that is pre-installed in Turbomax tank)
These Terminals are Not Used, The outdoor
sensor is located in the Outdoor Unit, BT28 Sensor.
⚠⚠
To Next Page
