Installation Installation and Operation Manual - COMTEC
®
6000
18 Doc.-ID: COM6000_11022020_EN

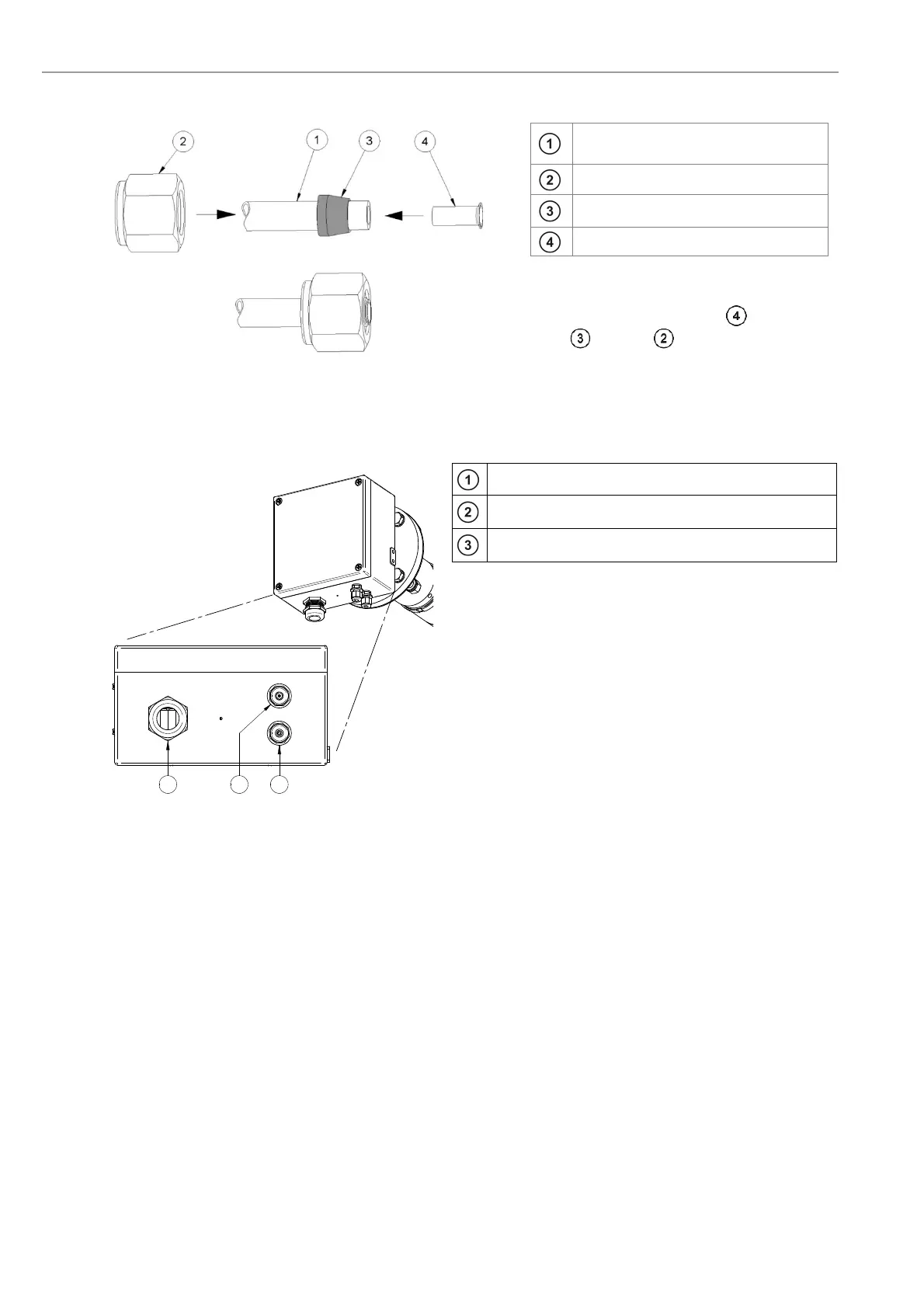

2.14 Preparation of the pneumatic Cable
Pneumatic tubing of the pneumatic
cable FEP-0002
Nut
Clamp ring
Support sleeve
Both, the pneumatic tubing for the reference
air (blue) and the test gas (green) have to be
prepared with support sleeves , clamp
rings and nuts .
Figure 13 - Preparation of pneumatic tubes
2.15 Pneumatic Connections of the Probe
Cable gland for Probe Signal Cable (FEP-0007/8)
Blue tubing (Ref. air)
Green tubing (Test gas)
The two pneumatic tubes – blue and green have to be con-
nected at the probe terminal box.
Please follow the color code:
connect the green tubing with the green ring and connect
the blue tubing to the blue ring
Figure 14 - Connection of the pneumatic tubes at the measuring probe
1 2 3
