Enotec COMTEC 6000 - Spare Parts; C.1 Mounting Plates of SME-53 Electronic Unit

Installation and Operation Manual - COMTEC
®
6000 Spare Parts
Doc.-ID: COM6000_11022020_EN 61
C Spare Parts
C.1 Mounting Plates of SME-53 Electronic Unit
Mounting Plate 1
Test gas and reference air unit with internal
pumps
TRA-0017
Transformer prim. 2*115V, sec.
115V
PLU-0028 Test air pump for SME5 720 l/h
PGM-0001
Test gas solenoid valve P01 for
SME53 - with pneumatic unit and
fittings
0-P-001508 Restrictor one way - 6 mm
DFM-0001
Internal flow meter for reference
air and test gas SME5
PLU-0025
Reference air pump for SME5
30l/h

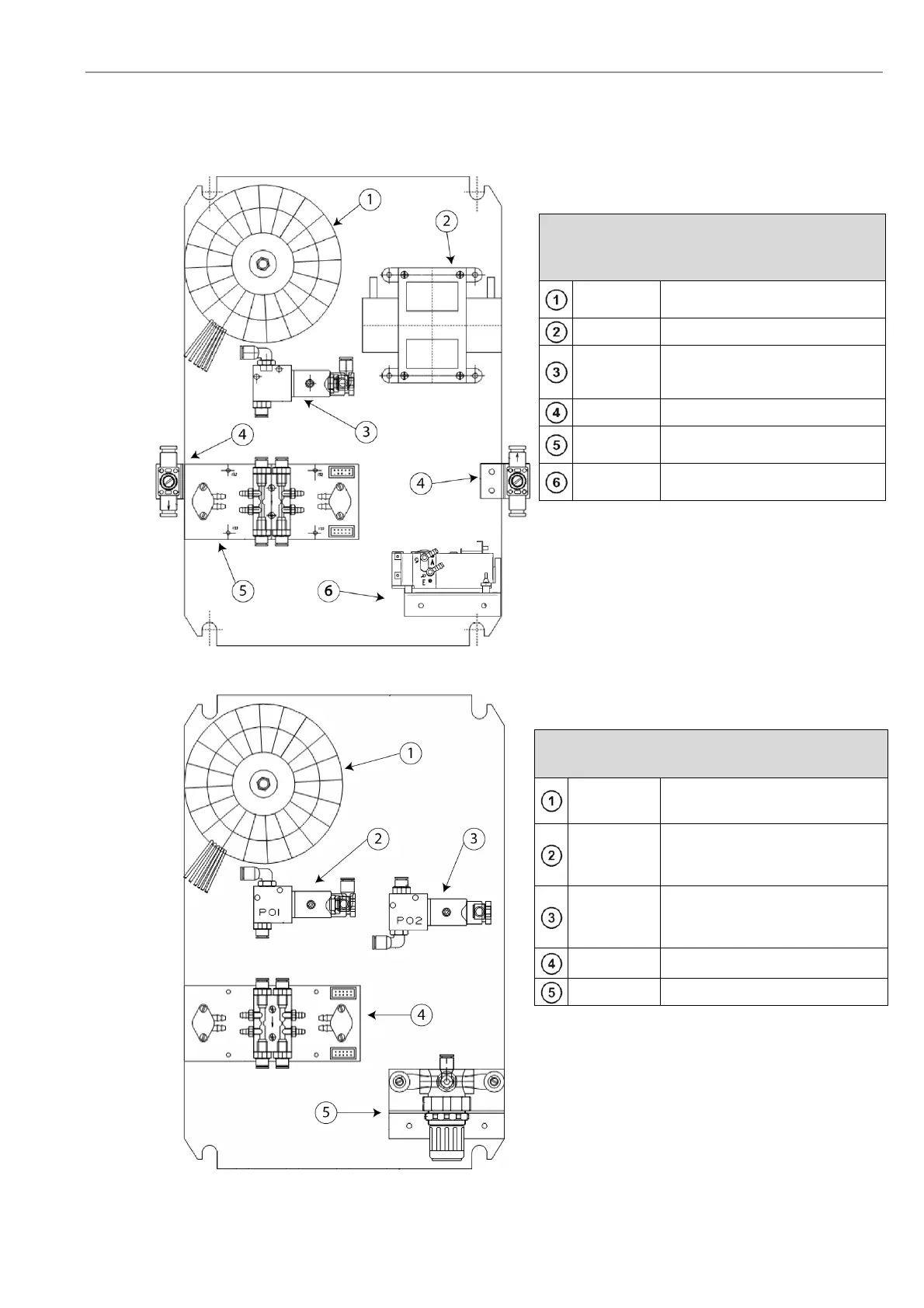

Figure 55 - Mounting plate 1 (version with pumps)
Mounting Plate 1
Test
g
as and reference air unit for instrument
TRA-0017
Transformer primary 2*115V,
sec. 115V
PGM-0001
Test gas solenoid valve P01 for
SME53 - with pneumatic unit and
fittings
PGM-0002
Test gas solenoid valve P02 for
SME5 - with instrument air unit
and fittings
DFM-0001 Internal flow meter
0-P-000752 Pressure regulator
Figure 56 - Mounting plate 1 (version with instrument
air)
