B.5 Probe components

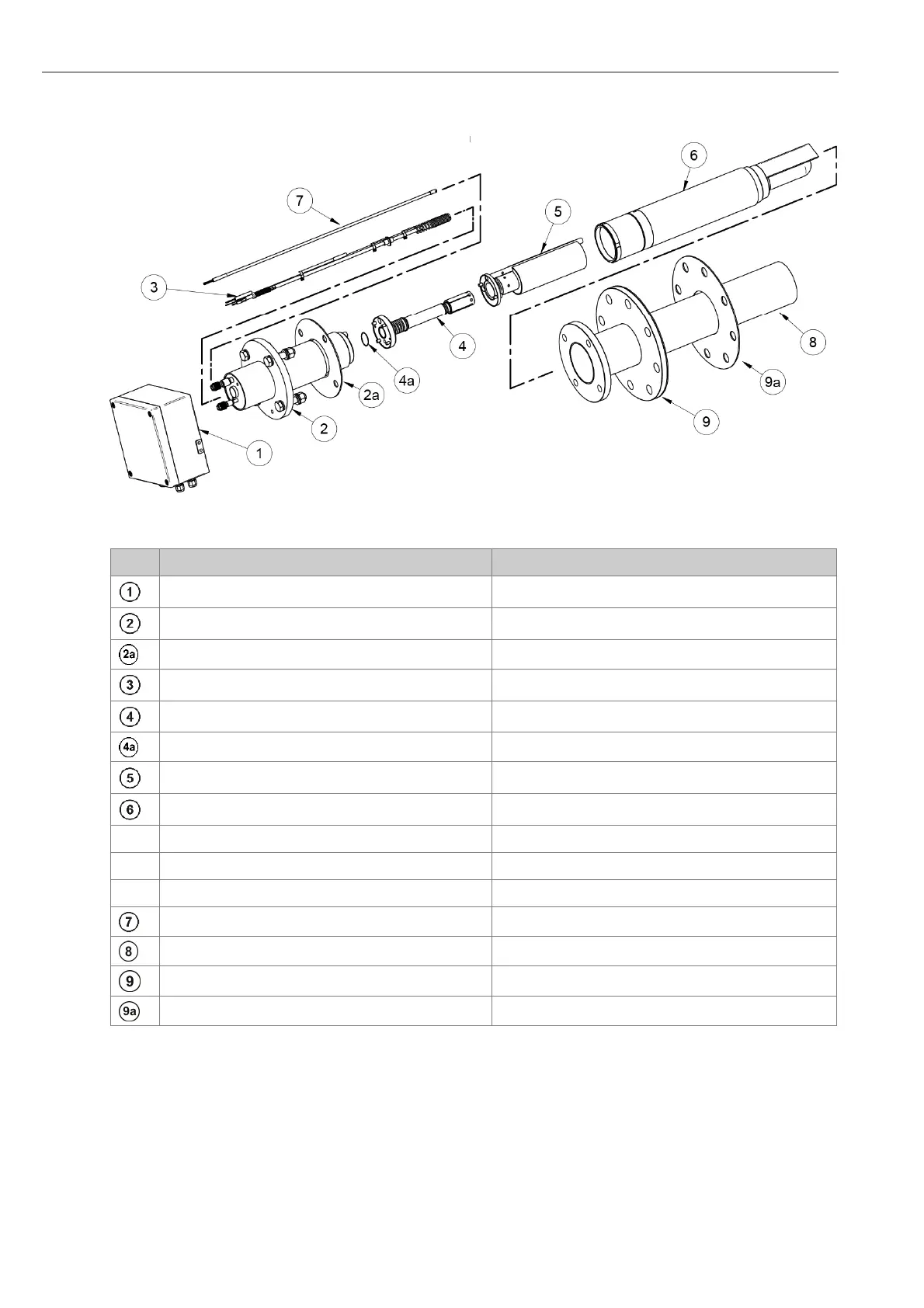

Figure 50 - Probe components
No. ENOTEC Part-No. Description
ASK-0003 Connection box
MSR-6001 Probe tube
FLD-1000 Probe flange gasket
SIK-600x (x=1,2…5) Probe inner part complete
ZO2-6011 O
2
Measuring cell complete (MLT)
MZD-0005
Metal-O-ring seal
0-R-002311 Test gas distributor with insulation tube
KES60000x0000(x=1,2…5) Filter head
KEF-200x Ceramic filter with cement
BAF-200x Basalt filter with cement
SMF-200x Sintered metal filter with cement
KES60000D000 CO
e
sensor
KES600000x00(x=1,2…5) Protection tube
KES600000x00(x=A, B…) Protection tube flange
Depending on flange type Protection tube flange gasket
