Enotec COMTEC 6000 - B.2 Dimensional Drawing of Probes KES600 x

Installation and Operation Manual - COMTEC
®
6000 Dimensional drawings
Doc.-ID: COM6000_11022020_EN 53
B.2 Dimensional drawing of probes KES600x

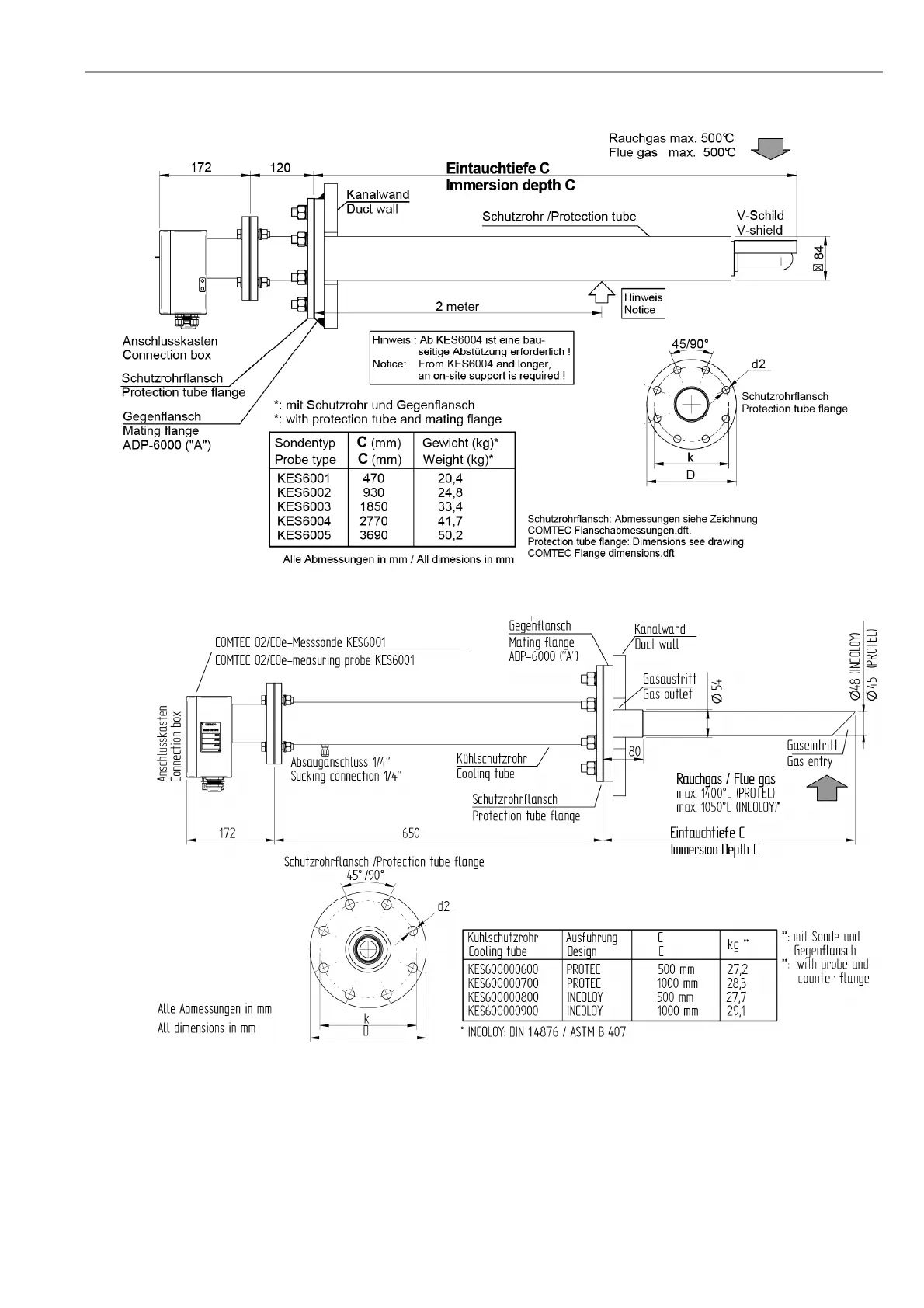

Figure 44 - Dimensional drawing of probe KES600x
Figure 45 - Dimensional drawing of probe KES600x with cooling protection tube
