Enotec COMTEC 6000 - 2.16 Pneumatic Connections of Electronic Units

Installation and Operation Manual - COMTEC
®
6000 Installation
Doc.-ID: COM6000_11022020_EN 19
2.16 Pneumatic Connections of Electronic Units
Nr. Tube Pump version Instrument air version
1/4“ Testgas in Testgas in
1/4“ Testgas out Testgas out
1/4“ Reference air in Instrument air in
1/4“ Reference air out Reference air out
1/4“ Test air in

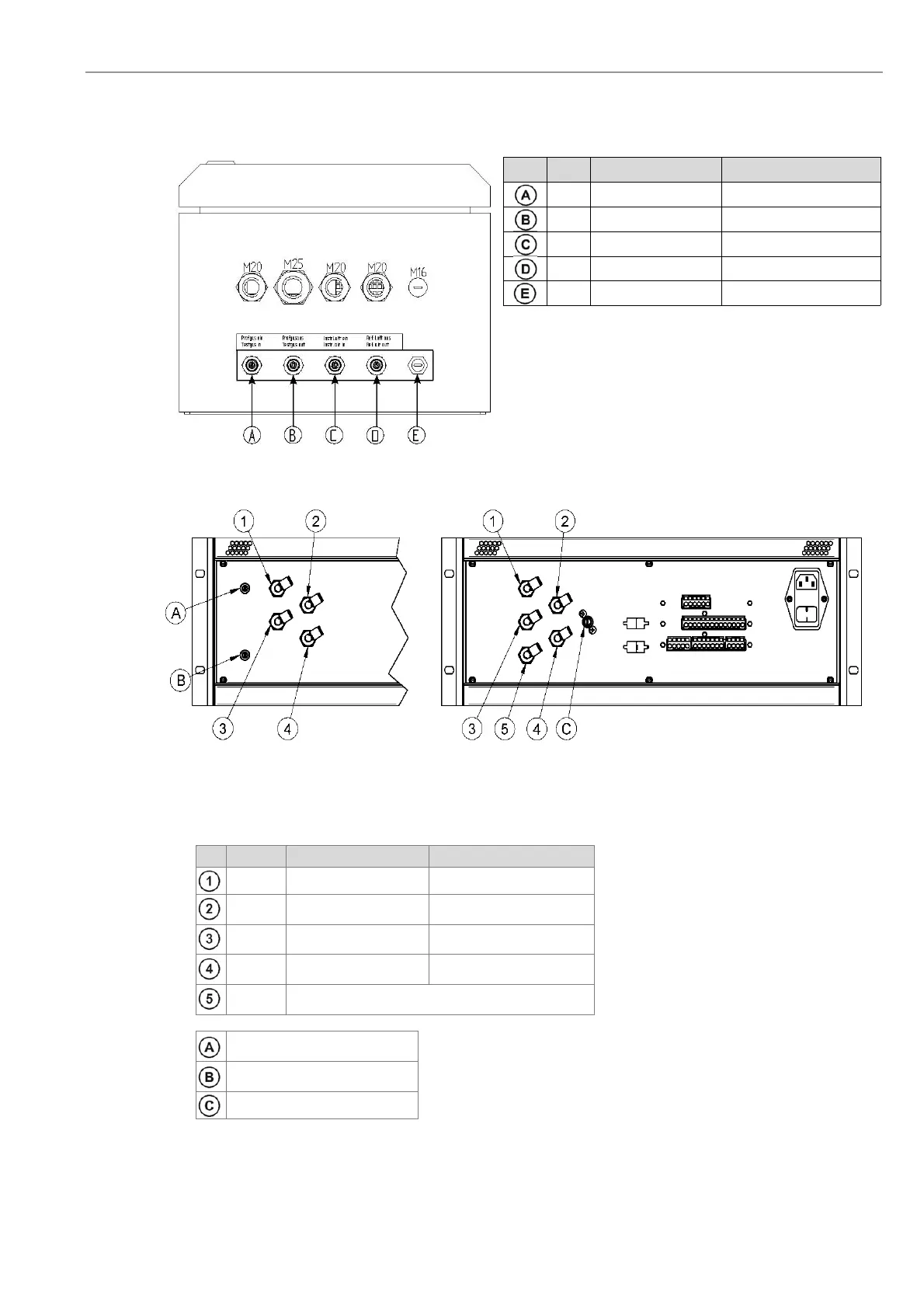

Figure 15 - Bottom view of SME-53 with pneumatic unit
Instrument air version Pump version
Figure 16 - Back view of SME-54 (19” 4HE) showing pneumatic connections.
Nr. Tube Pump version Instrument air version
1/4“ Testgas in Testgas in
1/4“
Testgas out Testgas out
1/4“ Reference air input Instrument air in
1/4“
Reference air output Reference air out
1/4“ Test air input
Regulator reference Air
Regulator test Air
Regulator test Air
