Enotec COMTEC 6000 - B.7 Gas Plans

Dimensional drawings Installation and Operation Manual - COMTEC
®
6000
58 Doc.-ID: COM6000_11022020_EN

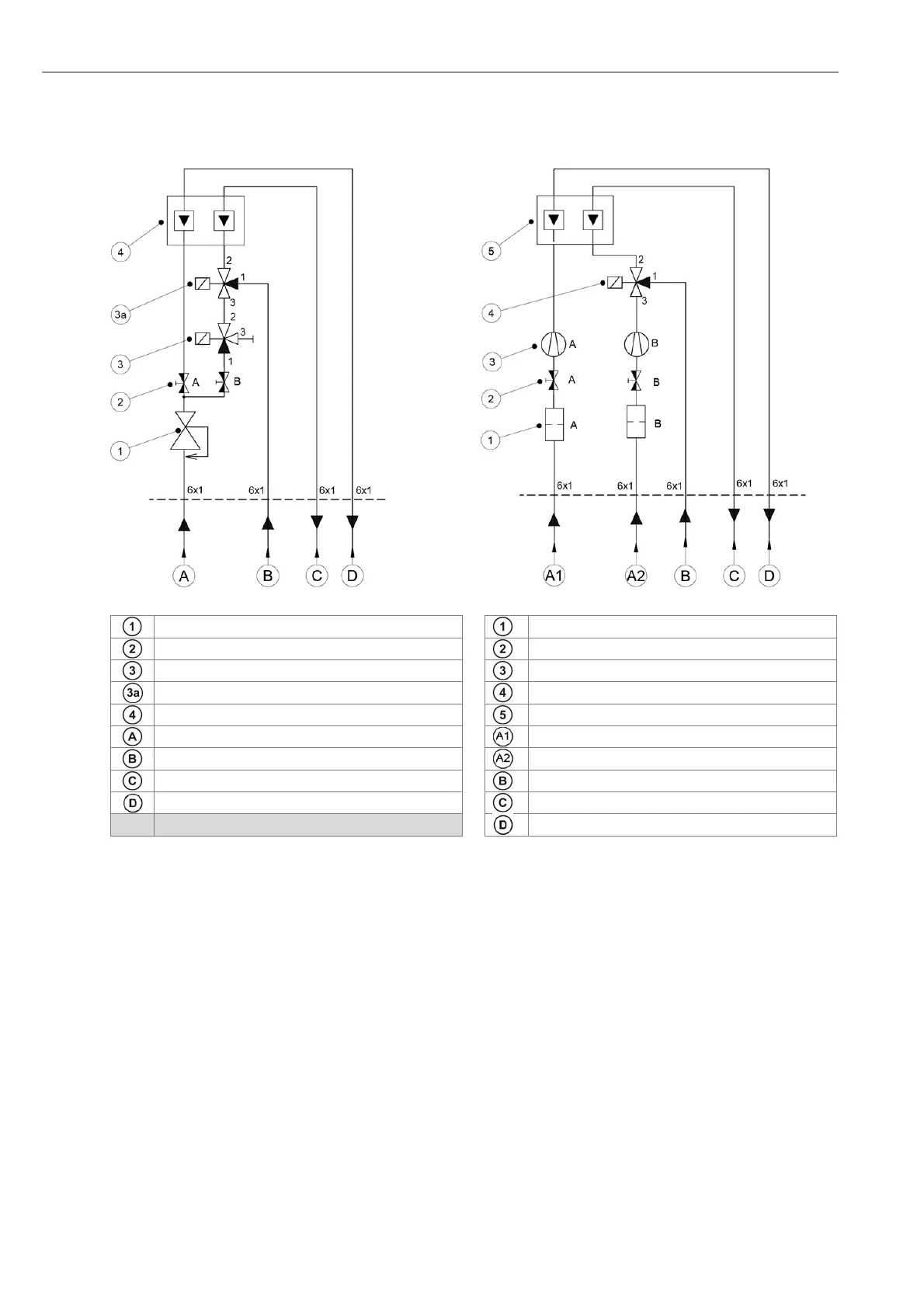

B.7 Gas plans
Pneumatic version for Instrument air
SME-50000010
Pneumatic version with pumps
SME-50000020
Pressure control valve Filter
Choke non return valve Choke non return valve
Solenoid valve 3/2 ways Reference air pump / Test air pump
Solenoid valve 3/2 ways Solenoid valve 3/2 ways
Flow meter Flow meter
Instrument air in, 4 – 10 Bar Reference air in
Test gas in, Max. 3 Bar
Test air in
Test gas out Test gas in
Reference air out Test gas out
Reference air out
Figure 52 - Gas plans
