Installation and Operation Manual - COMTEC
®
6000 Dimensional drawings
Doc.-ID: COM6000_11022020_EN 57

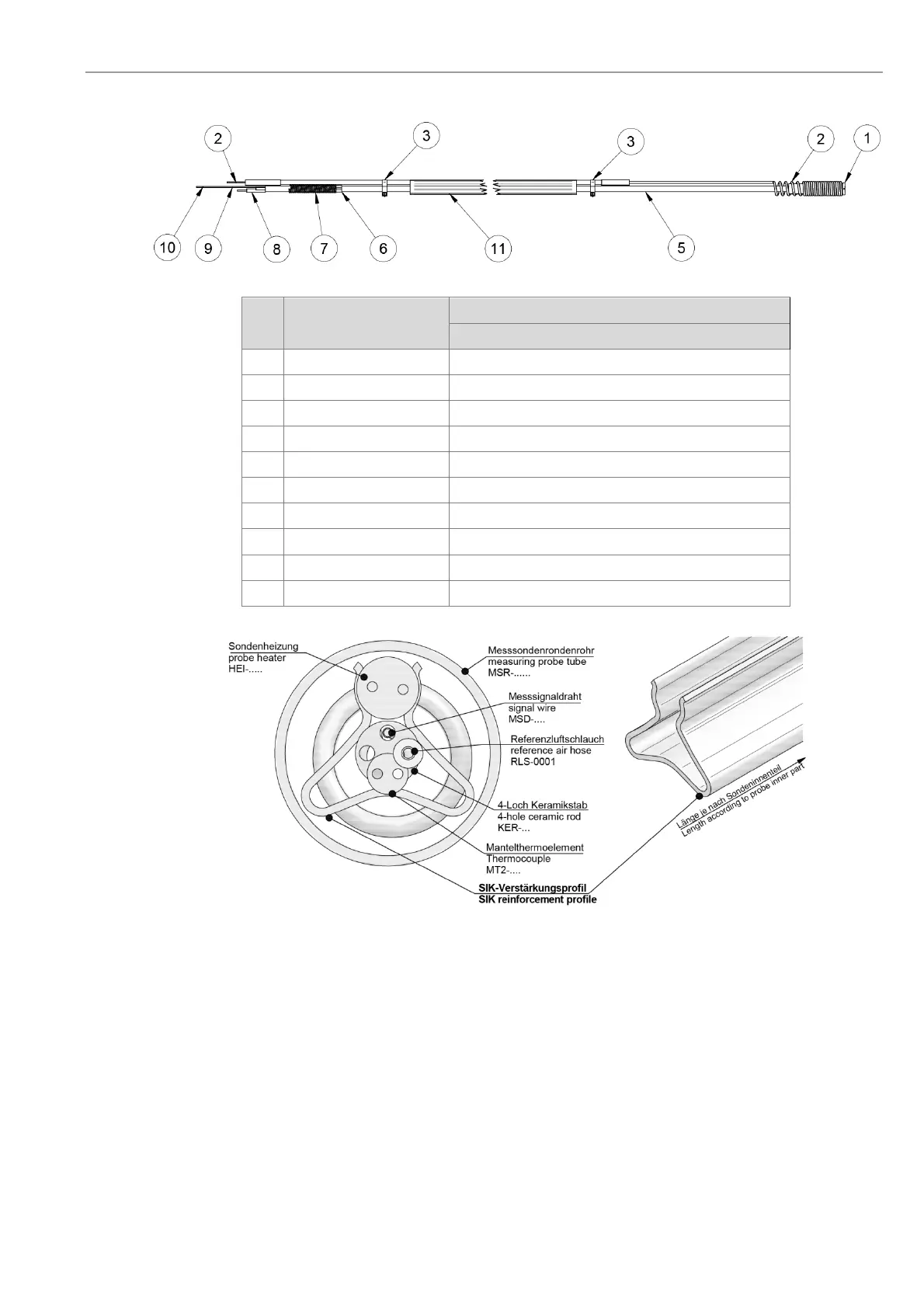

B.6 Probe inner parts assembly
Nr. Description
Article Number (depends on probe type)
KES-600X
1 Heater support tube
HZH-00002
2 Heater
HEI-200X
3 heater clamp
0-R-000474
5 Ceramic rod
KER-200X
6 Tube clamp
0-R-000500
7 Spring
0-R-000044
8 Thermocouple
MT2-200X
9 Reference air hose
RLS-0001
10 Signal wire
MSD-2001
11 Reinforcement profile
Figure 51 – Reinforced probe inner part assembly
