Dimensional drawings Installation and Operation Manual - COMTEC
®
6000
52 Doc.-ID: COM6000_11022020_EN
B Dimensional drawings
B.1 Electronic Units

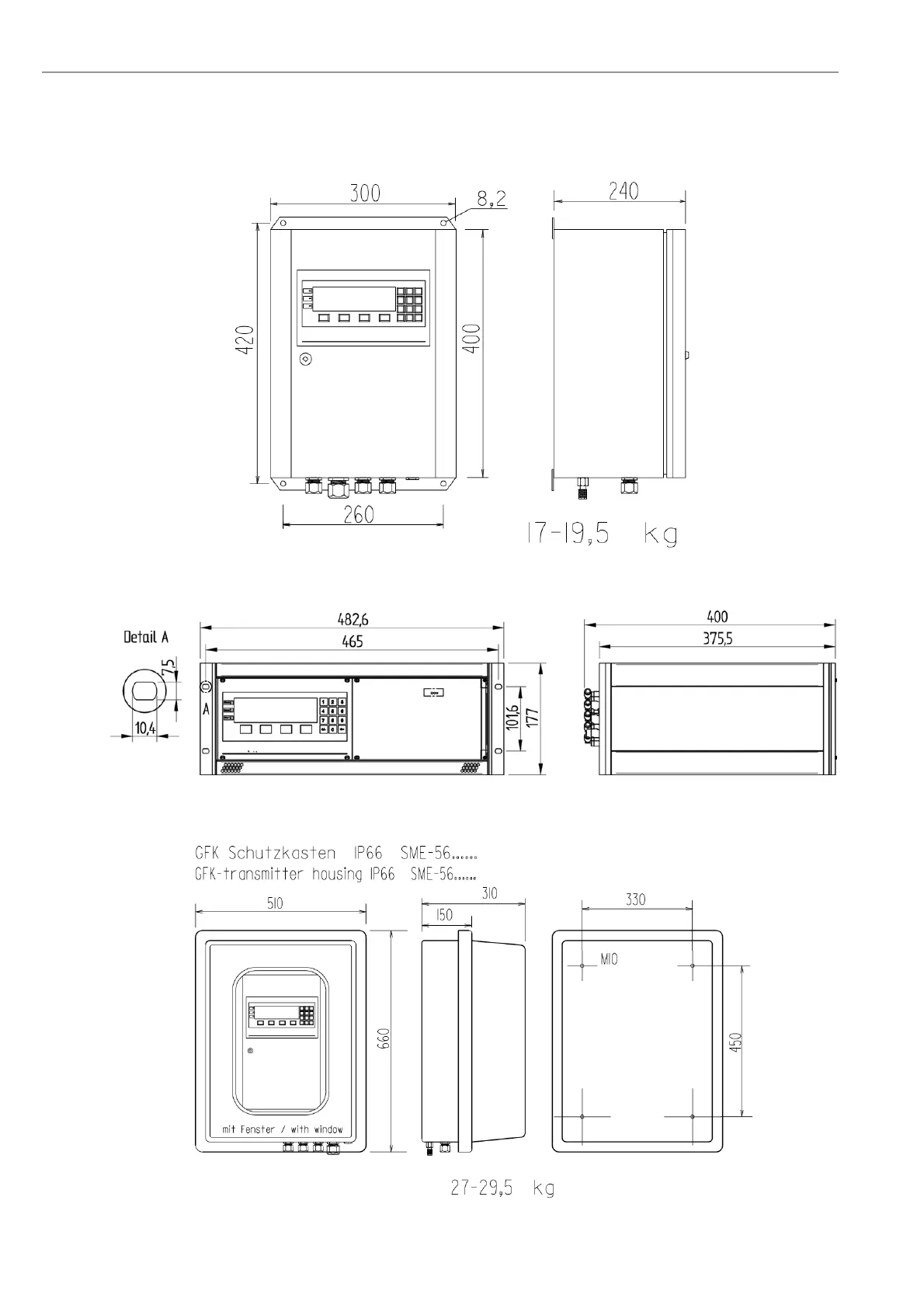

Figure 41 - Dimensions (mm) of the electronic unit SME-53
Figure 42 - Dimensions (mm) of the electronic unit in 19’’ rack - SME 54
Figure 43 - Dimensions (mm) of the Optional SME-56 GRP Cabinet
