Dimensional drawings Installation and Operation Manual - COMTEC
®
6000
54 Doc.-ID: COM6000_11022020_EN
B.3 Counter flanges

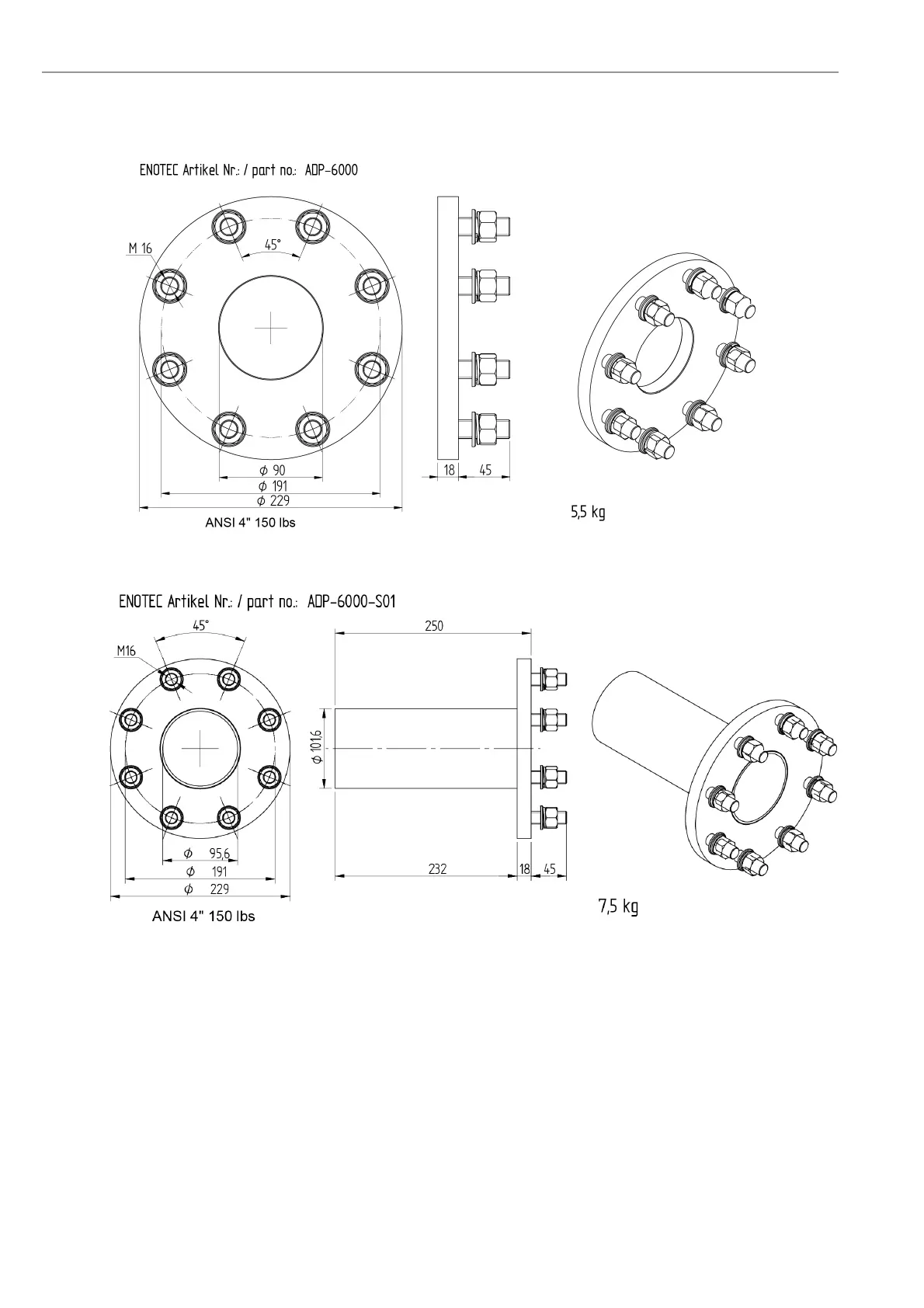

Figure 46 - Dimensions (mm) of counter flange ADP-6000
Figure 47 - Dimensions of counter flange ADP-6000-S01
