4.4.1 Calibration Menu - Display Overview
1-point calibration display: 2-point calibration displays:
Test Gas apply
Maximum measuring range is depicted
(display jumps between O
2
and CO
e
)
Representation of measured O
2
value
Representation of measured CO
e
value
Time scale showing the elapsed time of the
current calibration process. The
amount in seconds (here 240 s) refers to the
end of the time scale
Test Air apply
The flow rate currently measured
Current measured value of O
2
and CO
e
Abort the calibration
Progress bar
Process gas apply

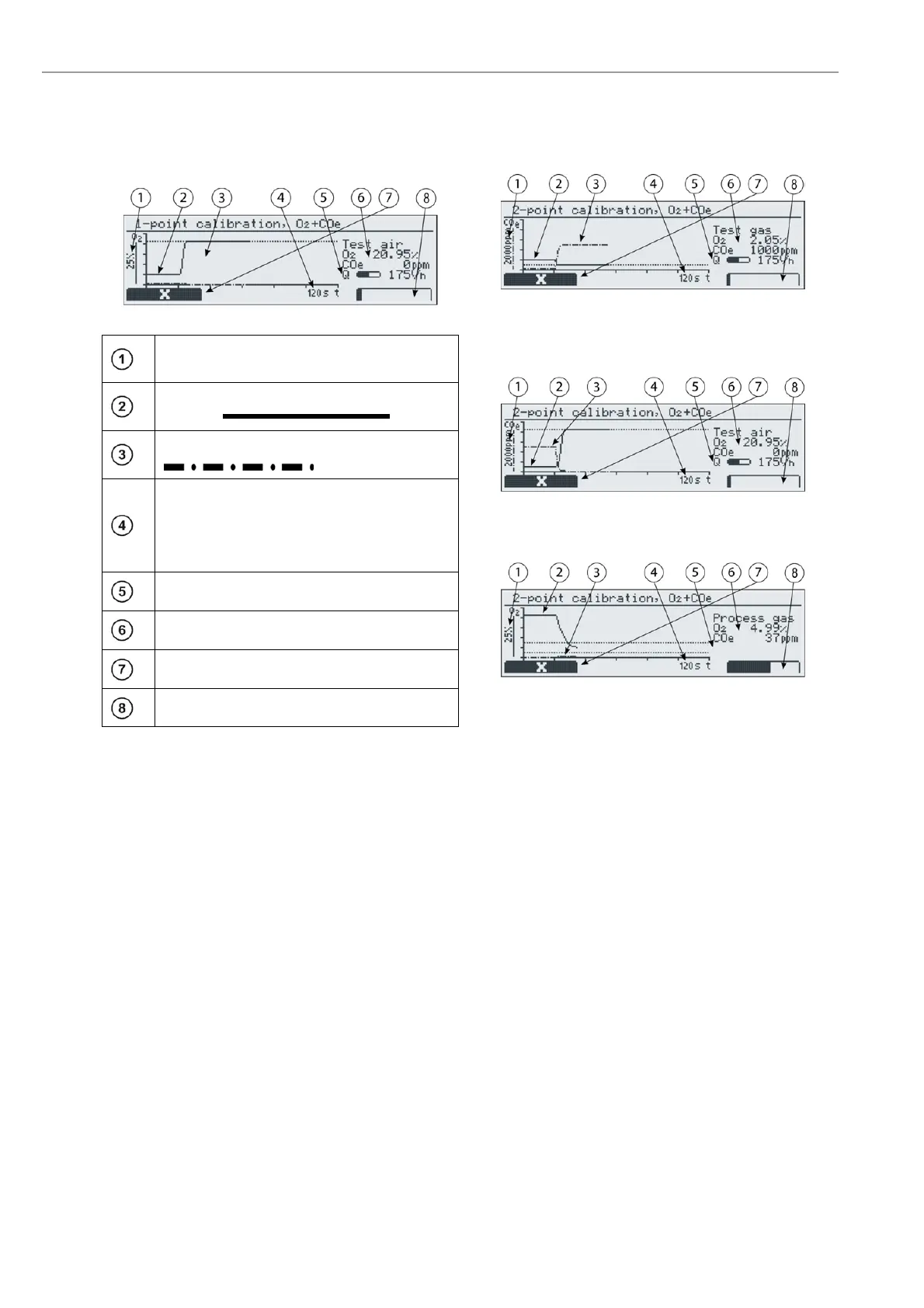

Figure 25 – Different calibration displays.
