Installation and Operation Manual - COMTEC
®
6000 System Description
Doc.-ID: COM6000_11022020_EN 5

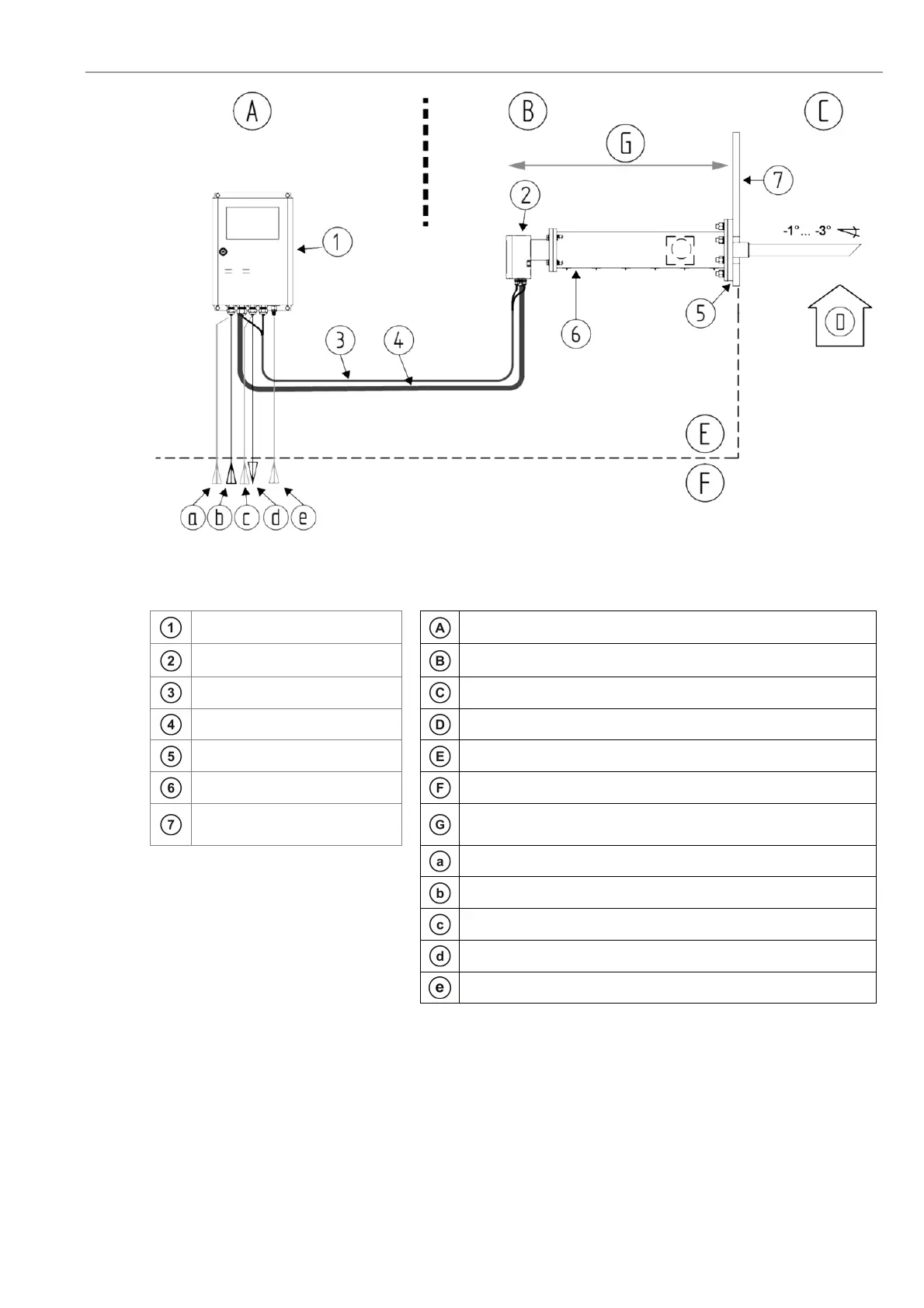

Figure 2 - System overview of the COMTEC 6000 with cooling protection tube for flue gas temperatures of up to
1400° C
Elektronik SME5 / IP66
Safe Area - Max. ambient temp.:-20 °C to +55 °C
(-4 °F to + 131 °F)
InSitu measuring probe / IP65
Safe Area - Max. ambient temp.:-40 °C to +80 °C
(-4 °F to + 167 °F)
Pneumatic cable
Duct / combustion chamber
O
2
probe signal cable
Flue gas direction – max. flue gas temperature 1600 °C
Counter flange
Manufacturer supply
Isolation: Customer
Customer supply
Duct wall
Space required: 2.0 m for standard installation.
0.8 m for 90° elbow construction
Test gas in
Power supply
Instrument air in
Output signals (analog and digital)
Test air in (only with pump version of electronics)
