Installing Optional Mini-GBICs
3-4 Hardware Installation
Installing a Mini-GBIC
ToinstallaMini‐GBICthathasanMT‐RJconnector,refertoFigure 3‐1,orfora 
Mini‐GBICwithanLCconnector,refertoFigure 3‐2,andproceedasfollows:
1. HoldtheMini‐GBICwiththetopsidepositionedasshown,andthe7‐pinedge
connectorfacing
theportslot.
2. Carefully aligntheMini‐GBICwiththeportslot.
3. PushtheMini‐GBICintotheportslotuntiltheMini‐GBIC“clicks”andlocksinto
place.

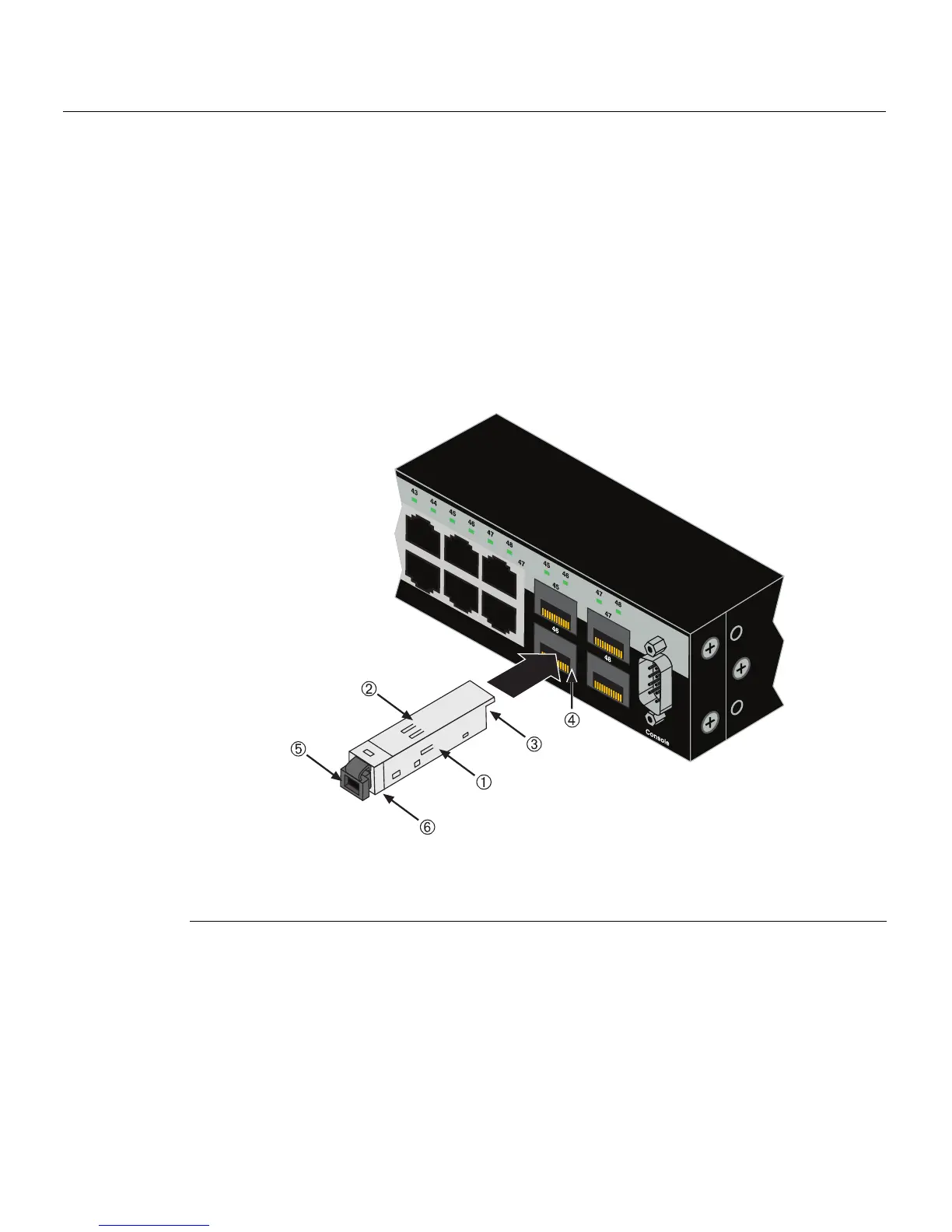

Figure 3-1 Mini-GBIC with MT-RJ Connector
1 Mini-GBIC (MGBIC-MT01) 4 Port slot
2 Mini-GBIC
, top side 5 Protective dust cover
3 7-pin edge connector (insertion side) 6 Release tab
