Connecting to the Network
SecureStack C3 Installation Guide 3-27
2. InserttheMTRJcableconnectorintotheMTRJconnectoruntilitclicksintoplace.

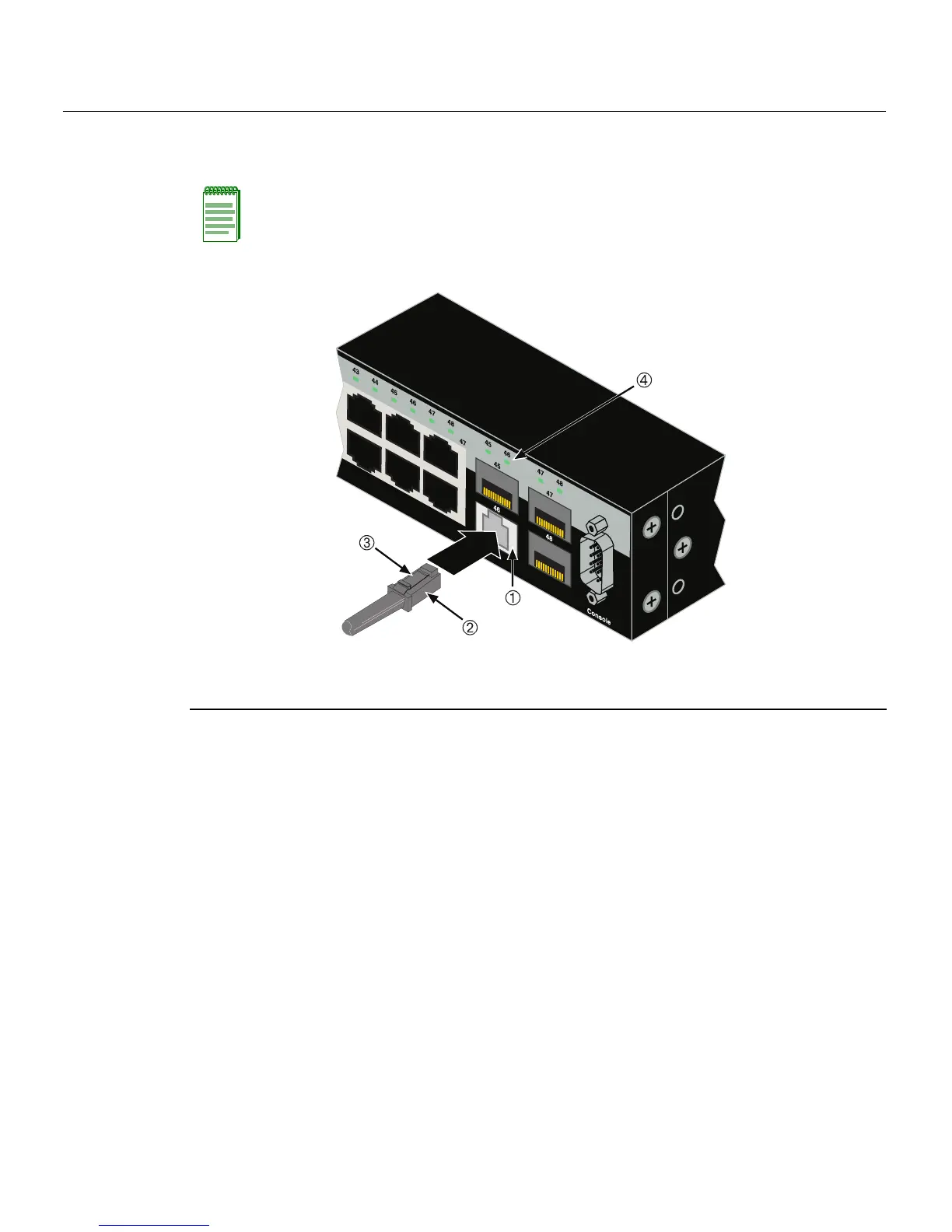

Figure 3-18 Cable Connection to MT-RJ Multimode Fiber-Optic Connectors
3. Plug theotherendofthecableintotheappropriateportontheotherdevice.Some
cablesmaybeterminatedattheotherendwithtwoseparateconnectors,oneforeach
fiberopticstrand.In
thiscase,ensurethatthetransmitfiberopticstrandisconnected
tothereceiveportandthereceivefiberopticstrandtothetransmitport.
4. VerifythatalinkexistsbycheckingthattheportLink/ActivityLEDison(blinking
greenorsolidgreen).IftheLink/ActivityLEDisoff,perform
thefollowingstepsuntil
itison:
a. VerifythatthedeviceattheotherendofthesegmentisONandconnectedtothe
segment.
b. Ifthereareseparatefiberopticconnectionsontheotherdevice,checkthe
crossoverofthecables.Swapthecableconnectionsifnecessary.
c. Checkthat thefiber
opticconnectionmeetsthedBlossandcablespecifications
outlinedintheCablingGuideformultimodecabling.Toobtainthisdocument,
refertoRelatedDocumentsonpage xiv.
Note: To remove the MT-RJ cable connector, press on its release tab and pull out the
cable connector.
1 Mini-GBIC MT-RJ port connector 3 Release tab
2 MT-RJ cable connector 4 Link/Activity LED
