Enterasys SecureStack C3G124-24P User Manual

Connecting to the Network
3-24 Hardware Installation

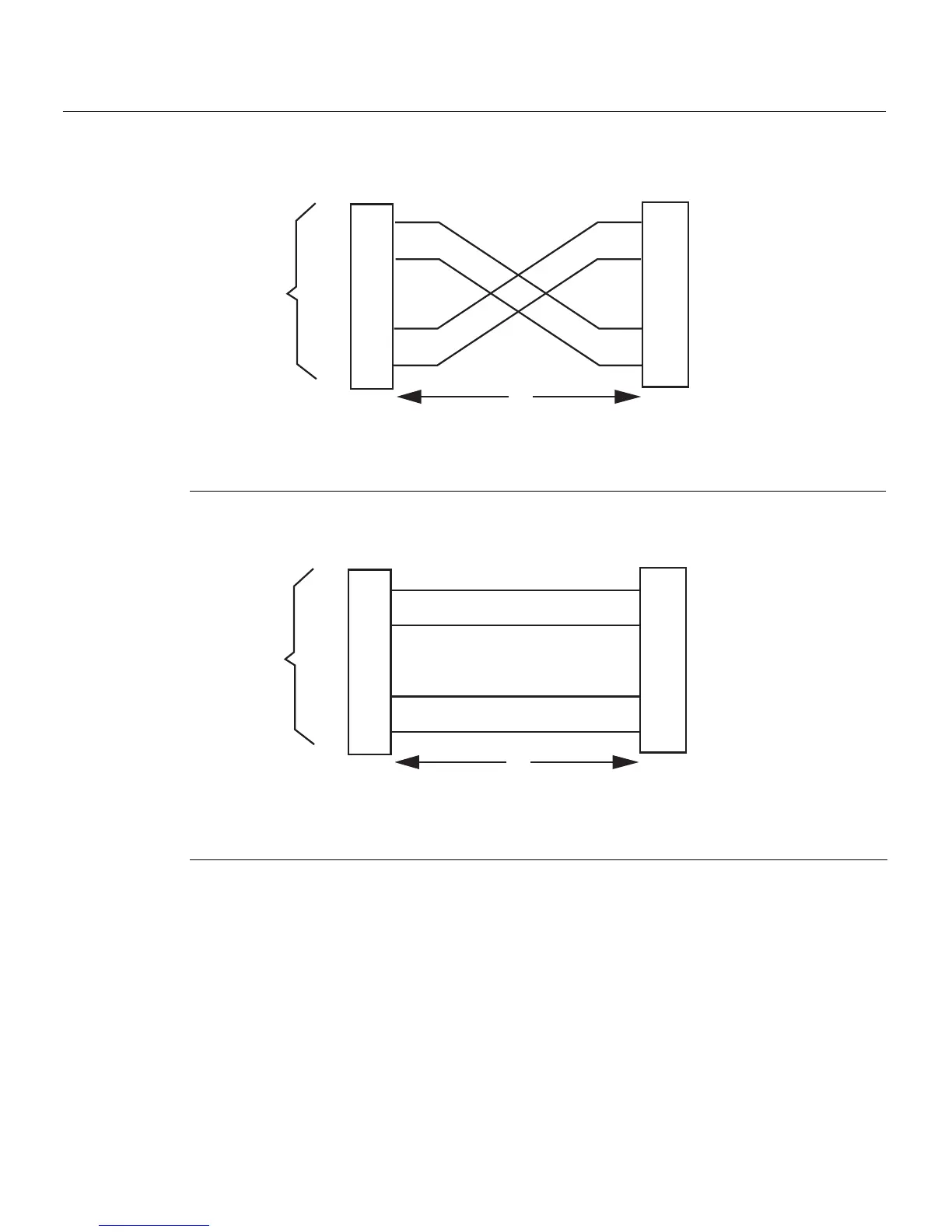

Figure 3-14 Four-Wire Crossover Cable RJ45 Pinouts for 10/100BASE-TX
Figure 3-15 Four-Wire Straight-Through Cable RJ45 Pinouts for 10/100BASE-TX
1 RJ45 switch port 3 RJ45-to-RJ45 crossover cable
2 Other device port 4 RX+/RX- and TX+/TX-connections
These connections must share a common color pair.
1 RJ45 switch port 3 RJ45-to-RJ45 straight-through cable
2 Other device port 4 RX+/RX- and TX+/TX-connections
These connections must share a common color pair.
TX+
TX
RX+
RX 2
1
3
6
TX+
TX
2
1
3
6
RX+
RX
ÀÁ
Â
Ã
TX+
TX
RX+
RX 2
1
3
6
TX+
TX
2
1
3
6
3677122
RX+
RX
ÀÁ
Â
Ã
