Enterasys SecureStack C3G124-24P User Manual

Configuring Switches in a Stack
3-12 Hardware Installation

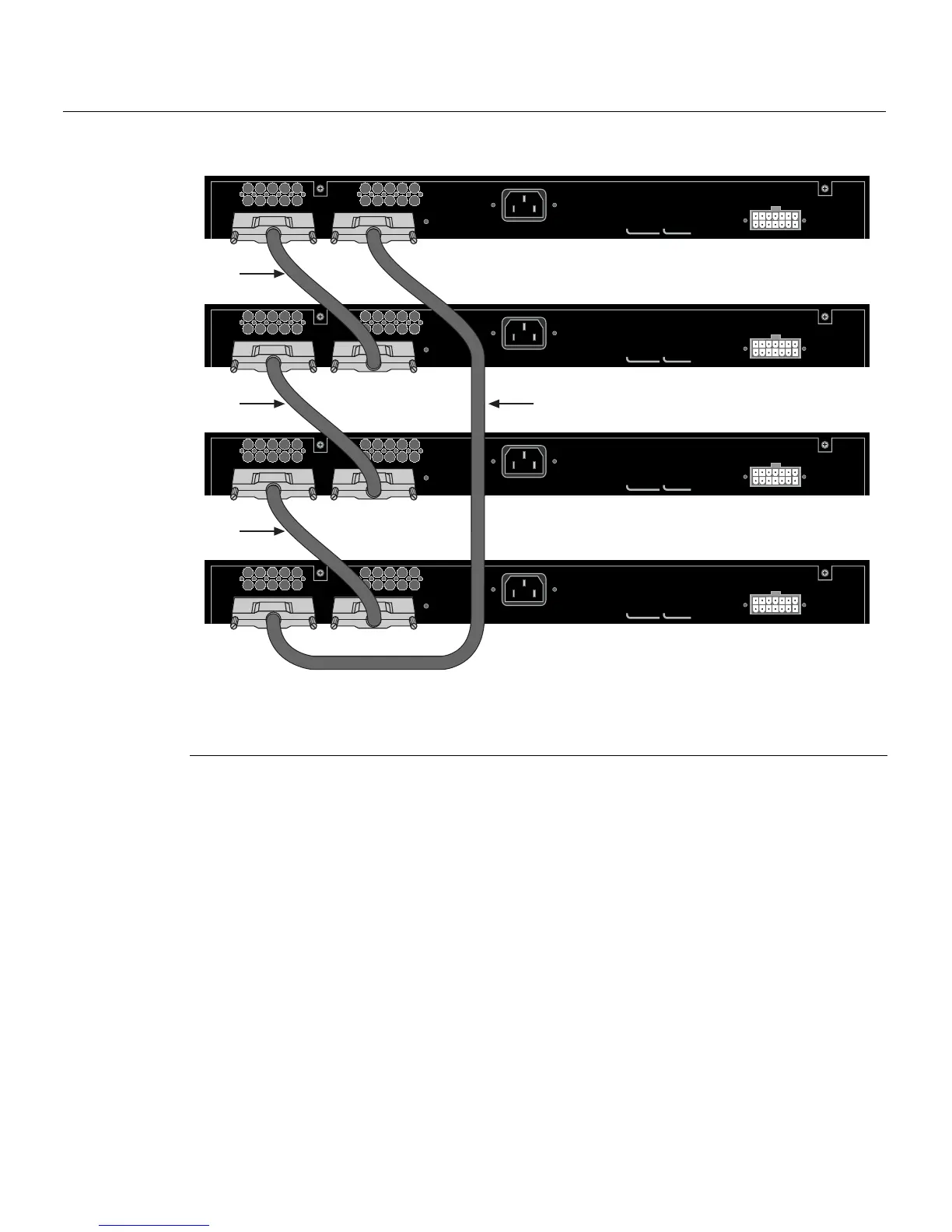

Figure 3-7 High-Speed Stacking Cable Connections
Afterconnectingthecablestothestackingports,proceedto “ConnectingACandPoE
Power”onpage 3‐15forinstructions.
Configuring Switches in a Stack
TheinformationinthefollowingsectionsisimportanttounderstandSecureStackswitch
operationandinstallationsinastackinstallation.
About SecureStack Switch Operation in a Stack
TheSecureStackproductsarestackableswitchesthatcanbeadaptedandscaledtohelp
meetyournetworkneeds.Theseswitchesprovideamanagementplatformanduplinkto
anetworkbackboneforastackedgroupofuptoeightswitches.
1 High-speed stacking cable 4 STACK DOWN connector at top of stack
2 STACK DOWN connector 5 STACK UP connector at bottom of stack
3 STACK UP connector
