Connecting to the Network
SecureStack C3 Installation Guide 3-25

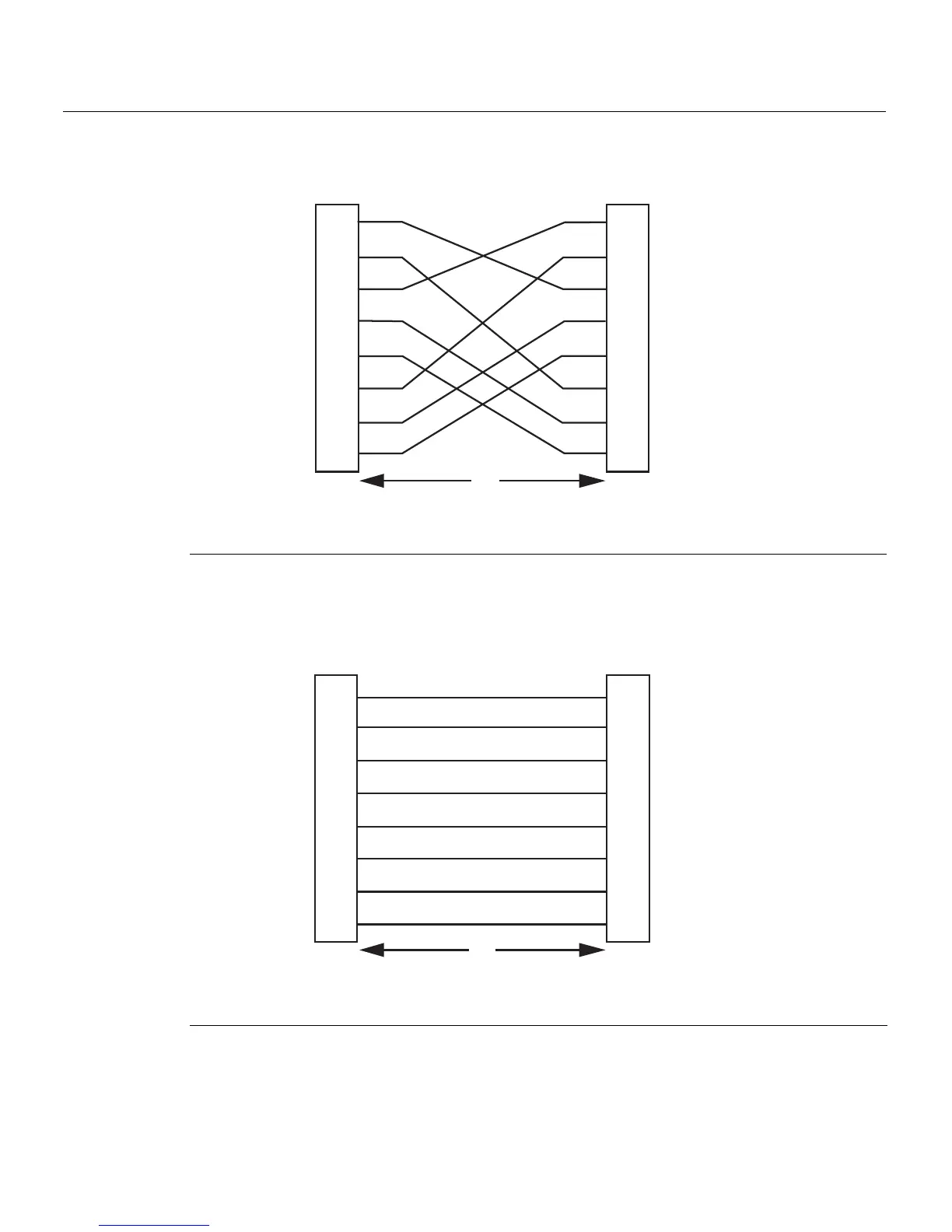

Figure 3-16 Eight-Wire Crossover Cable RJ45 Pinouts for 10/100/1000BASE-TX
Figure 3-17 Eight-Wire Straight-Through Cable RJ45 Pinouts for 10/100/
1000BASE-TX
1 RJ45 device port 3 RJ45-to-RJ45 crossover cable
2 Other device port
1 RJ45 device port 3 RJ45-to-RJ45 straight-through cable
2 Other device port
3680 28
2
1
3
6
4
5
7
8
TX1+
TX2+
RX4-
RX1-
TX4+
RX3-
TX3+
RX2-
TX2+
TX1+
RX3-
RX2-
TX3+
RX4-
TX4+
RX1-
2
1
3
6
4
5
7
8
Á
À
Â
TX1+
TX2+
RX4-
RX1-
TX4+
RX3-
TX3+
RX2-
2
1
3
6
4
5
7
8
TX2+
TX1+
RX3-
RX2-
TX3+
RX4-
TX4+
RX1-
2
1
3
6
4
5
7
8
À
Â
Á
