Using LANVIEW
4-2 Troubleshooting

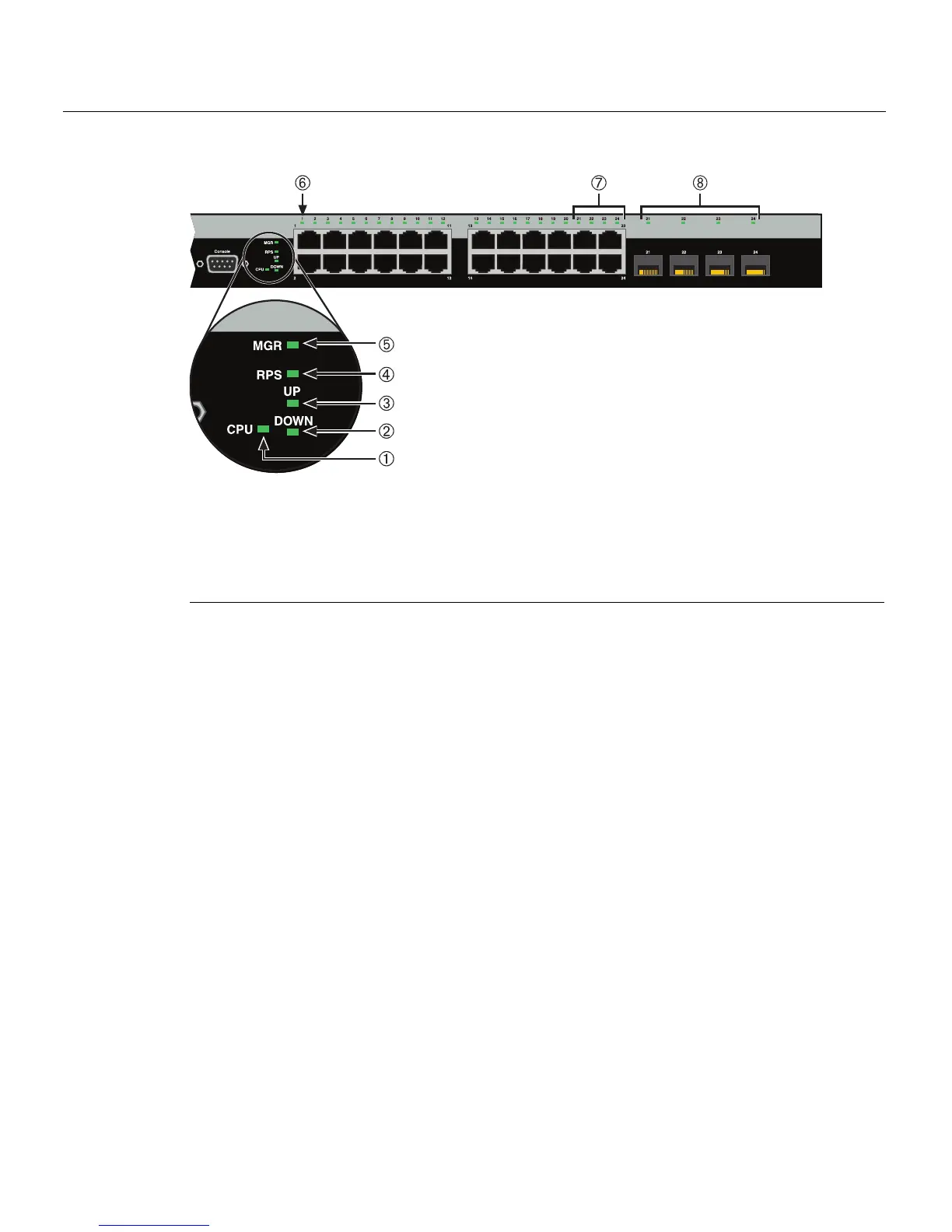

Figure 4-1 C3G124-24PLANVIEW LEDs
1 CPU LED 6 Link/Activity/PoE LED for 10/100/1000 Mbps, RJ45 port 1
2 STACK DOWN LED 7 Link/Activity/PoE LEDs for 10/100/1000 Mbps
3 STACK UP LED RJ45 ports 21 through 24
4 RPS LED for redundant power
source status
8 Link/Activity LEDs for 1-Gbps Mini-GBIC ports 21
through 24
1
1. These Mini-GBIC ports will only establish a link when the RJ45 port equivalent is not linked on a
C3G124-24P. (For example, when Mini-GBIC port 24 is linked, RJ45 port 24 is deactivated. When
the Mini-GBIC is not linked, the RJ45 port 24 is reactivated and can establish a link as long as the
Mini-GBIC port 24 is not linked first.)
5 Manager LED
C3G124-24P
