Using LANVIEW
SecureStack C3 Installation Guide 4-3

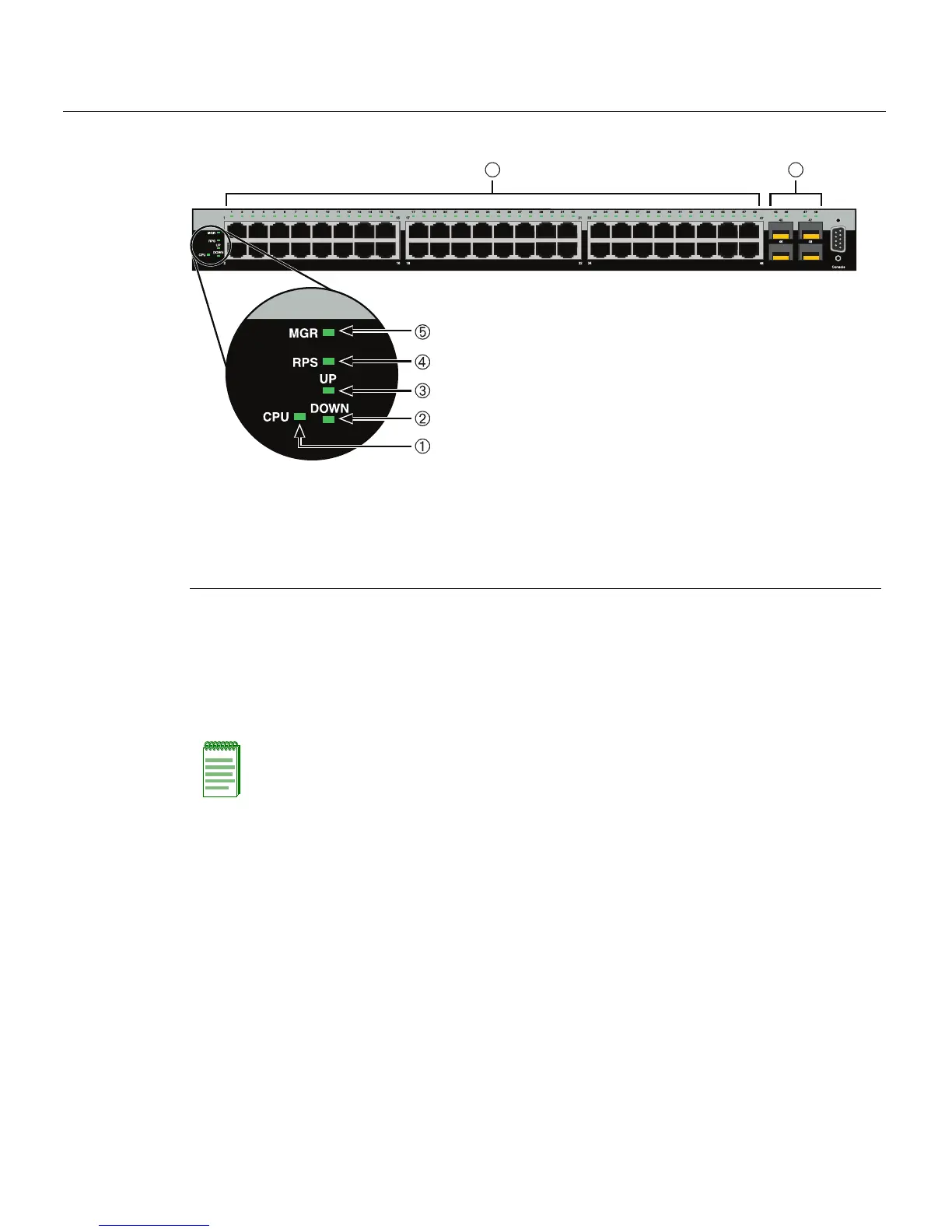

Figure 4-2 C3G124-48P LANVIEW LEDs
Table 4‐1describestheLEDindicationsandprovidesrecommendedactionsas
appropriate.
1 CPU LED 5 Manager LED
2 STACK DOWN LED 6 Link/Activity LEDs for 10/100/1000 Mbps RJ45
3 STACK UP LED ports 1 through 48
4 RPS LED for redundant power-source
status
7 Link/Activity LEDs for 1-Gbps Mini-GBIC ports
45 through 48
1
1. These Mini-GBIC ports will only establish a link when the RJ45 port equivalent is not linked on a
C3G124-48P. (For example, when Mini-GBIC port 45 is linked, RJ45 port 45 is deactivated. When
the Mini-GBIC is not linked, the RJ45 port 45 is reactivated and can establish a link as long as the
Mini-GBIC port 45 is not linked first.)
Note: The terms flashing, blinking, and solid used in Tabl e 4 - 1 indicate the following:
Flashing: LED is flashing randomly.
Blinking: LED is flashing at a steady rate (approximately 50% on, 50% off).
Solid: LED is on steady and not pulsing.
C3G124-48P
6
7
To Next Page
