Epson EB-PU2220B User Manual

Projector Parts and Functions
15

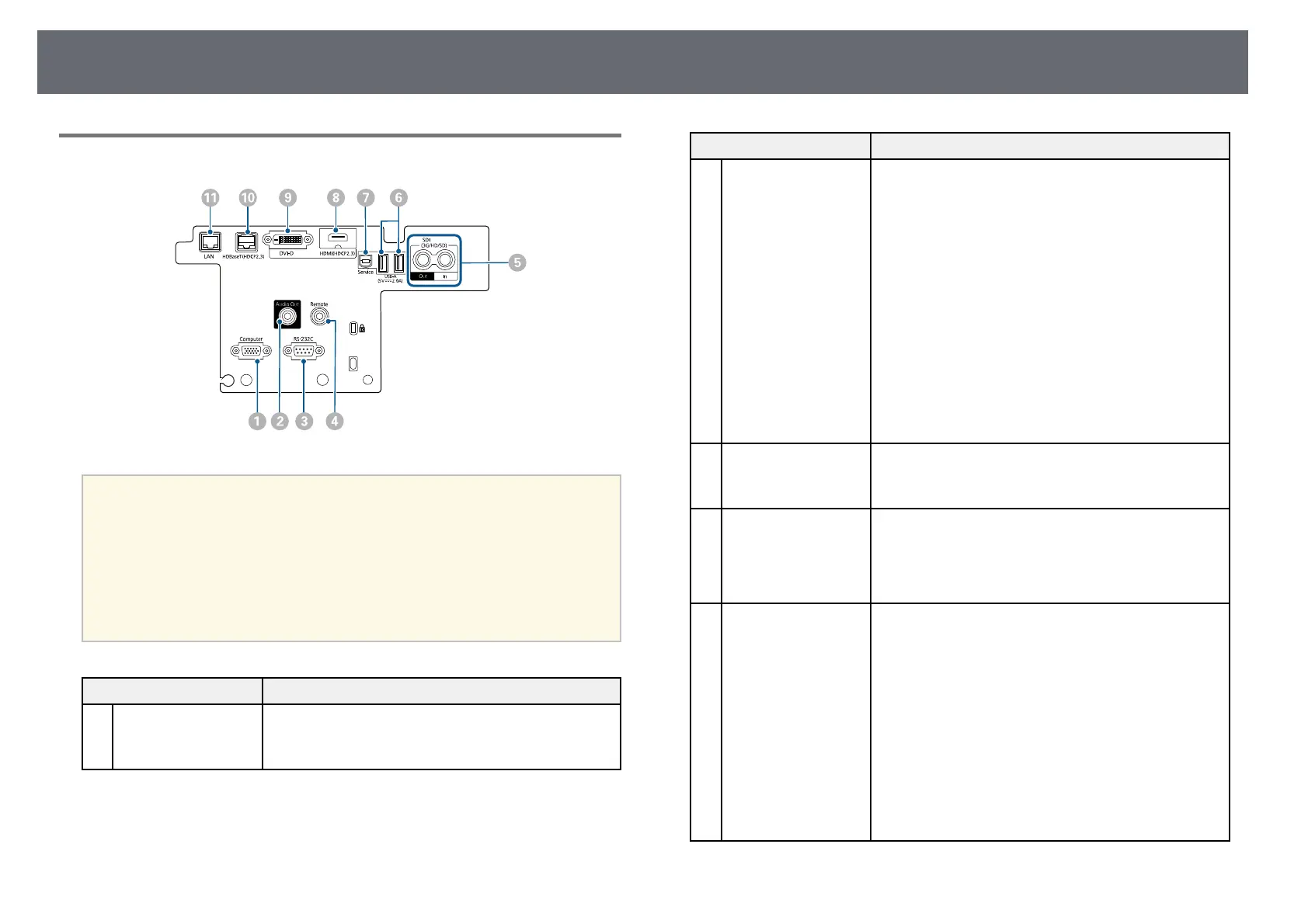

Projector Parts - Interface
Attention
• Check the shape and orientation of the connectors on any cable you plan to
connect. Do not force a connector into a port if it does not fit. The device or
your projector could be damaged or could malfunction.
• Do not turn on the input source before connecting it to the projector. Doing so
could damage the projector.
• If necessary, use an adapter that allows you to connect to an input port on the
projector.
Name Function
A
Computer port
(Mini D-Sub15-pin,
female)
Inputs image signals from a computer.
Name Function
B
Audio Out port
(Stereo mini pin jack)
Outputs audio from the current input source to an
external speaker. You can also connect the projector to
an amplifier with speakers.
To output audio from the speaker connected to this
port, select Projector as the Audio Out Device setting
in the projector's Settings menu. When an audio/video
system is not connected to the projector, audio is
output from the speaker connected to this port even if
Audio Out Device is set to AV System.
s Settings > HDMI Link > Audio Out Device
If you want to output audio for the HDMI source from
the external speakers when the projector is turned off,
select Always On as the A/V Output setting in the
projector's Extended menu.
s Extended > A/V Settings > A/V Output
C
RS-232C port
(Mini D-Sub 9-pin,
male)
Use to connect an RS-232C cable to control the
projector from a computer.
D
Remote port
(Stereo mini pin jack)
Connects the remote control to the projector using a
commercially available 3.5 mm stereo mini-jack audio
cable and inputs signals from the remote control.
When the remote control is connected, the remote
receiver on the projector is disabled.
E
SDI Out/In ports
(BNC)
(EB‑PU2220B only)
Inputs video signals from SDI compatible video
equipment.
Outputs video signals input from the SDI In port to an
external monitor.
You can connect two projectors in a chain using a SDI
cable.
If you want to output images to an external monitor
when the projector is turned off, select Always On as
the A/V Output setting in the projector's Extended
menu.
s Extended > A/V Settings > A/V Output

Epson EB-PU2220B Specifications

General

Matrix type	3-panel (p-Si TFT active)
Number of colors	1.07 billion colors
Native aspect ratio	-
Projection technology	3LCD
Supported aspect ratios	4:3, 16:10, 16:9
Contrast ratio (typical)	2500000:1
Screen size compatibility	- \
Projector native resolution	WUXGA (1920x1200)
Keystone correction, vertical	±45 °
Keystone correction, horizontal	±30 °
Light source type	Laser
Service life of light source	20000 h
Focus	Auto
Throw ratio	1.57 – 2.56
Optical zoom	1.6 x
Focal length range	14.8 – 17.7 mm
Aperture range (F-F)	2 - 2.1
Interchangeable lens	Yes
Vertical lens shift range	-60 - 60 %
Horizontal lens shift range	-18 - 18 %
Number of optional lenses supported	9
Supported video modes	480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160i, 2160p
Supported graphics resolutions	640 x 480 (VGA), 720 x 576, 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 3840 x 2160, 4096 x 2160
HDMI connector type	Full-size
Serial interface type	RS-232C
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
USB 2.0 Type-A ports quantity	2
Noise level	45 dB
HDCP version	2.3
Projection modes	Ceiling, Front, Rear
Noise level (economic mode)	37 dB
Product type	Large venue projector
Product color	Black
Market positioning	Presentation
Cable lock slot type	Kensington
Power source	AC
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	2 W
Power consumption (typical)	1301 W
Power consumption (economy mode)	899 W
Operating temperature (T-T)	0 - 50 °C
Sustainability certificates	RoHS

Weight and Dimensions

Depth	493 mm
Width	587 mm
Height	218 mm
Weight	24400 g
