Projector Parts and Functions
17

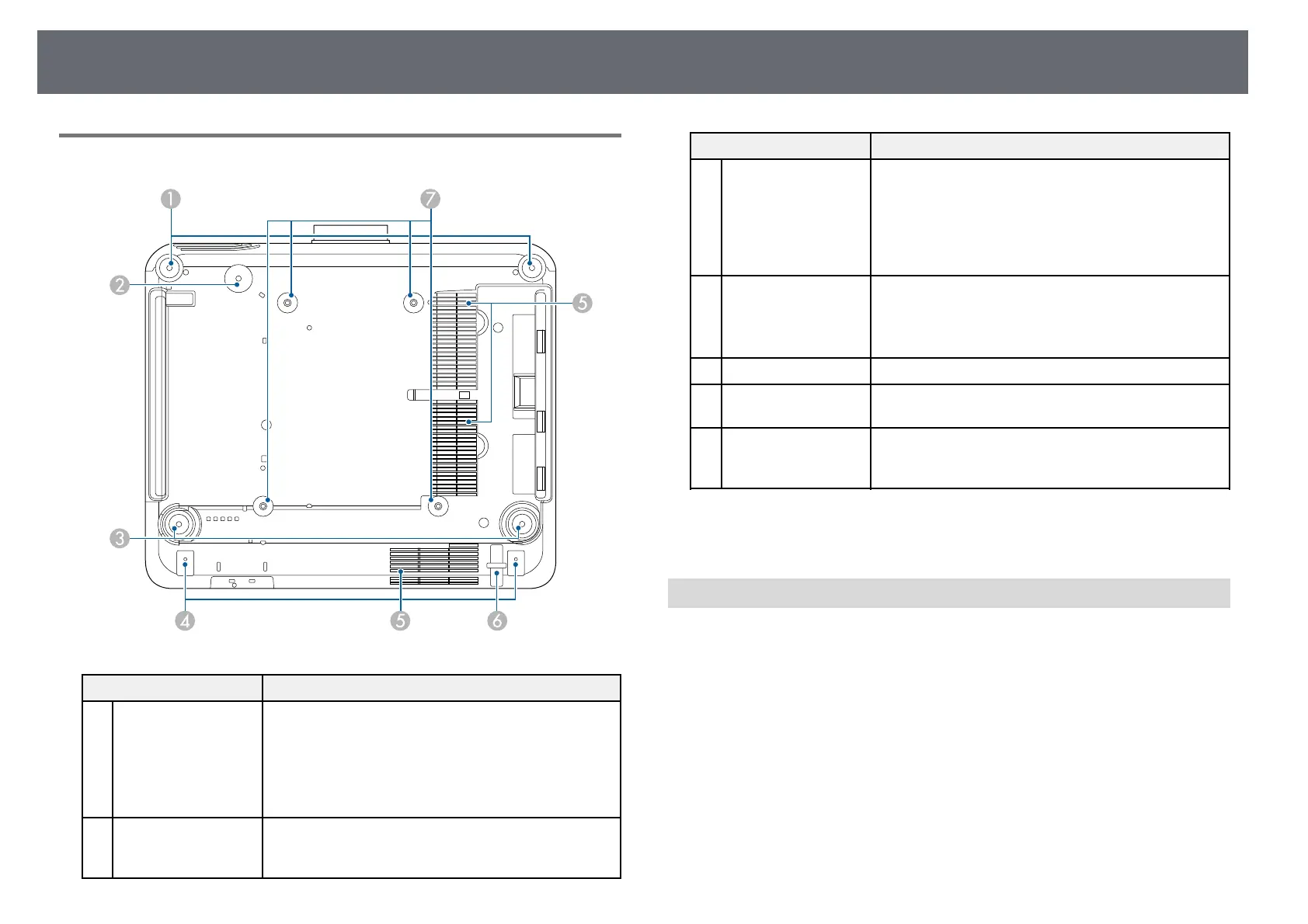

Projector Parts - Base
Name Function
A
Front feet When the projector is set up on a surface such as a
desk, turn to extend and retract the feet to adjust the
horizontal tilt.
You can adjust the tilt within a range of ±5°. The front
feet are detachable. You can extend the feet by
approximately 35 mm before they detach.
B
Screw hole (for the
ring of the safety
wire)
Screw hole for securing the ring of the safety wire to
prevent the projector from falling from the ceiling or
wall.
Name Function
C
Rear feet When the projector is set up on a surface such as a
desk, turn to extend and retract the feet to adjust the
horizontal tilt.
You can adjust the tilt within a range of ±5°. The rear
feet are detachable. You can extend the feet by
approximately 35 mm before they detach.
D
Screw holes (for the
cable cover)
The screw holes for securing the cable cover.
Make sure the cables have been passed through the
notch on the base of the cable cover before attaching
the cable cover.
E
Air intake vent Takes in air to cool the projector internally.
F
Security cable
attachment point
Pass the theft-prevention wire lock through here and
lock it in place.
G
Ceiling mount fixing
points (ELPMB67, 4
points)
Use these points to attach the optional ceiling mount
when installing the projector on a wall, or mounting
the projector from a ceiling.
gg Related Links
• "Installing the Safety Wire" p.17
Installing the Safety Wire
When you use the optional ceiling mount, you can install the safety wire to
prevent the projector from falling from the ceiling.
