Epson EB-PU2220B User Manual

Home Screen
51

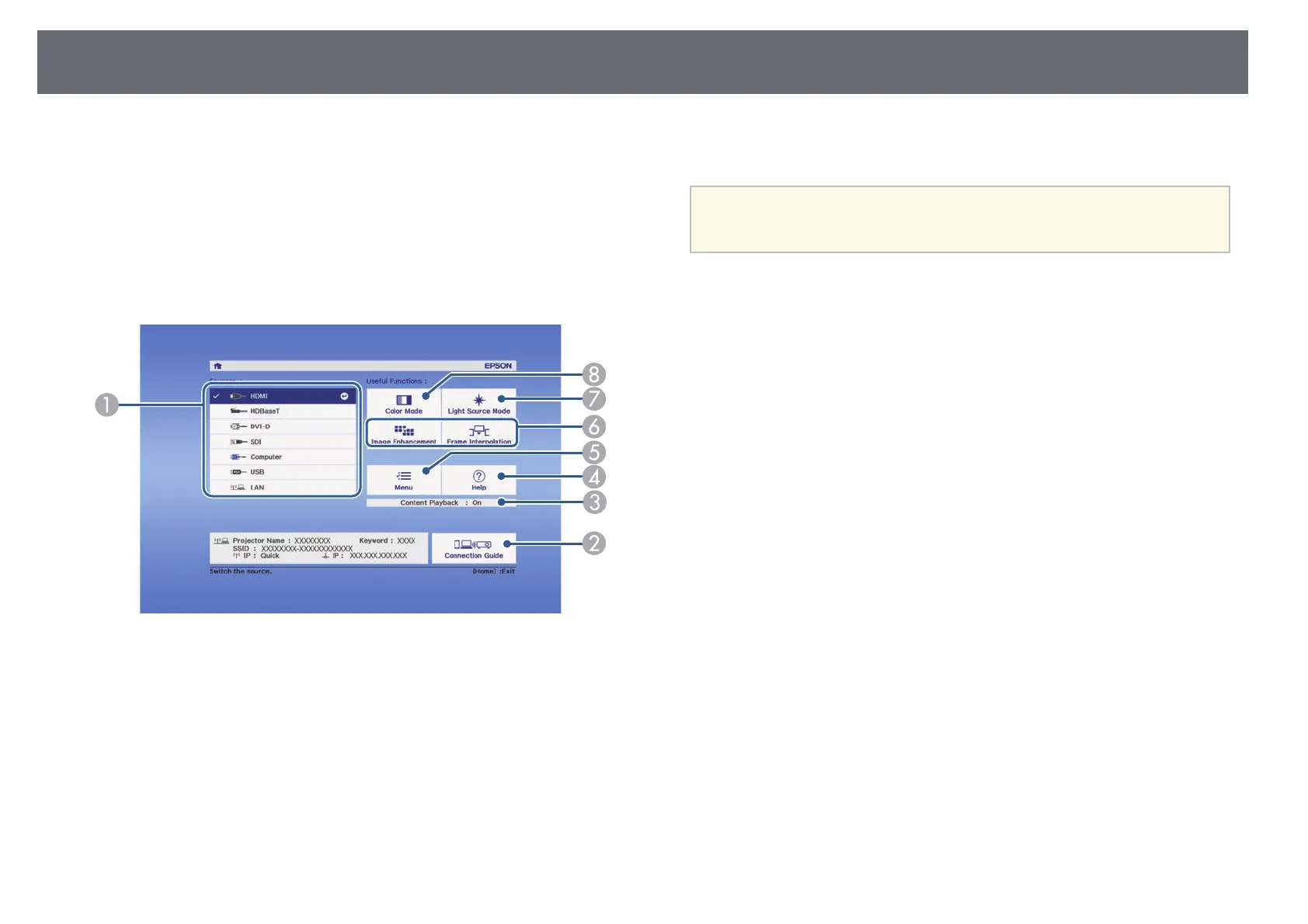

The Home screen feature allows you to easily select an image source and
access useful functions.
You can display the Home screen by pressing the [Home] button on the
remote control. If you want to display the Home screen when you turn on the
projector and no signal is being input, set Home Screen Auto Disp. to On.
s Extended > Home Screen > Home Screen Auto Disp.
Press the arrow buttons on the remote control to select a menu item, and then
press [Enter].
A
Selects the source you want to project.
B
Displays the Connection Guide. You can select the wireless connection methods
according to the devices you are using, such as smartphones or computers.
C
Indicates the projector is in Content Playback mode.
D
Displays the Help screen.
E
Displays the projector's menu.
F
Performs menu options assigned to Home Screen in the projector's Extended
menu.
G
Selects the brightness for the light source.
H
Changes the projector's color mode.
a
After 10 minutes of inactivity, the Home screen disappears and you are
returned to the screen that you were on before (the current input
source screen or no signal message).

Epson EB-PU2220B Specifications

General

Matrix type	3-panel (p-Si TFT active)
Number of colors	1.07 billion colors
Native aspect ratio	-
Projection technology	3LCD
Supported aspect ratios	4:3, 16:10, 16:9
Contrast ratio (typical)	2500000:1
Screen size compatibility	- \
Projector native resolution	WUXGA (1920x1200)
Keystone correction, vertical	±45 °
Keystone correction, horizontal	±30 °
Light source type	Laser
Service life of light source	20000 h
Focus	Auto
Throw ratio	1.57 – 2.56
Optical zoom	1.6 x
Focal length range	14.8 – 17.7 mm
Aperture range (F-F)	2 - 2.1
Interchangeable lens	Yes
Vertical lens shift range	-60 - 60 %
Horizontal lens shift range	-18 - 18 %
Number of optional lenses supported	9
Supported video modes	480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160i, 2160p
Supported graphics resolutions	640 x 480 (VGA), 720 x 576, 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 3840 x 2160, 4096 x 2160
HDMI connector type	Full-size
Serial interface type	RS-232C
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
USB 2.0 Type-A ports quantity	2
Noise level	45 dB
HDCP version	2.3
Projection modes	Ceiling, Front, Rear
Noise level (economic mode)	37 dB
Product type	Large venue projector
Product color	Black
Market positioning	Presentation
Cable lock slot type	Kensington
Power source	AC
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	2 W
Power consumption (typical)	1301 W
Power consumption (economy mode)	899 W
Operating temperature (T-T)	0 - 50 °C
Sustainability certificates	RoHS

Weight and Dimensions

Depth	493 mm
Width	587 mm
Height	218 mm
Weight	24400 g
