Epson EB-W06 Service Manual

EB-E01 series Disassembly and Assembly INTERNAL USE ONLY
SEIKO EPSON 102 Revision A
 EB-FH52/972/982W/992F/118, PL 119W
1. See Flowchart (p70) and remove all parts up to the component below from
the projector.
* EB-972/982W/118, PL 119W
Upper Case (Assy) (p80)
* EB-FH52/992F
WFD Board (p94)

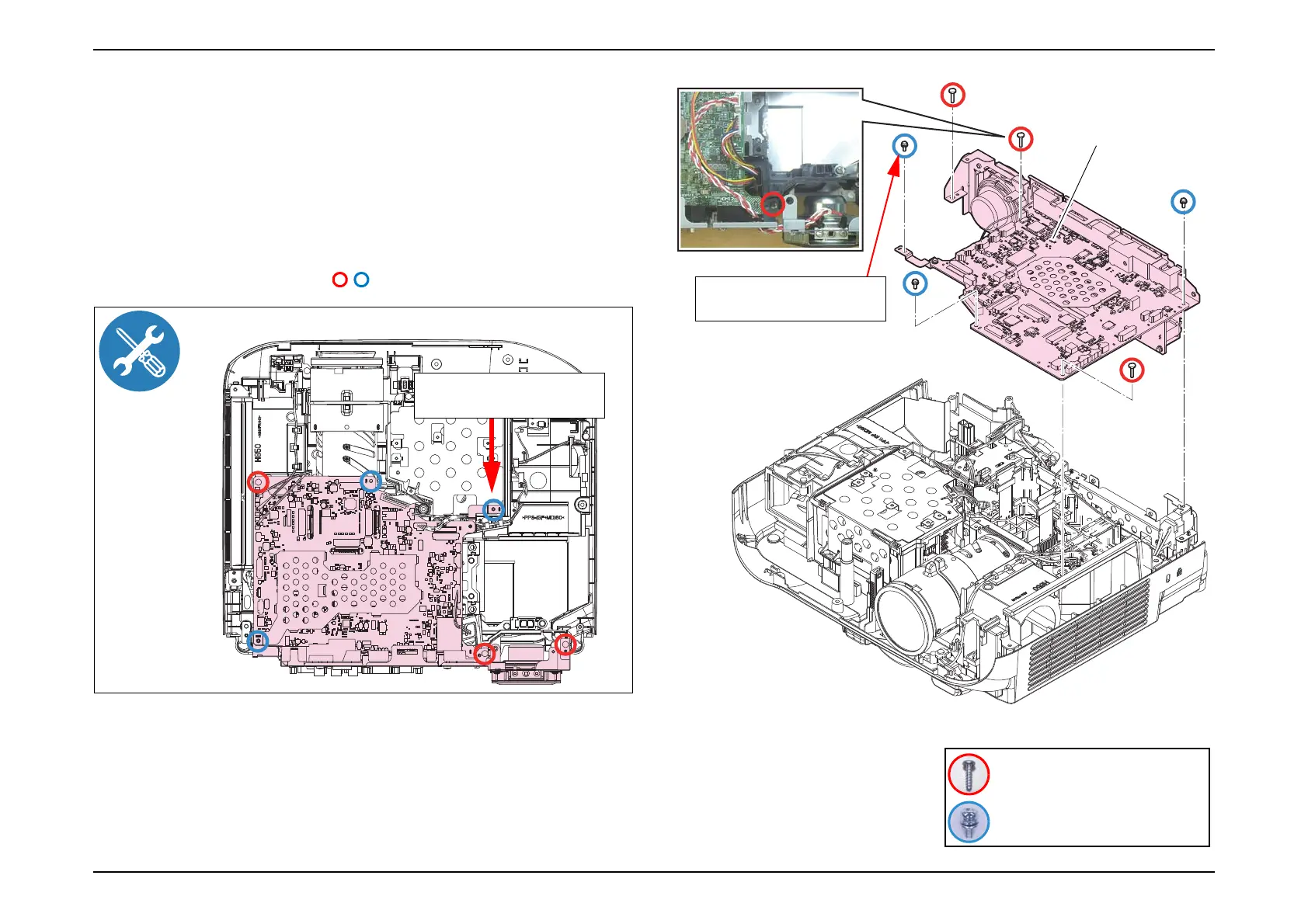

2. Disconnect the connectors from the "MA Board Assy".
3. Remove the five (six) screws ( / ), and remove the "MA Board Assy".
Screws
EB-FH52/99F only:
This screw has been removed
MA Board Assy
C.P.(S-P1)SCREW,2.5X6,F/ZN-3C
C.B.P-TITE SCREW,2.5X10,F/ZN-3C
EB-FH52/99F only:
This screw has been removed

Epson EB-W06 Specifications

General

Contrast Ratio	16, 000:1
Weight	2.5 kg
Projection System	3LCD
Aspect Ratio	16:10
Projection Ratio	1.30 - 1.56:1
Screen Size	33 inches - 320 inches
Projection Lens F Number	1.49 - 1.72
Projection Lens Focal Length	16.9 - 20.28 mm
Projection Lens Focus	Manual
Security	Kensington lock, Password protection
3D	No
Resolution	WXGA (1280 x 800)
Brightness	3700 lumens
Lamp Life	12000 hours (Eco)
Keystone Correction	Vertical: ±30 degrees, Horizontal: ±30 degrees
Connectivity	HDMI, VGA, USB
LCD Panel	0.59-inch with MLA (D10)
Lamp	UHE, 210 W
Zoom	Factor: 1.2
Noise Level	37 dB (Normal)
Dimensions	302 x 237 x 82 mm (Width x Depth x Height)
Power Consumption	0.3 W (Standby)
