EB-E01 series Disassembly and Assembly INTERNAL USE ONLY
SEIKO EPSON 103 Revision A
 EB-E20/X49/W49/FH06, EH-TW740/TW750
1. See Flowchart (p70) and remove all parts up to the component below from
the projector.
* EB-E20/X49/W49/FH06, EH-TW740
Upper Case (Assy) (p80)
* EH-TW750
WFD Board (p94)

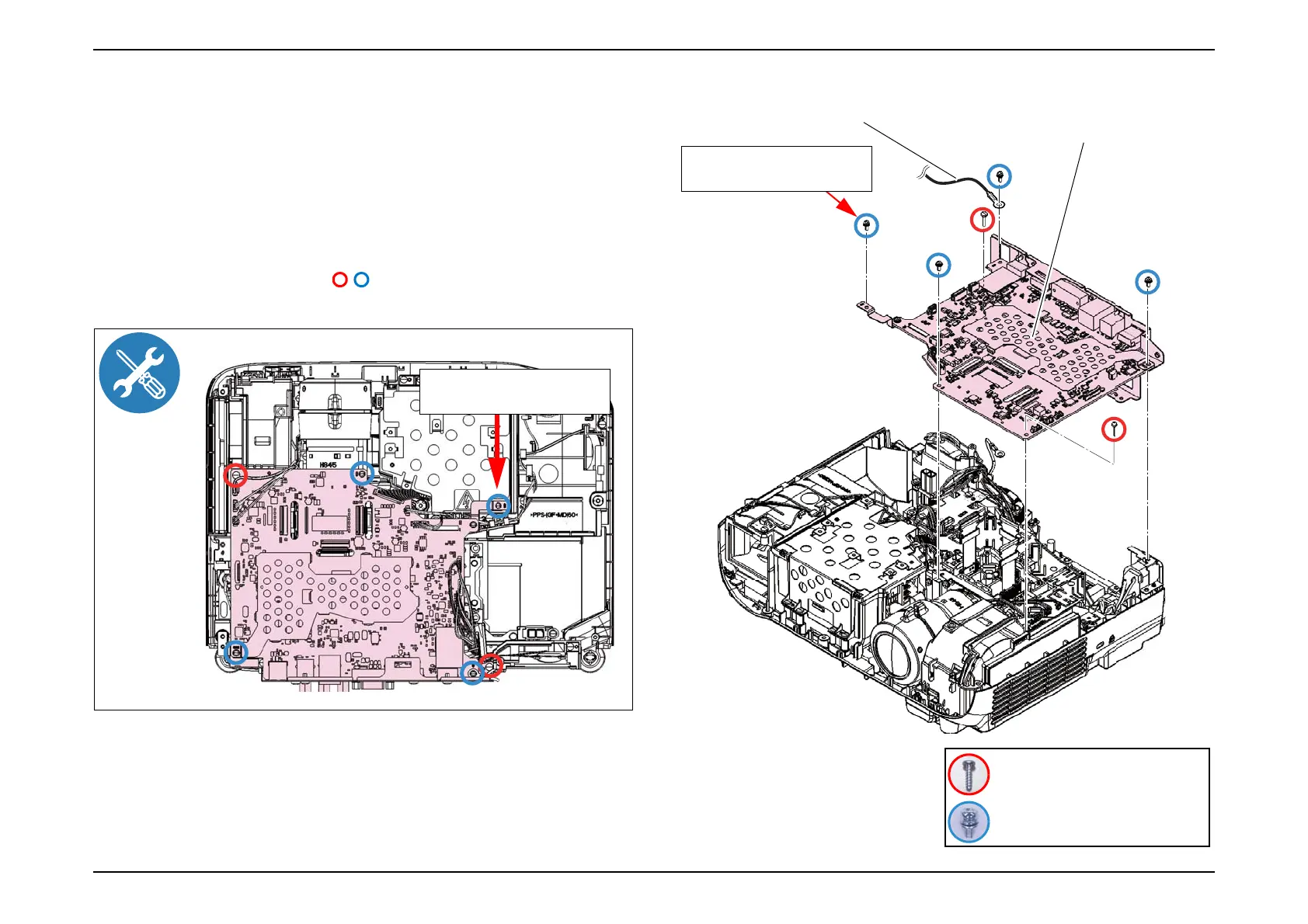

2. Disconnect the connectors from the "MA Board Assy".
3. Remove the five (six) screws ( / ), and remove the "GND Cable" and
the "MA Board Assy".
Screws
EH-TW750 only:
This screw has been removed
MA Board Assy
GND Cable
C.P.(S-P1)SCREW,2.5X6,F/ZN-3C
C.B.P-TITE SCREW,2.5X10,F/ZN-3C
EH-TW750 only:
This screw has been removed
