Epson EB-W06 Service Manual

EB-E01 series Troubleshooting INTERNAL USE ONLY
SEIKO EPSON 41 Revision A
AUTO IRIS ERROR/POWER SUPPLY (BALLAST) ERROR
LAMP ERROR

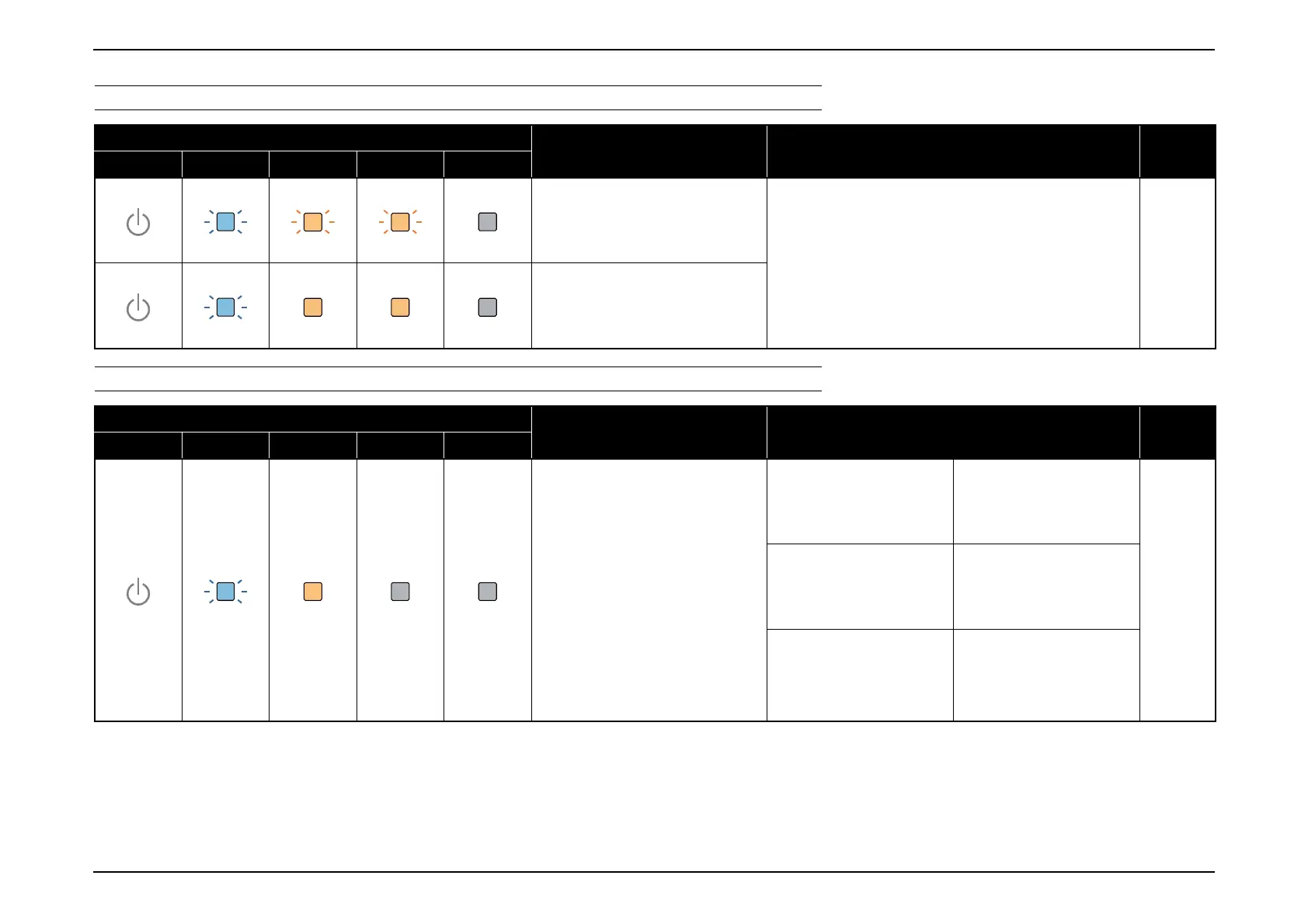

LED Status
Corresponding error name Remedy Reference
Power Status Lamp Temp Wireless LAN
Auto Iris: Auto Iris Error
If the same error occurs after turning the power back on, check
the error name and carry out the remedy referring to the reference
on the right column.
P.45
Ballast: Power Supply (Ballast) Error
LED Status
Corresponding error name Remedy Reference
Power Status Lamp Temp Wireless LAN
 Cover Open: Lamp Cover open Error
 Lamp: Lamp Error
 Lamp On: Lamp Lit Error
 Lamp Off: Lamp Failure
Check if the Lamp Cover is
installed correctly.
If not, reinstall the Lamp Cover
correctly.
P.43
Check if the Lamp is installed
correctly.
If not, reinstall the Lamp Cover
correctly.
Take out the lamp and check if
the Lamp is cracked or
damaged.
If the Lamp is not broken,
reinstall it and turn the power
back on. If the error recurs,
replace the Lamp with a new
one.

Epson EB-W06 Specifications

General

Contrast Ratio	16, 000:1
Weight	2.5 kg
Projection System	3LCD
Aspect Ratio	16:10
Projection Ratio	1.30 - 1.56:1
Screen Size	33 inches - 320 inches
Projection Lens F Number	1.49 - 1.72
Projection Lens Focal Length	16.9 - 20.28 mm
Projection Lens Focus	Manual
Security	Kensington lock, Password protection
3D	No
Resolution	WXGA (1280 x 800)
Brightness	3700 lumens
Lamp Life	12000 hours (Eco)
Keystone Correction	Vertical: ±30 degrees, Horizontal: ±30 degrees
Connectivity	HDMI, VGA, USB
LCD Panel	0.59-inch with MLA (D10)
Lamp	UHE, 210 W
Zoom	Factor: 1.2
Noise Level	37 dB (Normal)
Dimensions	302 x 237 x 82 mm (Width x Depth x Height)
Power Consumption	0.3 W (Standby)
