Epson EB-W06 Service Manual

EB-E01 series Disassembly and Assembly INTERNAL USE ONLY
SEIKO EPSON 99 Revision A

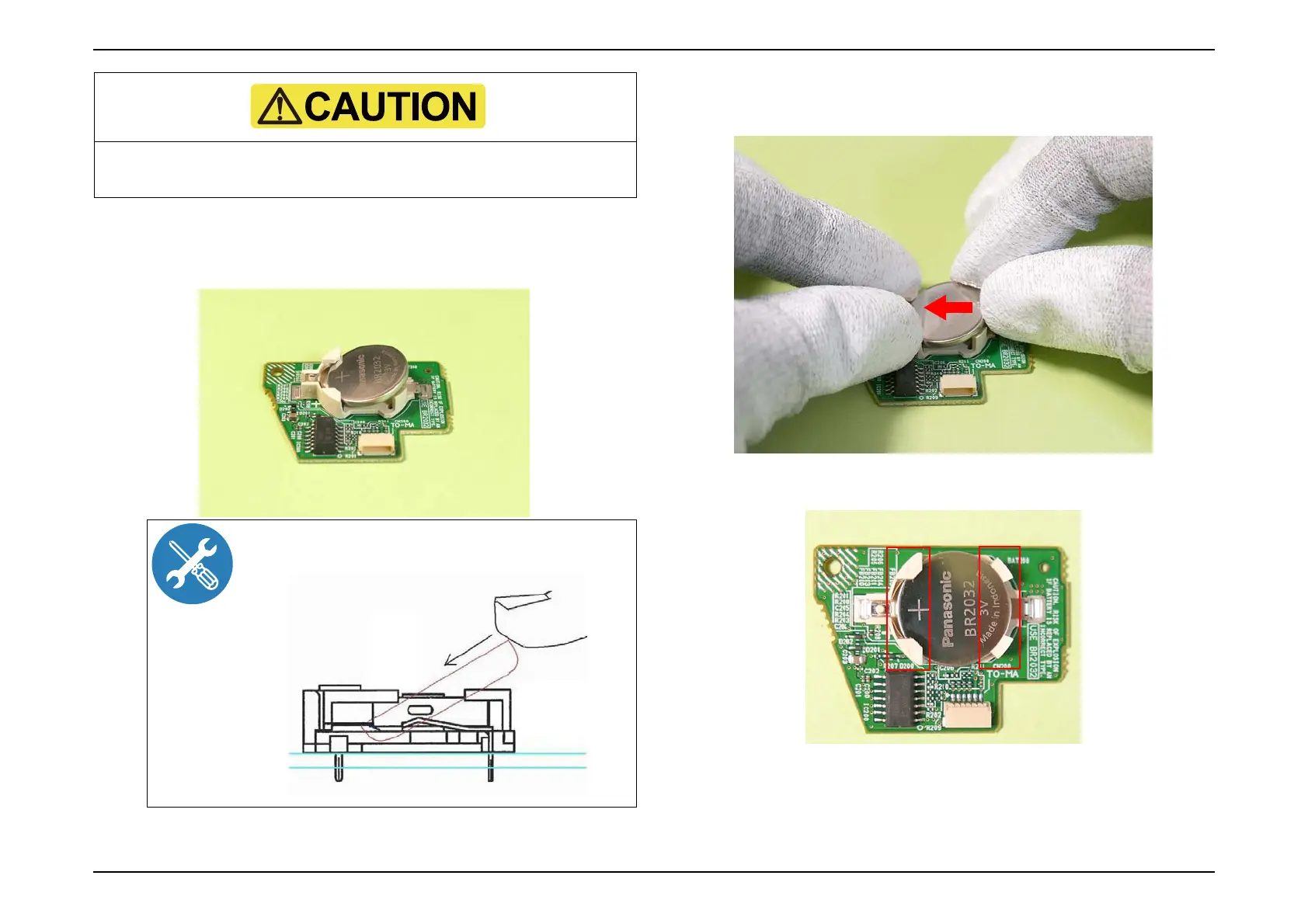

 Lithium Battery fitting procedure
1. Place the circuit board in advance on an insulated stand that is not
arched.
2. Fix the circuit board with both hands in a flat position, and insert the
Lithium Battery in the direction of the arrow by maintaining the
correct angle of insertion.
3. Check that the Lithium Battery is secured by the locking tabs as shown
in the following photo.
Used Lithium Battery should be treated or disposed of in the prescribed
manner.
Ensure that the Lithium Battery is inserted by
maintaining the correct angle as shown below.

Epson EB-W06 Specifications

General

Contrast Ratio	16, 000:1
Weight	2.5 kg
Projection System	3LCD
Aspect Ratio	16:10
Projection Ratio	1.30 - 1.56:1
Screen Size	33 inches - 320 inches
Projection Lens F Number	1.49 - 1.72
Projection Lens Focal Length	16.9 - 20.28 mm
Projection Lens Focus	Manual
Security	Kensington lock, Password protection
3D	No
Resolution	WXGA (1280 x 800)
Brightness	3700 lumens
Lamp Life	12000 hours (Eco)
Keystone Correction	Vertical: ±30 degrees, Horizontal: ±30 degrees
Connectivity	HDMI, VGA, USB
LCD Panel	0.59-inch with MLA (D10)
Lamp	UHE, 210 W
Zoom	Factor: 1.2
Noise Level	37 dB (Normal)
Dimensions	302 x 237 x 82 mm (Width x Depth x Height)
Power Consumption	0.3 W (Standby)
