4.2.16 Removing the LMP Intake Duct, Lamp Fan, and Lamp Fan Guard
1. Remove the two screws (C.B.P-TITE SCREW, 3x10, F/ZB-3C) that secure the LMP Intake
Duct, and remove the LMP Intake Duct.
2. Remove the two screws (C.B.P-TITE SCREW, 3x25, F/ZN-3C) that secure the Lamp Fan,
and remove the Lamp Fan from the LMP Intake Duct.
3. Remove the Lamp Fan Guard from the LMP Intake Duct.

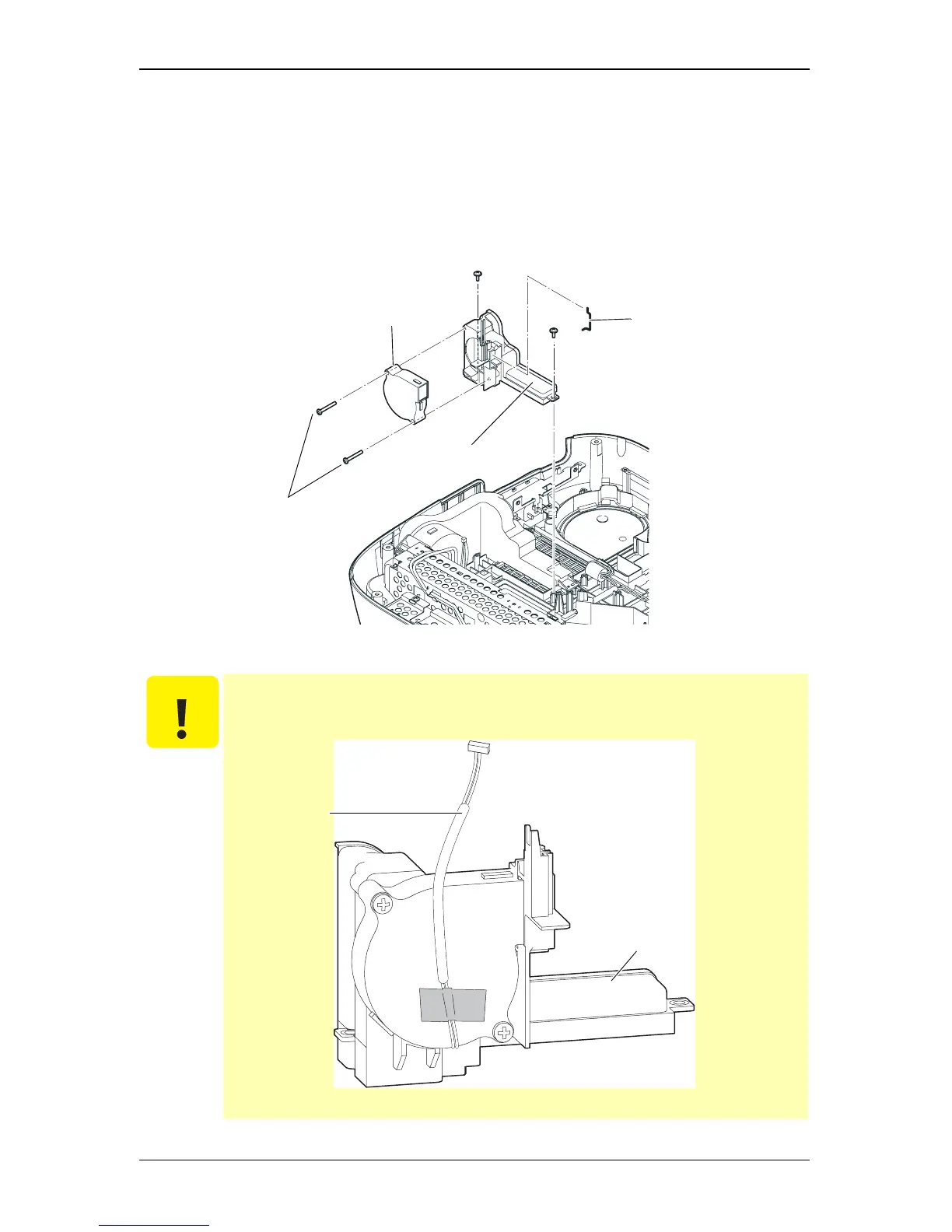

Figure 4-40.
C A U T I O N
 When installing the LMP Intake Duct, be sure to secure the Lamp Fan Cable
with heat-resistant tape as shown in Figure 4-41.
Figure 4-41.
Fan Guard, Lamp Fan
Fan, Lamp
C.B.P-TITE SCREW, 3x25, F/ZN-3C
Duct, Intake, LMP
LMP Intake Duct
Lamp Fan Cable
