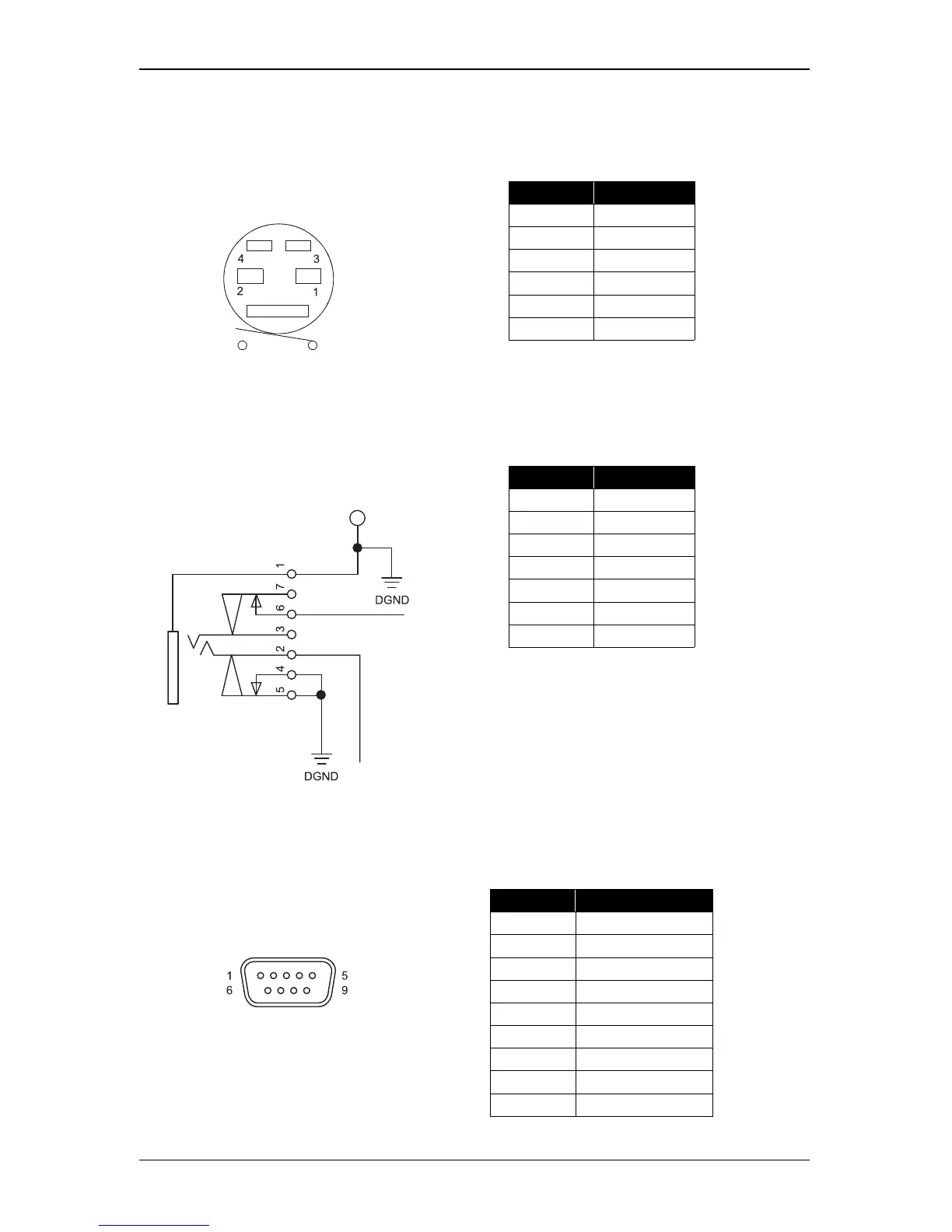

1.4.6 S-Video Interface
 4-pin mini-DIN with detect pin
1.4.7 Trigger out
 3.5 Mini jack
1.4.8 RS-232C
 D-Sub, 9pin
CN3001
TCS7708-012021
Pin No. Signal Name
1GND
2GND
3 Y signal input
4 C signal input
5DET
6GND
J3001
HTJ-035-18ABT
Pin No. Signal Name
1GND
2 +12V
3 (Not in use)
4GND
5GND
6GND
7 (Not in use)
CN3000
JES-9P-4A3F LEAD
Pin No. Signal Name
1CD
2 RXD (Receive Data)
3 TXD (Transmit Data)
4DTR
5GND
6DSR
7 RTS (Request To Send)
8 CTS (Clear To Send)
9RI
